Manufacturer part #: RF54101
Technical Description

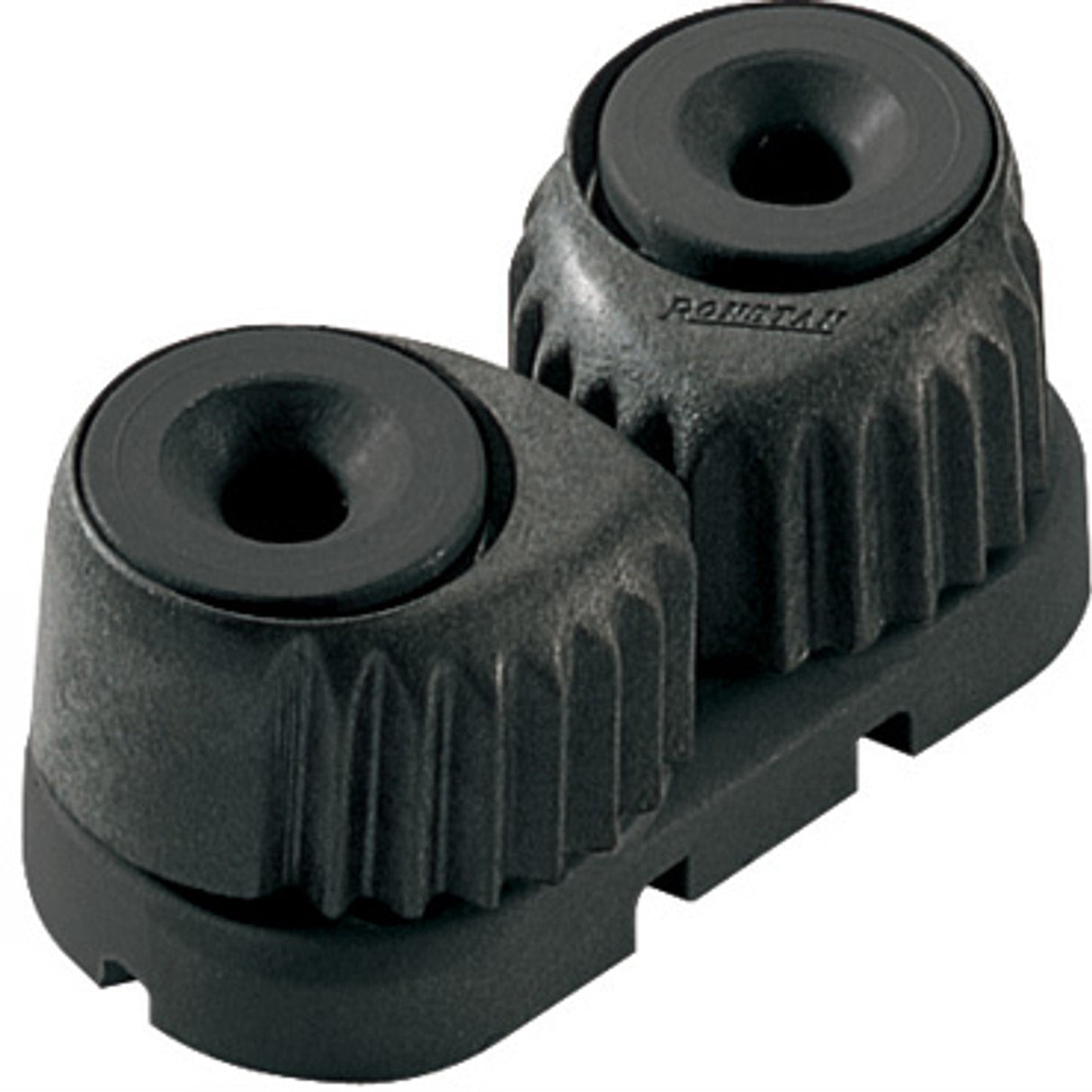

Medium 'C-Cleat' Cam Cleat
1/8 in - 1/2 in
3 mm - 12 mm
1 in
26 mm
1 1/4 in
31 mm
2 5/8 in
66 mm
3/16 in
M5 mm
1 1/2 in
38 mm
275 lb
125 kg
550 lb
250 kg
1.8 oz
50 g
Manufacturer part #: RF5410

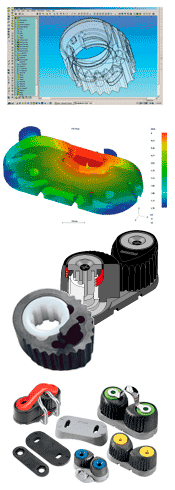

Design, materials selection and advanced manufacturing methods combine to deliver superior strength and holding power, light weight and corrosion resistanceCam profile and mult-coil spring minimise line entry and release effortCarbon fibre compoasite cam material provides maximum resistance to heat and abrasionUnique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads Intensive development efforts have produced this range of cleats that provide unbeatable holding power, yet are designed for easy cleating and releasing of control lines in every application and load condition. Through the use of advanced composites, these cleats achieve superior performance while overcoming the limitations of metal alloys.
Ronstan cam cleats are strong, light and corrosion free. The unique tooth profile and cam geometry are designed to grip without damaging the rope. A multi-coil spring recessed in the upper part of the cam generates near constant torque. This constant torque ensures secure cleating of even the smallest lines with minimal abrasion or rope wear and low line entry and exit efforts. The lightweight ultra rigid carbon fibre composite cams of the c-cleat are corrosion free, suffer virtually no tooth wear and are non rope abrasive.
ApplicationsRange of cleats for all requirements including control lines, jib sheet and mainsheet cleatingMaterialsCarbon fibre composite camsLong strand glass fibre reinforced polymer basePTFE impregnated Acetal slotted bearingStainless steel multi-coil spring
