Schaefer System 2100, No Sta-Lok, 5/8"(16mm) Pin

Manufacturer part #: 2100-55 Furler

Model	Sta-Lok	Boat Size	Wire Ø	Pin Ø	Rod Size	Sta-Lok Length	System Length
2100-01	Yes	30 ft - 42 ft 9.1 m - 12.8 m	1/4 in 6 mm	1/2 in 13 mm	-8 5.72 mm	2 9/16 in 65 mm	49 ft 3 in 15 m
2100-44	No	30 ft - 42 ft 9.1 m - 12.8 m	1/4 in 6 mm	1/2 in 13 mm	-8 5.72 mm	-	49 ft 3 in 15 m
2100-02	Yes	30 ft - 42 ft 9.1 m - 12.8 m	9/32 in 7 mm	1/2 in 13 mm	-10 6.35 mm	3 in 76 mm	49 ft 3 in 15 m
2100-03	Yes	30 ft - 42 ft 9.1 m - 12.8 m	5/16 in 8 mm	5/8 in 16 mm	-12 7.14 mm	3 1/4 in 83 mm	49 ft 3 in 15 m
2100-55	No	30 ft - 42 ft 9.1 m - 12.8 m	5/16 in 8 mm	5/8 in 16 mm	-12 7.14 mm	-	49 ft 3 in 15 m
2100-04	Yes	30 ft - 42 ft 9.1 m - 12.8 m	3/8 in 10 mm	5/8 in 16 mm	-17 8.38 mm	3 3/4 in 95 mm	49 ft 3 in 15 m

Manufacturer part #: 2100-55 Furler

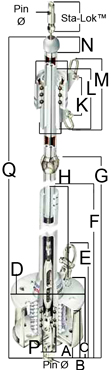

	Features	American	Metric
	Description	System 2100
	A	3 3/4 in	95 mm
	B	8 5/8 in	219 mm
	C	10 in	254 mm
	D	8 1/4 in	210 mm
	E	13 in	330 mm
	F	29 5/8 in	752 mm
	G	50 in	1.27 m
	H	1 1/2 in	38 mm
	I	2 1/2 in	64 mm
	J	3 11/16 in	94 mm
	K	4 3/8 in	111 mm
	L	6 1/4 in	159 mm
	M	7 1/4 in	184 mm
	N	1 1/4 in	32 mm
	O	49 ft 3 in	15 m
	P	2 in	51 mm

Manufacturer part #: 2100-55 Furler

All Schaefer furling systems are easily adaptable to rod headstays. Extrusions can be installed after rod is shortened and re-headed.

Boat sizes are approximate for typical wire/pin combinations

Wire size and pin diameter are critical sizing/ordering dimensions

All Schaefer Furlers are easily adaptable to wire or rod headstays

Additional extrusions may be ordered for custom length systems

Custom Sta-Lok™ and base toggle/link combinations available
