Manufacturer part #: 406-001-01R
(*) Safe working load based on cam cleat 433-201-01.
Manufacturer part #: 406-001-01R
Features
Acetal sheave Stainless steel strap for best strength and longer service life Stiff glass fibre reinforced cheeks to prevent lines from wedging Glass fibre reinforced composite Sliding swivel locking mechanism Quick Lock Features
Spring loaded arm for precise and reliable locking operation. The spring holds the arm in open or closed positions The Quick Lock function is intended for temporary use only, and does not replace a normal clutch or a cleat Acetal sheave (PBB 60) Torsionally rigid cheeks in glass fibre filled composite prevent jamming of the line Radial loads are absorbed by a stainless strap inside the cheeks. A safety feature quite typical for Seldén products
| Features | American | Metric |
|---|---|---|

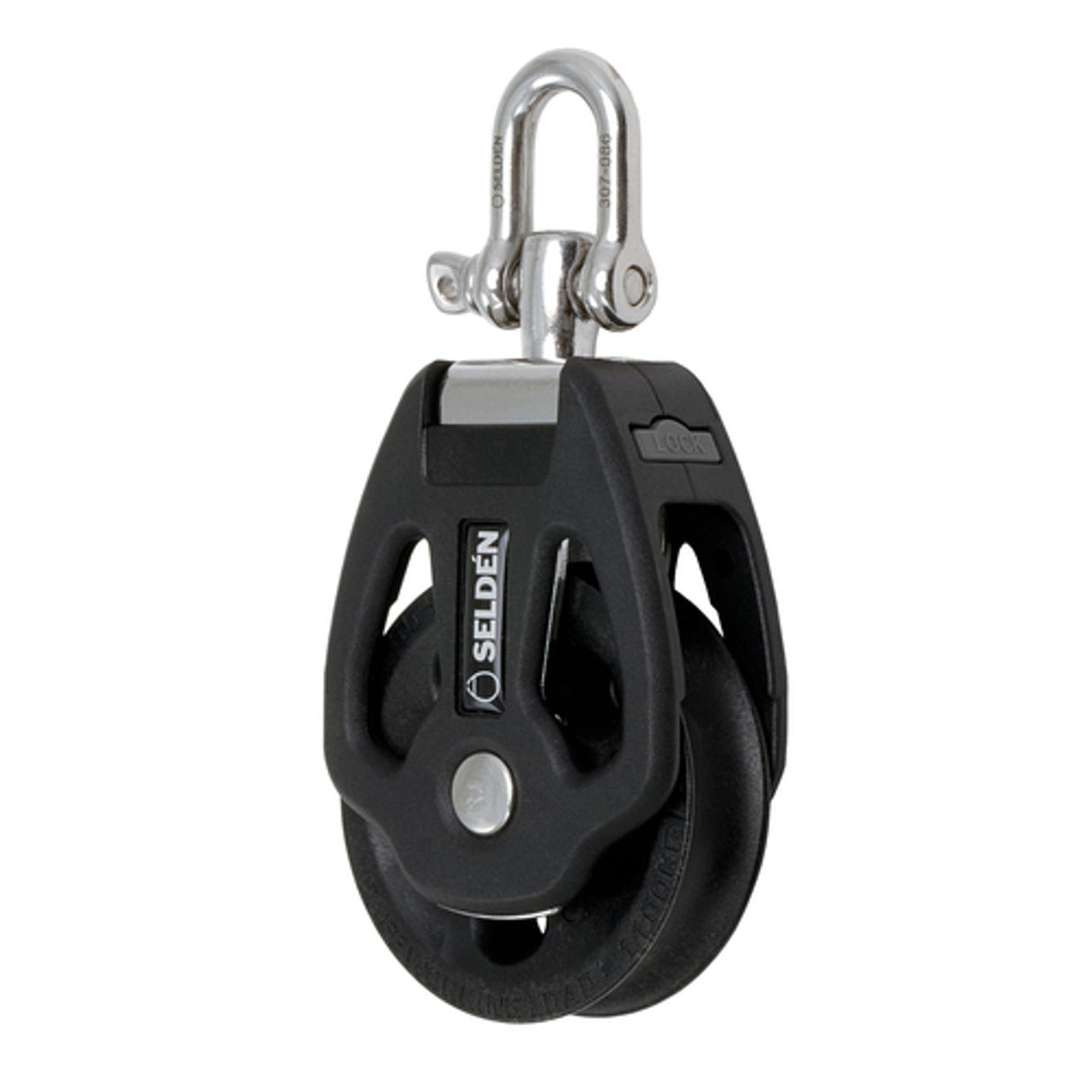

| Description | Plain Bearing Single Block 60 | |
| Max Line Size | 9/16 in | 14 mm |
| Weight | 6.6 oz | 189 g |
| Safe Working Load (*) | 2425 lb | 1100 k |
| Breaking Load | 4850 lb | 2200 kg |
| Shackle Ø | 6 mm | |
