Manufacturer part #: 2625.HTE
Technical Description
Single
2 1/4 in
57 mm
4 1/16 in
103 mm
3.7 oz
104 g
3/16 in
5 mm
3/8 in
10 mm
500 lb
227 kg
2000 lb
907 kg
50 lb = 10:1
23 kg = 10:1
Manufacturer part #: 2625.HTE

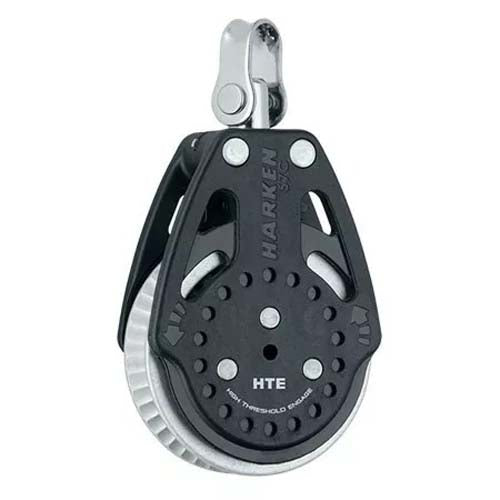

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings and asymmetrical spinnakers free instantly during jibes.
Ratchet engagement may be adjusted to a higher or lower load according to strength and sailing style. The Ratchamatic® cheek block mounts on either port or starboard. The holding power of the 57 mm is as high as 10:1.
For the ultimate system, mount a Ratchamatic® on the boom above a cockpit-mounted switchable ratchet to allow the mainsheet to run freely in light air and to double holding power in heavy air.
Use for:
The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings and asymmetrical spinnakers free instantly during jibes.
Ratchet engagement may be adjusted to a higher or lower load according to strength and sailing style. The Ratchamatic® cheek block mounts on either port or starboard. The holding power of the 57 mm is as high as 10:1.
For the ultimate system, mount a Ratchamatic® on the boom above a cockpit-mounted switchable ratchet to allow the mainsheet to run freely in light air and to double holding power in heavy air.
Use for:
- Main/Jib Sheets
- Asymmetric spinnakers
