Manufacturer part #: 2660
Technical Description
Single/Swivel
2 15/16 in
75 mm
5 3/8 in
137 mm
6.9 oz
195 g
-
6 mm
9/16 in
14 mm
1213 lb
550 kg
3638 lb
1650 kg

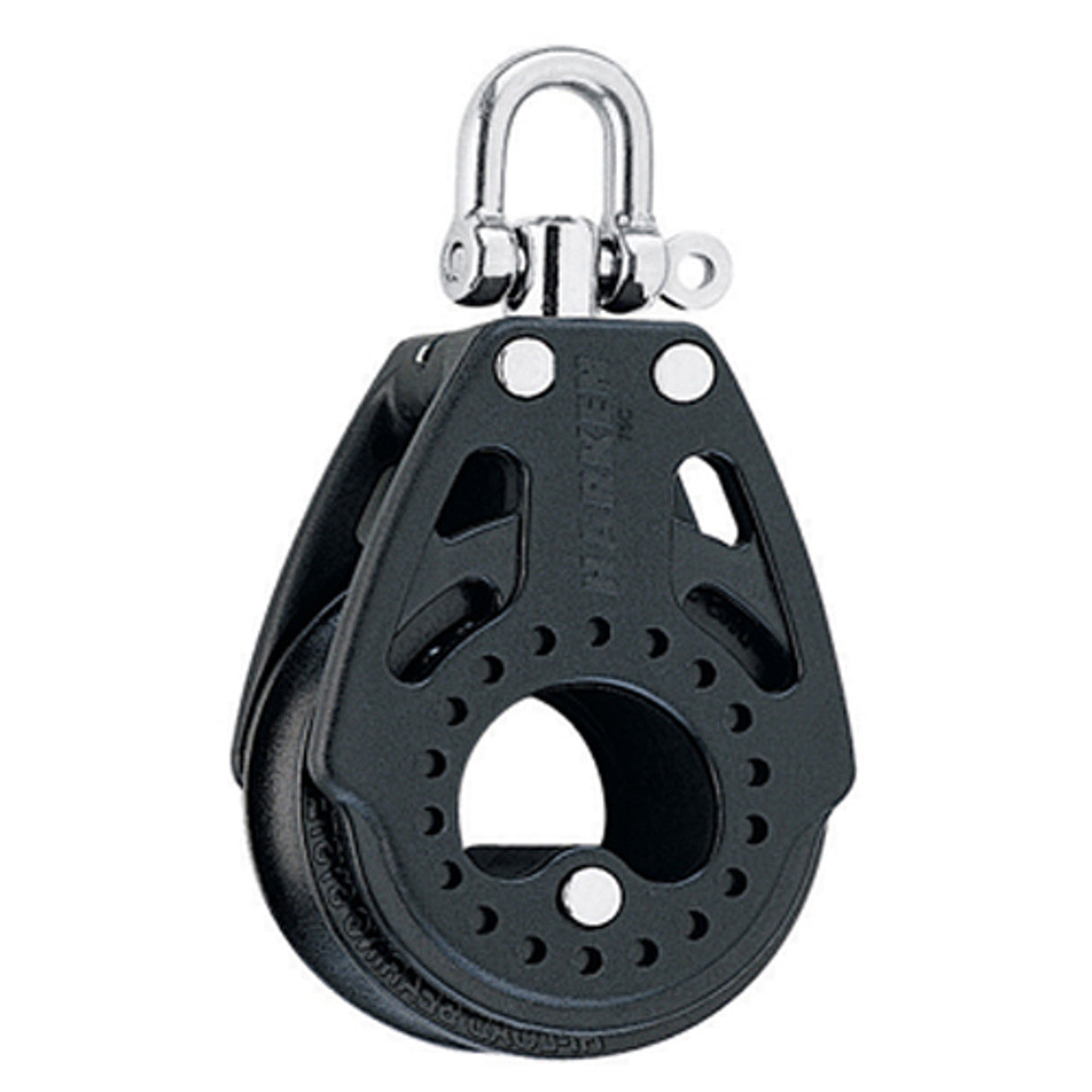

Carbo AirBlocks® are 60% stronger and 30% lighter than our Classic blocks.
The nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.
The 75 mm Carbo has a safe working load of 1200 lbs (500 kg). It releases easily under load and is perfect for mainsheet systems on sport boats like the Melges 24, J/105, and Henderson 30.
Use for: Main/jib sheets Mainsheet fine-tune Control lines Vangs Cunninghams Outhauls
The nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting.
The 75 mm Carbo has a safe working load of 1200 lbs (500 kg). It releases easily under load and is perfect for mainsheet systems on sport boats like the Melges 24, J/105, and Henderson 30.
Use for:
