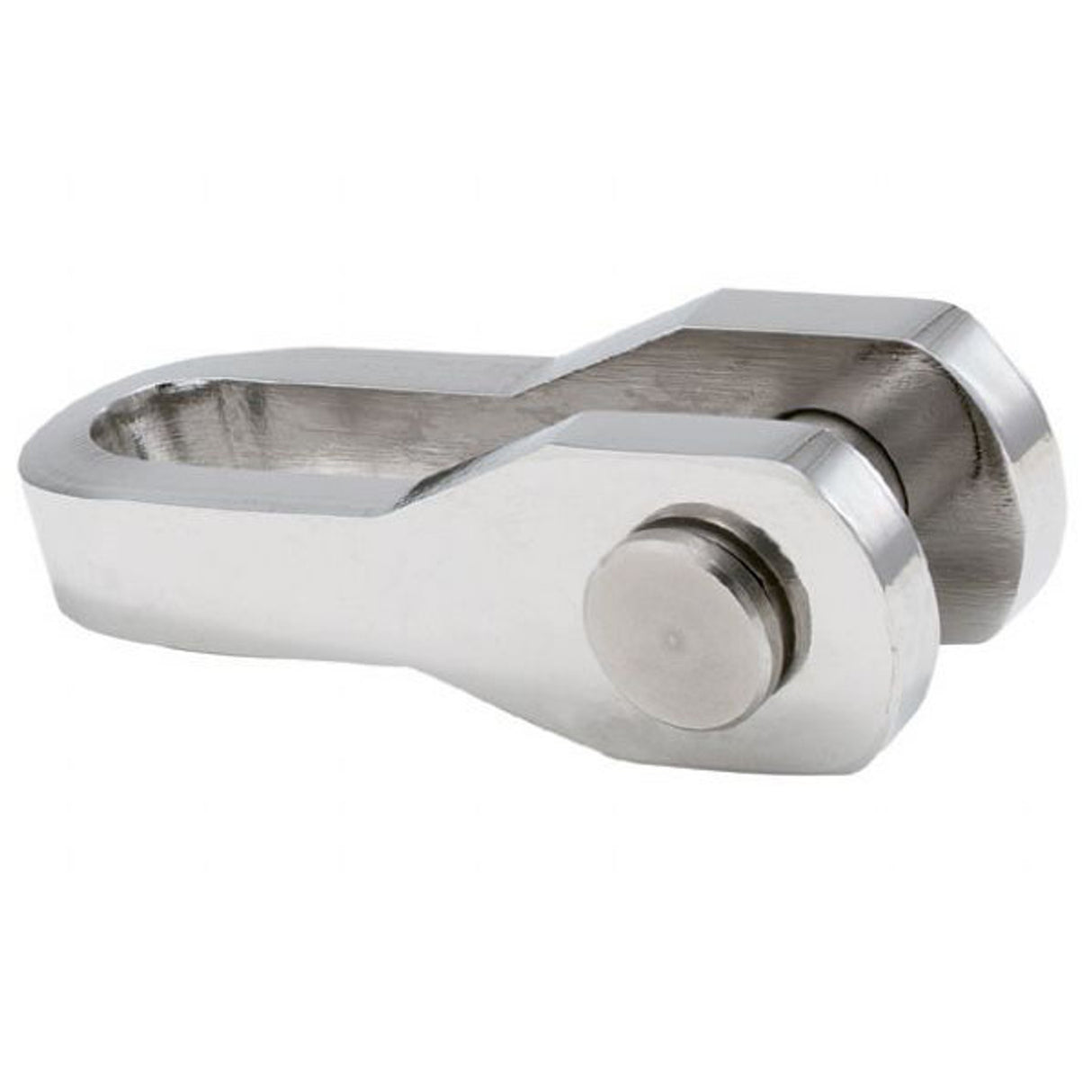

Manufacturer part #: J100-1616
Manufacturer part #: J100-1616
Navtec toggles release fatigue stress and assist in allowing the load forces to align with the shroud angle.
| Features | American | Metric | Description | J100 Toggle |
|---|---|---|
| Rod Size | -8 / -10 | |
| Pin | 0.500 in | 12.70 mm |
| A | 0.495 in | 12.57 mm |
| B | 0.48 in | 12.2 mm |
| C | 0.50 in | 12.7 mm |
| D | 1.17 in | 29.7 mm |
| E | 0.63 in | 16 mm |
| F | 2.20 in | 55.9 mm |
 | ||
Manufacturer part #: J100-1616
Navtec toggles release fatigue stress and assist in allowing the load forces to align with the shroud angle.
