Manufacturer part #: Endura Braid 6mm
| Diameter | Weight | Tensile | |||
|---|---|---|---|---|---|
| American | Metric | lbs./100 ft. | g/m | American | Metric |
| 1/4" | 6 mm | 1.8 lb | 816 g | 4,500 lb | 2,041 kg |
| 5/16" | 8 mm | 2.7 lb | 1224 g | 8,100 lb | 3,680 kg |
| 3/8" | 10 mm | 4.5 lb | 2041 g | 11,000 lb | 4,995 kg |
| 7/16" | 11 mm | 5.5 lb | 2494 g | 14,900 lb | 6,765 kg |
Manufacturer part #: Endura Braid 6mm

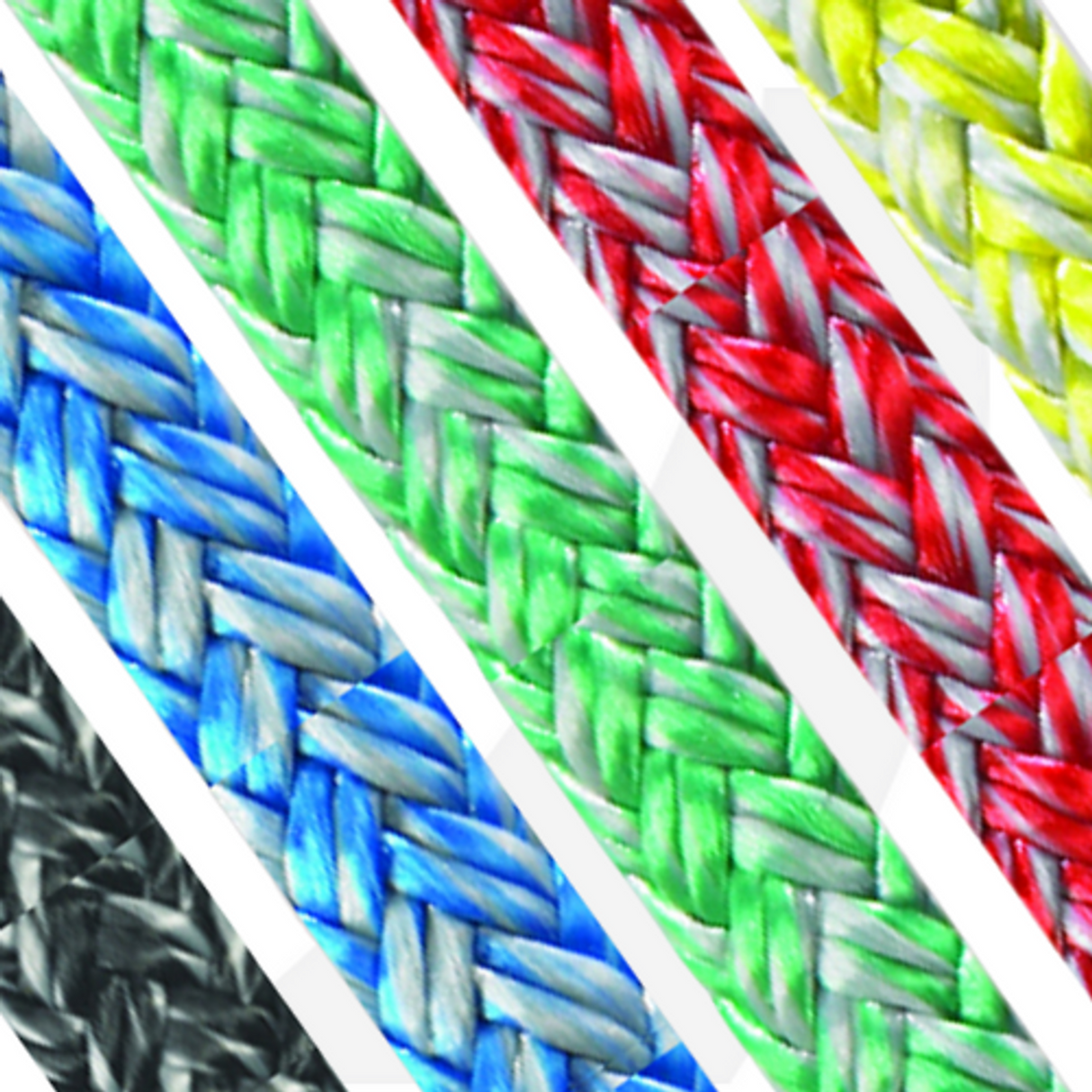

Endura Braid Euro Style features a Dyneema 12-strand core. It will not compress in cleats or clutches and feels good in hands.
Excellent flexibility, torque-free, superb handling double braid with HTS 78 core and proprietary coating that splices and tapers easily.
Features
- Excellent strength-to-size ratio
- Ultra low elongation
- Excellent wet/dry strength retention
Applications
- Sheets
- Halyards
- Guys
- Topping lifts
- Reef Lines
- Low-stretch control lines
Sunlight/Uv: Very little degradation from sunlight. Can be used outside over long term if inspected regularly.
Chemicals: Polyester has good resistance to most chemicals except 95% sulfuric acid and strong alkalines at boil. HMPE has good resistance to most minerals, organics, acids, and weak alkalines. HMPE also has excellent resistance to bleaches and other oxidizing agents and to most solvents.
Heat: Polyester melts at 480Ì´åÁF with progressive strength loss above 300Ì´åÁF. HMPE melts at 300Ì´åÁF with progressive strength loss above 150Ì´åÁF.
Dielectrics: Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.
Sheaves: Recommended sheave diameter to rope diameter is 8:1.
Working Loads: No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks.
The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor.
The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.
Manufacturer part #: Endura Braid 11mm
NER Core to Core Eye Splice.pdf
