Deck organiser - Pad-FrD 14
| Technical Description | |||||||
| Product Name | Breaking Load | Ø A | Ø B | Ø C | Ø D | Ø Recomended Rope | Weight |
| Pad SX | gluing 200 kg | ||||||
| Ring Duralumin | mm | mm | mm | mm | Halyard / Sheet | gr | |
| FrD 10 | 7 | 12 | 12 | 30 | 8 mm max. | 8 | |
| FrD 14 | 10 | 16 | 16 | 40 | 12 mm max. | 16 | |

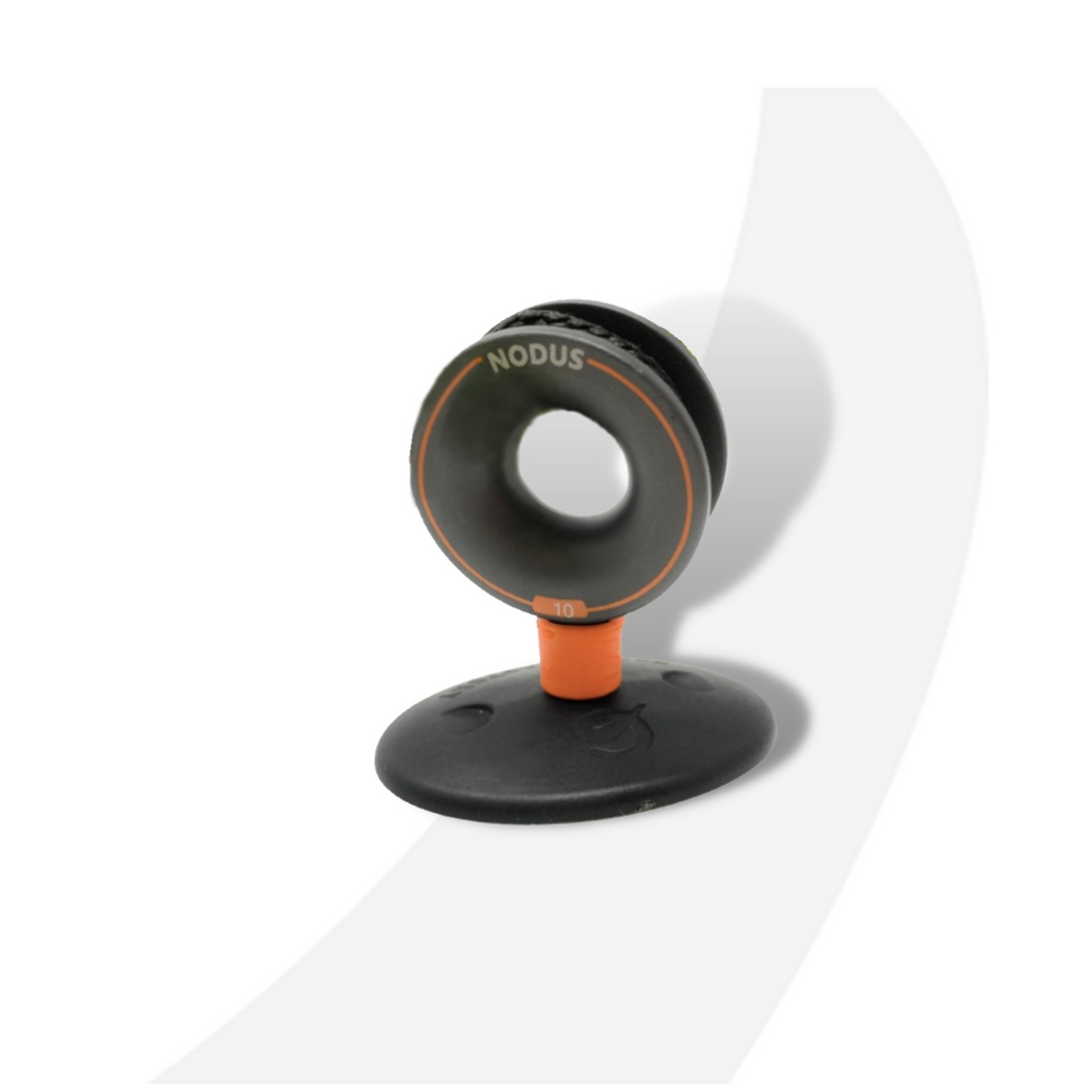

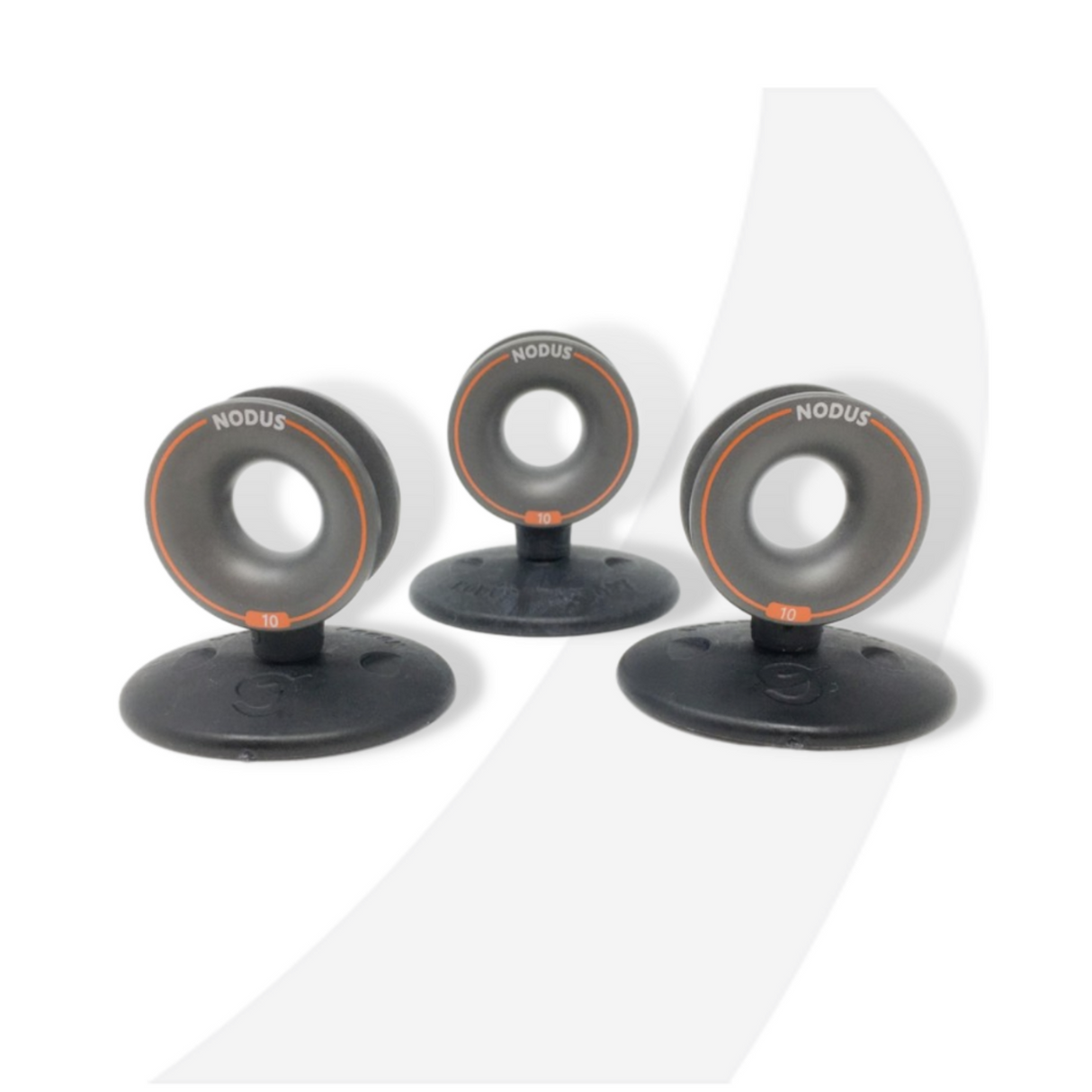

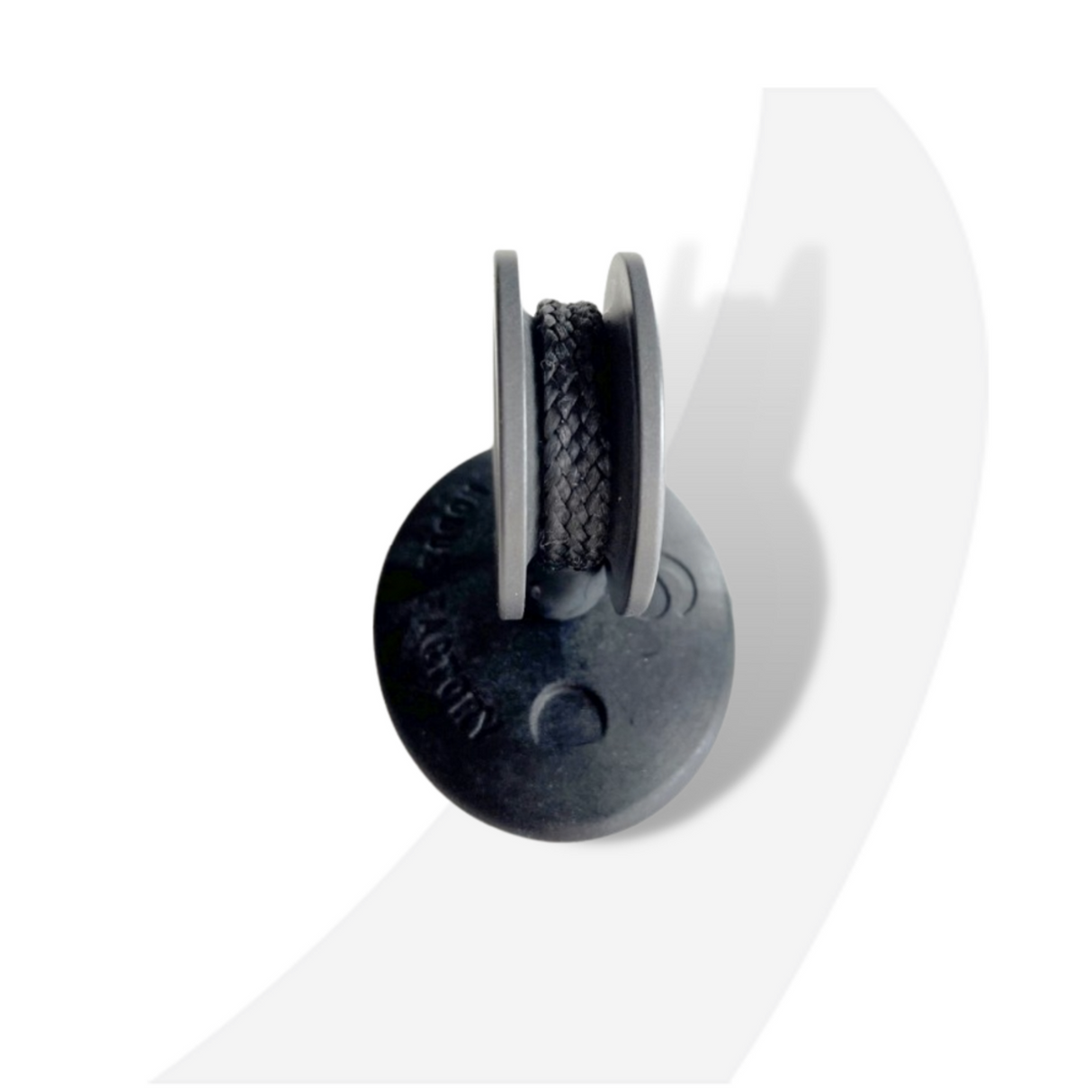

Pad FrD®, textile padlock / trigger guard with Duralumin friction ring.
Easy, fast and very simple to install, your Pad-FrD®, will support up to 200 kg (without screws) once fixed with Nodus-Loc® bi-component glue.
Its oval shape allows the Pad-FrD® to be installed in an optimal way according to the angle and the direction of the load.
- Multi-purpose textile chainplate and FrD® friction ring perfect for organizing sheets, lines, etc.
- Easily installed anywhere on deck, mast or boom
Advantages
- Ready to use product
- Easy to install, thanks to our bi-component adhesive
- Optimized ergonomics, no protruding or aggressive parts
- Versatility and flexibility whatever the angle of traction
- Reliable and maintenance free
