Manufacturer part #: RF20101HL
Technical Description

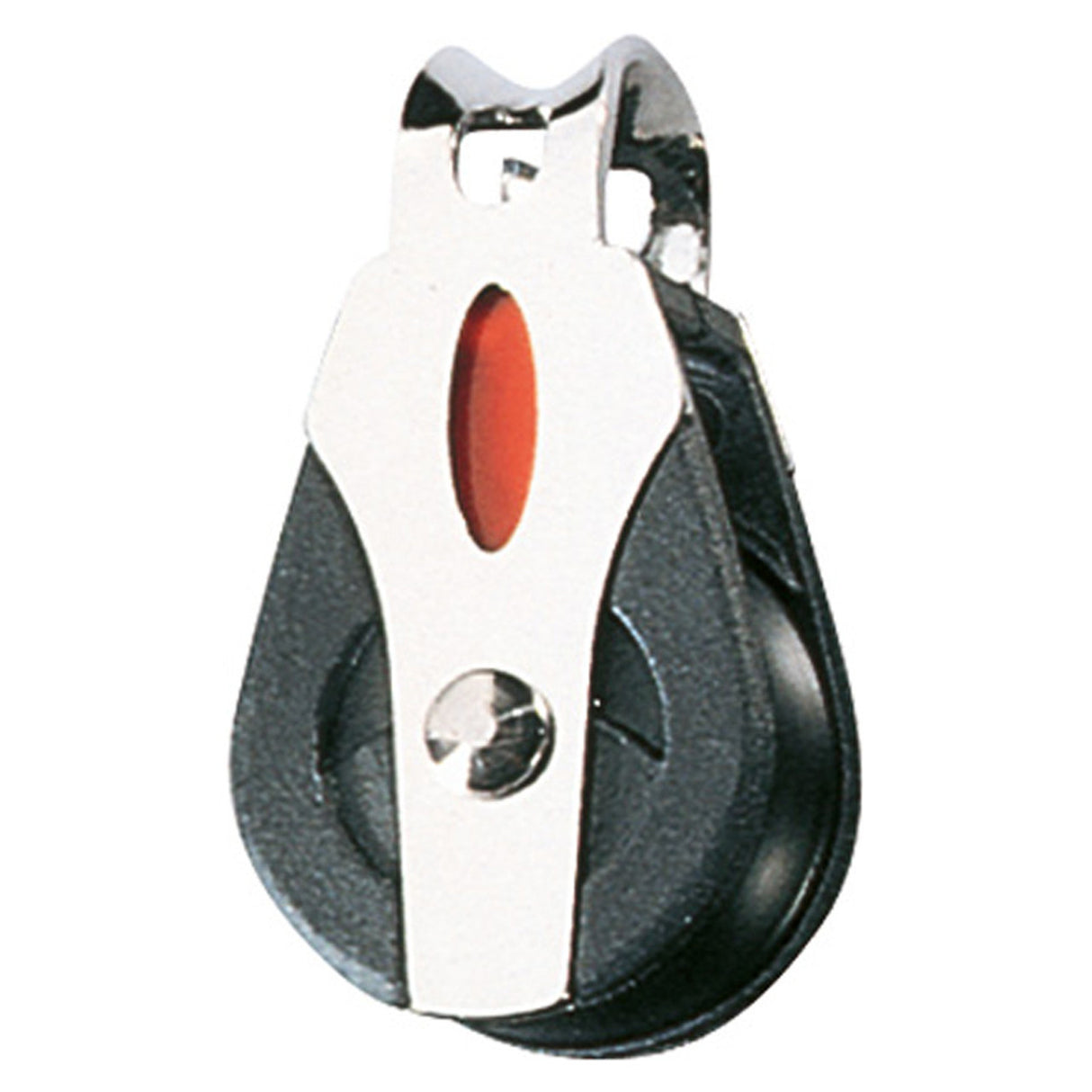

Series 20 HL Single Loop Top Block
3/4 in
20 mm
1/4 in
6 mm
1/8 in
3 mm
610 lb
275 kg
1210 lb
550 kg
0.5 oz
14 g
Manufacturer part #: RF20101HL
Exceptionally high working loads Lightweight Suitable for both rope or wire Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire. Can be fitted with a shackle in either of two planes to allow correct alignment of the block.
Applications
Dinghy control lines Dinghy vangs Cunninghams Traveller controls Halyards Backstays Materials
Nylatron® sheave Grade 316 stainless steel load strap and head fitting Impact and U.V. resistant, fibre reinforced Nylon cheeks
