Manufacturer part #: RC43069
Technical Description
Series 30 CB Batten Car
4 11/16 in
119 mm
1 11/16 in
43 mm
2 7/32 in
56 mm
2 9/32 in
58 mm
18.5 oz
525 g
Manufacturer part #: RC43069

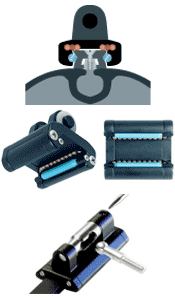

Captive Low profile Lightweight alloy car bodies Cars run on twin races of captive Torlon® ball bearings and captive slide rods, for easy loading & unloading from mast track. Runs on standard Series 30 track and can be used in conjuntion with standard Series 30 batten systems. Minimum distance from mast to mainsail luff enhance efficiency.
Quick-Release batten receptacle cars and links are standard, to allow quick and easy removal of the mainsail for changeover, repair or stowage. Stainless steel ball joint links provide movement in all directions and up to 105 degrees either side of centre.
Applications
Monohulls to 23 m (75 ft) or sail area 120 m2 (1292 ft2) Multihulls to 17 m (56 ft) or sail area 93 m2 (1001 ft2) Materials
Alloy car bodies Torlon® ball bearings Acetal sliderods Grade 316 stainless steel ball socket
Quick-Release batten receptacle cars and links are standard, to allow quick and easy removal of the mainsail for changeover, repair or stowage. Stainless steel ball joint links provide movement in all directions and up to 105 degrees either side of centre.
