Manufacturer part #: RF41140 1
Technical Description
Series 40 AP Single Stand Up Block
1 9/16 in
40 mm
7/16 in
10 mm
880 lb
400 kg
1760 lb
800 kg
2.5 oz
72 g
Manufacturer part #: RF41140

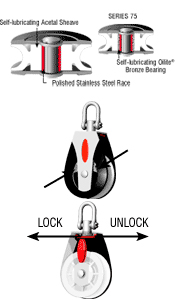

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Mount with 2 x 5 mm (3/16") fasteners (not supplied) All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8 m (26 ft) Materials
U.V. stabilised Acetal sheaves Impact and U.V. resistant, fibre reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
