Manufacturer part #: RF40140 1
Technical Description
Series 40 BB Single Stand Up Block
1 9/16 in
40 mm
3/8 in
10 mm
770 lb
350 kg
1760 lb
800 kg
2.5 oz
71 g
Manufacturer part #: RF40140

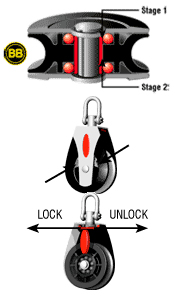

Low friction Acetal or Torlon° bearing system Lightweight Cheek cut-outs for easy bearing maintenance Captive Lock™ universal head Low friction, 2-stage ball bearing system High static and dynamic load capacity Lightweight Cheek cut-outs for easy bearing maintenance Sheaves running on Acetal or Torlon° ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Applications
Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8 m (26 ft) Materials
Acetal ball bearings UV stabilised Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Applications
