Manufacturer part #: RF40100HL 1
Technical Description
Series 40 BB Single Block
1 9/16 in
40 mm
3/8 in
10 mm
3/16 in
5 mm
1100 lb
500 kg
2200 lb
1000 kg
2.4 oz
69 g
Manufacturer part #: RF40100HL

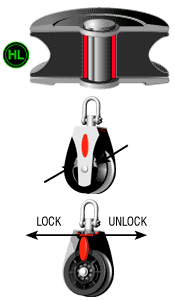

Exceptionally high working loads Lightweight Cheek cut-outs for easy bearing maintenance Suitable for both rope or wire Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8 m (26 ft) Materials
Nylatron® sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
