Manufacturer part #: RF51210 1
Technical Description
Series AP Double Becket Block
2 in
50 mm
1/2 in
12 mm
1/4 in
6 mm
2200 lb
1000 kg
4410 lb
2000 kg
9.6 oz
271 g
Manufacturer part #: RF51210

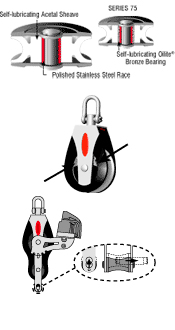

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Lockable swivelling head post Snap fit removable becket pin Spare parts - RF51010 Replacement Becket Pin, RF151 shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft) Materials
Grade 316 stainless steel load strap Impact and UV resistant, fibre reinforced Nylon cheeks
