Manufacturer part #: RF51500 1
Technical Description
Series AP Fiddle Universal Head Block
2 1/8 in + 1 5/16 in
54 mm + 34 mm
3/8 in
10 mm
3/16 in
5 mm
1650 lb
750 kg
3310 lb
1500 kg
5.9 oz
167 g
Manufacturer part #: RF51500
Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Captive Lock™ universal head Slotted pin shackle eliminates fouled lines All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

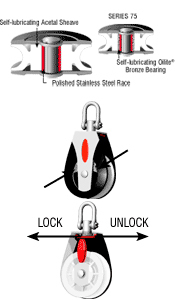

Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems Materials
Grade 316 stainless steel load strap Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
