Manufacturer part #: RF51530 1
Technical Description
Series AP Fiddle Becket Cleat Block
2 1/8 in + 1 5/16 in
54 mm + 34 mm
3/8 in
10 mm
3/16 in
5 mm
1650 lb
750 kg
3310 lb
1500 kg
11.2 oz
318 g
Manufacturer part #: RF51530

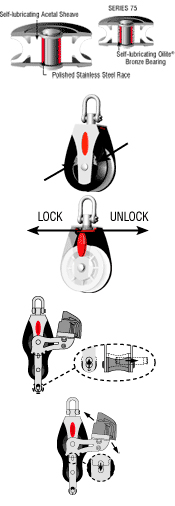

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Multi-position cleat arm Spare Parts - RF51010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems Materials
Grade 316 stainless steel load strap Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting.
