Manufacturer part #: RF51100 1
Technical Description
Series 50 AP Single Block
2 in
50 mm
1/2 in
12 mm
3/16 in
5 mm
1650 lb
750 kg
3310 lb
1500 kg
4.2 oz
118 g
Manufacturer part #: RF51100

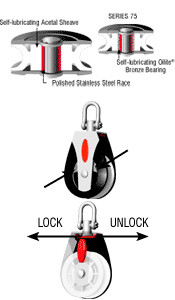

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft) Materials
Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
