Manufacturer part #: RF51110 1
Technical Description
Series AP Single Becket Block
2 in
50 mm
1/2 in
12 mm
3/16 in
5 mm
1650 lb
750 kg
3310 lb
1500 kg
4.7 oz
134 g
Manufacturer part #: RF51110
Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

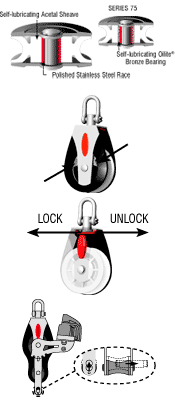

Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10 m (33 ft) Materials
Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
