Manufacturer part #: RF51140 1
Technical Description
Series AP Single Loop Top Becket Block
2 in
50 mm
1/2 in
12 mm
1650 lb
750 kg
3310 lb
1500 kg
4.2 oz
118 g
Manufacturer part #: RF51140

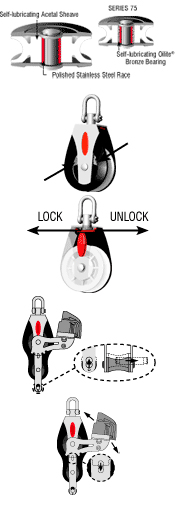

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Mount with 2 x 5 mm (3/6") fasteners (not supplied) All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft) Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls Materials
Grade 316 stainless steel load strap Impact and UV resistant, fibre reinforced Nylon cheeks
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removeable so line can be spliced prior to fitting.
