Manufacturer part #: RF50100HL 1
Technical Description
Series 50 HL Single Block
2 in
50 mm
1/2 in
12 mm
3/16 in
5 mm
3/16 in
5 mm
1760 lb
800 kg
3310 lb
1500 kg
4.1 oz
117 g
Manufacturer part #: RF50100HL

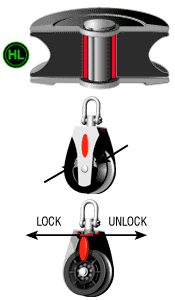

Exceptionally high working loads Lightweight Cheek cut-outs for easy bearing maintenance Suitable for both rope or wire Captive Lock™ universal head Slotted pin shackle eliminates fouled lines
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Applications
Mainsheet Spinnaker sheets Halyards and other primary applications on boats up to 10 m (33 ft) Materials
Nylatron® sheave Grade 316 stainless steel load strap and head fitting Impact and U.V. resistant, fibre reinforced Nylon cheeks
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
