Manufacturer part #: 08-62
*** Ø includes urethane base Delrin™ base for 5 Series = 35-018. Delrin™ base for 7,8,9 Series = 35-019. Delrin™ base for 10,11 Series = 35-091-B
Manufacturer part #: 08-62

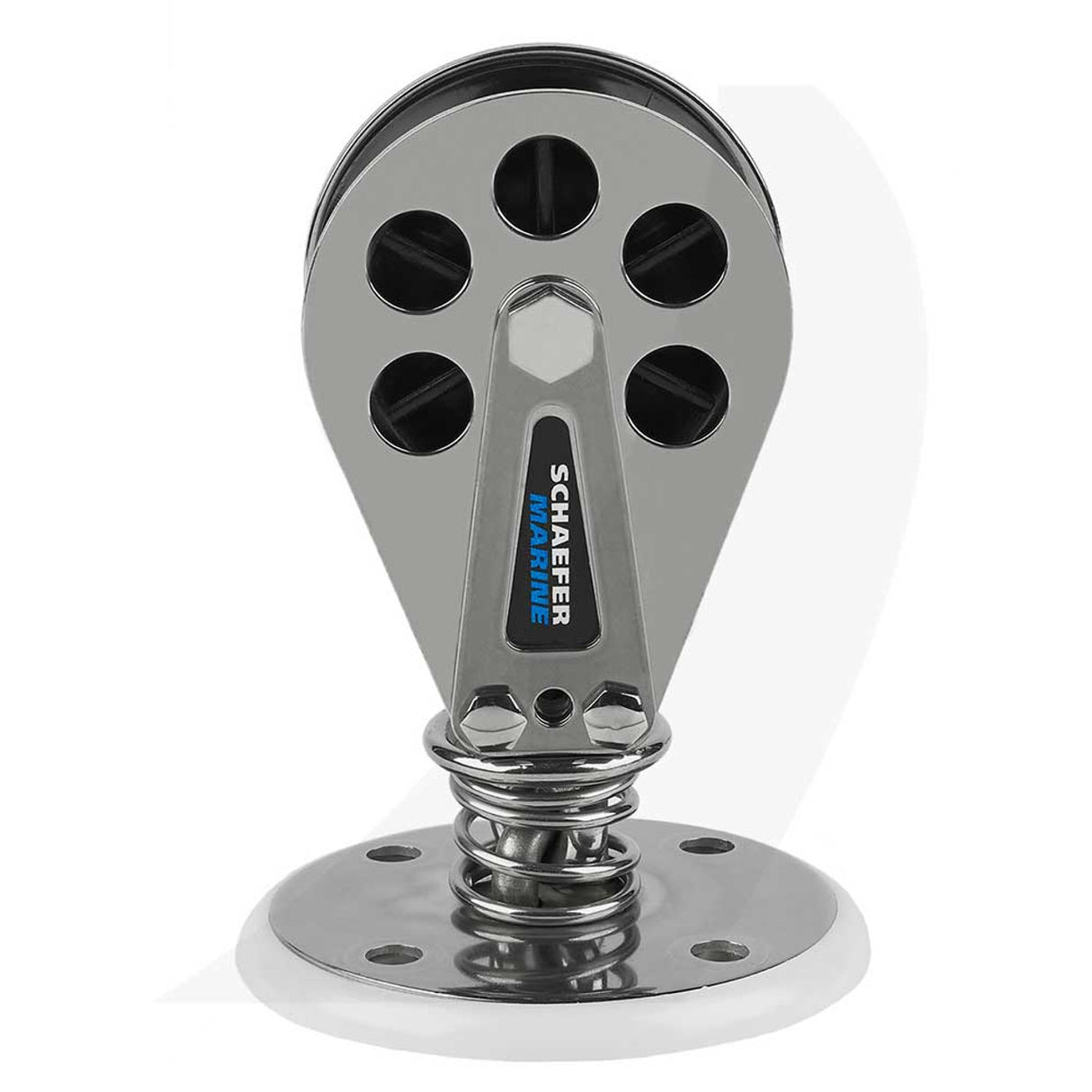

Excellent for fixed position halyard, sheet or control line fairleads. Block swivels 360°, tilts in all directions and is supported by a heavy gauge S.S. sprint to prevent deck contact. Large Ø base helps distribute loads to a larger surface area than other smaller designs.
New M-Series style feature Aluminum sheaves with Torlon™ rollers and Delrin™ ball bearings for superior strength and low-friction. Machined center allows the hub to be used as a becket.
| Features | American | Metric |
|---|---|---|
| Description | Stand-Up Swivel | |
| Backing Plate | 97 - 49 | |
| Sheave Ø | 2 3/8 in | 60 mm |
| Max Line | 9/16 in | 14 mm |
| D*** | 3 3/8 in | 86 mm |
| Height | 4 21/32 in | 63 mm |
| H2 | 2 15/32 in | 63 mm |
| Fastener Size (4) | 4 RH | 6 mm |
| C/C | 1 11/16 in | 43 mm |
| Safe Working Load | 2750 lb | 1250 kg |
| Weight SS | 15.8 oz | 448 g |
