Manufacturer part #: S2
DescriptionP4 Spool Shackle
 | Features | American | Metric |
|---|---|---|---|
| Slot Length (A) | 0.91 in | 23.1 mm | |
| Slot Width (B) | 0.438 in | 11.1 mm | |
| Inside Length (C) | 1.312 in | 33.3 mm | |
| Overall Length (D) | 1.562 in | 39.7 mm | |
| Diameter (E) | 1.032 in | 26.2 mm | |
| Flange Diameter (F) | 1.326 in | 33.7 mm | |
| Line Size | 5/16 - 3/8 in | 8 - 10 mm | |
| Weight | 0.8 oz | 22.7 g | |
| Working Load | 2200 lb | 1000 kg | |
| Breaking Strength | 4400 lb | 2000 kg |

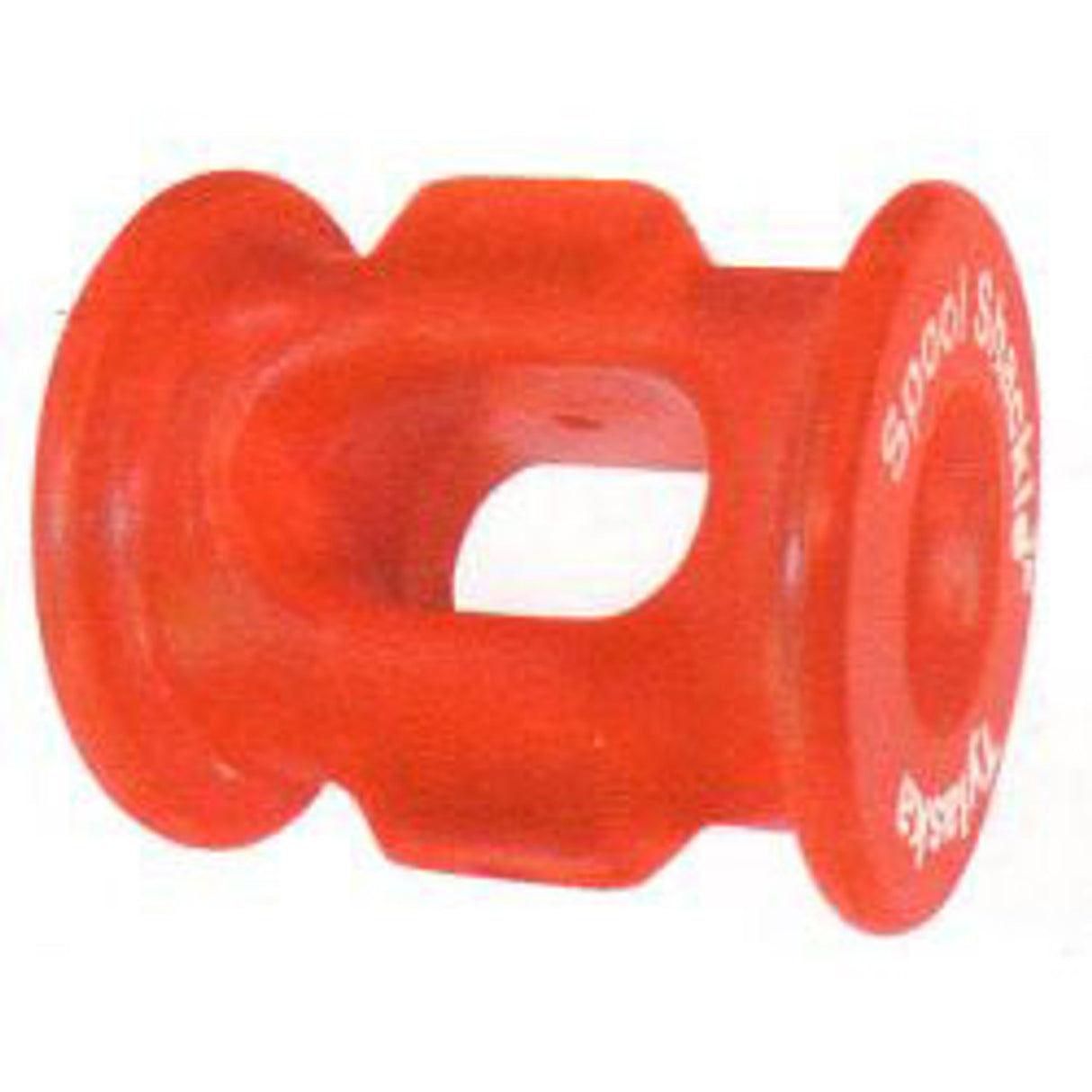

Note:P4 is made from high-impact polycarbonate plastic.
Manufacturer part #: S2
Unlike a conventional knot, the Tylaska Spool Shackle™ will not jam up and remains easy to fasten and unfasten even after loading up to the tensile strength of the line.
The S-Series Tylaska Spool Shackle&trade is machined from high-strength aluminum. The P4 version of the Tylaska Spool Shackle&trade is made of high-impact polycarbonate. Both versions have an exceptional strength-to-weight ratio. The key is that the line itself supplies the strength while the shackle simply redirects the force. The ease of unfastening after loading is equally amazing. Based upon the concept of “breaking the back" of a bowline knot, the line can be rolled back and taken off even after it becomes “stiff as a wire" from tension.
The Tylaska Spool Shackle&trade works with both conventional and hi-tech lines. All that is needed is a looped end. This can be a pre-spliced loop, yet-to-be spliced loop, or simply an overhand knot loop. A retaining pin allows for the shackle to be removed or transferred to other lines. An optional “O" ring slides over the line to provide a secondary “lock" against loosening during the most severe flogging situations.
- Ideal for Halyards, Genoa Sheets, etc
- Tremendous Strength
- Flog-Proof
- Easy to Fasten and Unfasten
- Will Not Jam Up
