Manufacturer part #: S20
Note: S20 can fit most weaves of 12 mm and some weaves of 1/2 in.
Manufacturer part #: S20

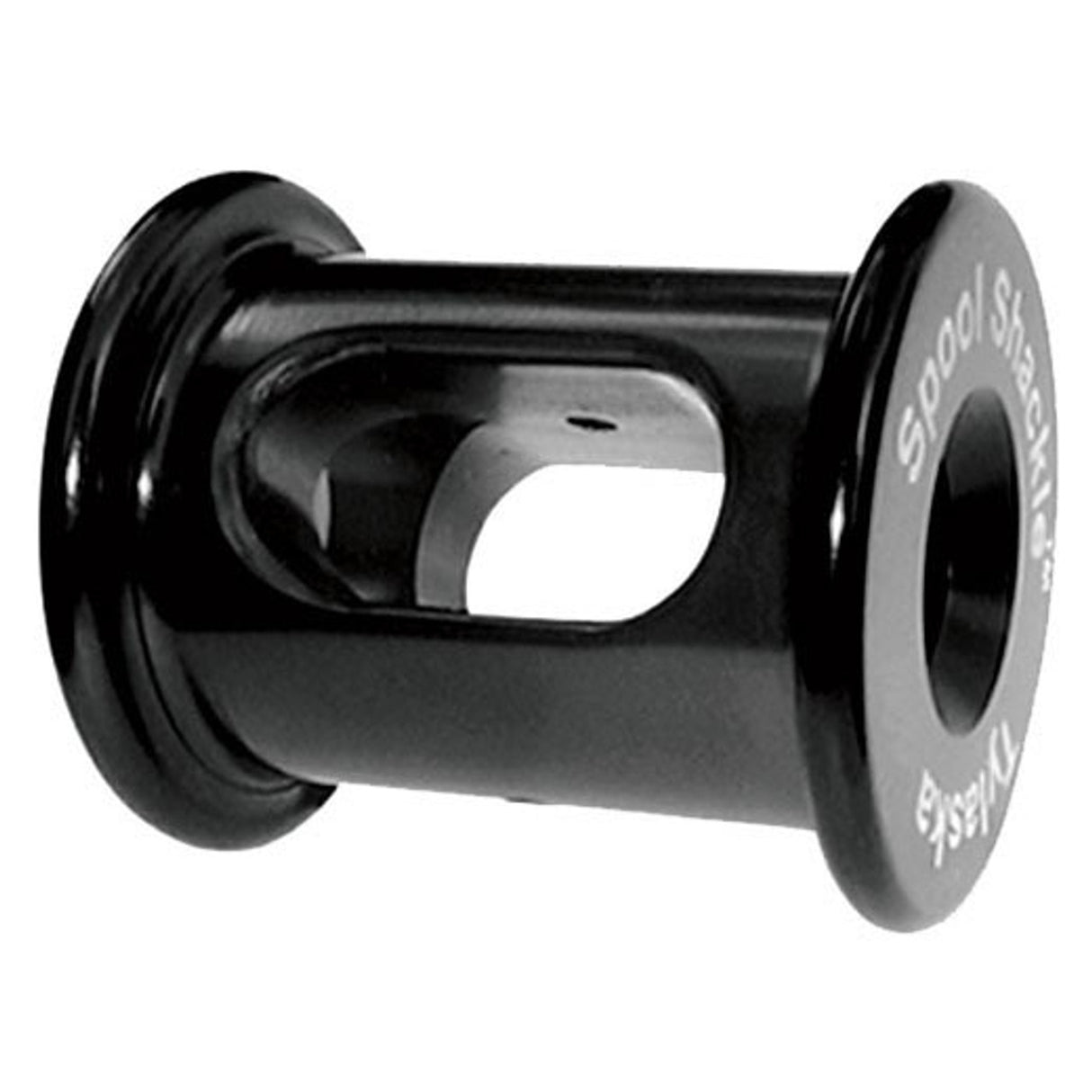

Unlike a conventional knot, the Tylaska Spool Shackle™ will not jam up and remains easy to fasten and unfasten even after loading up to the tensile strength of the line.
The S-Series Tylaska Spool Shackle&trade is machined from high-strength aluminum. The P4 version of the Tylaska Spool Shackle&trade is made of high-impact polycarbonate. Both versions have an exceptional strength-to-weight ratio. The key is that the line itself supplies the strength while the shackle simply redirects the force. The ease of unfastening after loading is equally amazing. Based upon the concept of “breaking the back" of a bowline knot, the line can be rolled back and taken off even after it becomes “stiff as a wire" from tension.
The Tylaska Spool Shackle&trade works with both conventional and hi-tech lines. All that is needed is a looped end. This can be a pre-spliced loop, yet-to-be spliced loop, or simply an overhand knot loop. A retaining pin allows for the shackle to be removed or transferred to other lines. An optional “O" ring slides over the line to provide a secondary “lock" against loosening during the most severe flogging situations.
Ideal for Halyards, Genoa Sheets, etc Tremendous Strength Flog-Proof Easy to Fasten and Unfasten Will Not Jam Up
 | Features | American | Metric | Description | S20 Spool Shackle |
|---|---|---|---|
| Slot Length (A) | 1.159 in | 29.4 mm | |
| Slot Width (B) | 0.563 in | 14.3 mm | |
| Inside Length (C) | 1.677 in | 42.6 mm | |
| Overall Length (D) | 1.99 in | 50.5 mm | |
| Diameter (E) | 1.329 in | 33.8 mm | |
| Flange Diameter (F) | 1.705 in | 2.485 mm | |
| Line Size | 3/8 - 7/16 in | 10 - 11 mm | |
| Weight | 3.4 oz | 96 g | |
| Working Load | 10000 lb | 4545 kg | |
| Breaking Strength | 20000 lb | 9091 kg |
