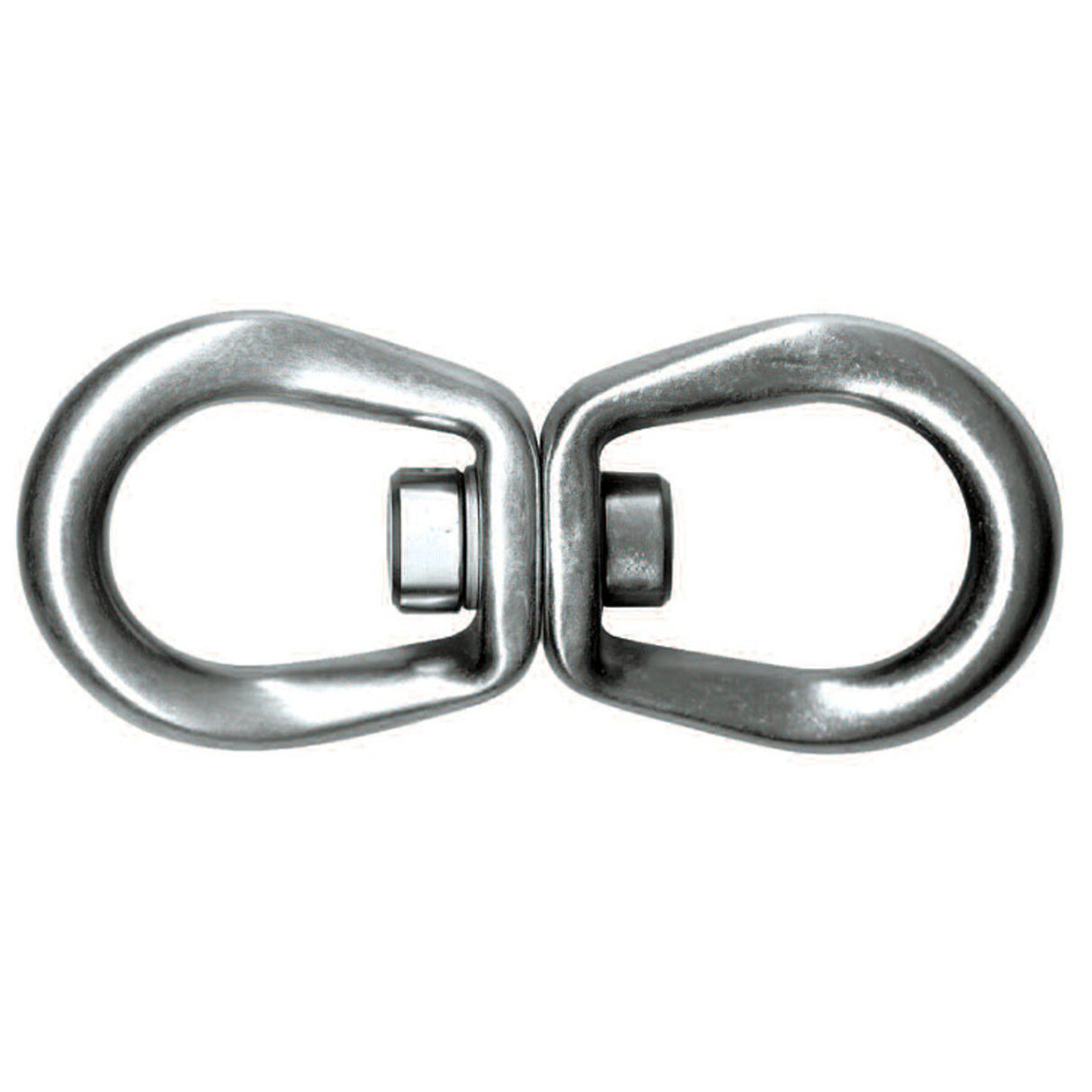

Manufacturer part #: T5 LB/LB
Manufacturer part #: T5 LB/LB
Swivel type in each size T5 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis and clevis/clevis.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
 | Features | American | Metric | Description | T5 Large Bail/Large Bail Swivel |
|---|---|---|---|
| A | 7/8 in | 22.2 mm | |
| B | 7/8 in | 22.2 mm | |
| C | 13/16 in | 20.6 mm | |
| D | 7/8 in | 22.2 mm | |
| E | 3 1/16 in | 77.8 mm | |
| Weight | 2.6 oz | 74 g | |
| Working Load | 2500 lb | 1136 kg | |
| Breaking Strength | 5000 lb | 2273 kg |
Manufacturer part #: T5 LB/LB
Swivel type in each size T5 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis and clevis/clevis.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
