Allen Brothers 30mm Allenite Through Deck
Allen Brothers 30mm Allenite Through Deck

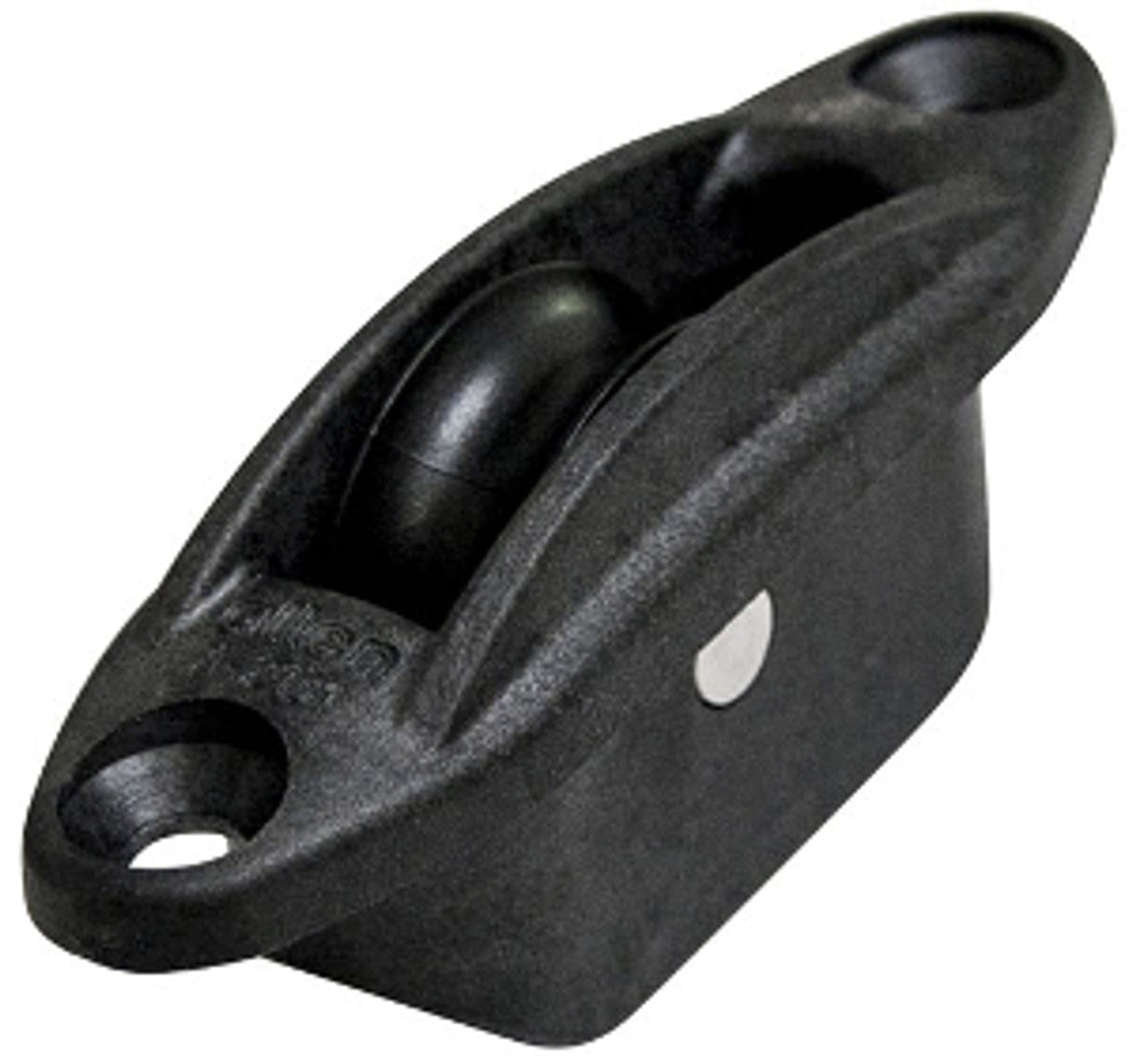

30mm Single Dynamic Through Deck Block
The 30mm Single Dynamic Through Deck Block provides smooth, low-friction guidance for rope and wire control lines passing through a deck or surface. Designed for adjustable rigging and other highly loaded applications, it features a durable acetal body precisely shaped to support and protect the sheave.
Key Features
- Single-sheave through deck design for efficient line routing
- Suitable for both rope and wire control lines
- Hard-wearing acetal body for long-lasting performance
- Ideal for adjustable rigging and high-load applications
- Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail
- Superior load-carrying capability and service life compared to bearing systems running on plastic rails
- Delivers smooth, reliable performance in applications requiring constant sheave movement
- Durable construction designed for demanding marine environments
Technical Description
| Accessories | Through Deck |
| Bearing Type | Dynamic |
| Breaking Load | 500 kg |
| Configuration | Single |
| Fixing Hole Diameter | 5.2 mm |
| Fixing Type | Countersunk |
| Hole Pitch | 60 mm |
| Length | 47 mm |
| Maximum Working Load | 140 kg |
| Maximum Line Diameter | 8 mm |
| Number Of Fixing Holes | 2 |
| Number Of Sheaves | 1 |
| Sheave Diameter | 30 mm |
| Sheave Material | Acetal |
| Sheave Width | 10 mm |
| Slot Size | 60 x 17 mm |
| Weight | 26 g |
