Antal | SKU:
ANT7206
Antal Padeyes 6mm Diam.
Sale
Sale price
$89.25
Regular price
$105.00
Unit price
Not available for expedite shipping.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Antal Padeyes 6mm Diam.
Sale price
$89.25
Regular price
$105.00
Unit price

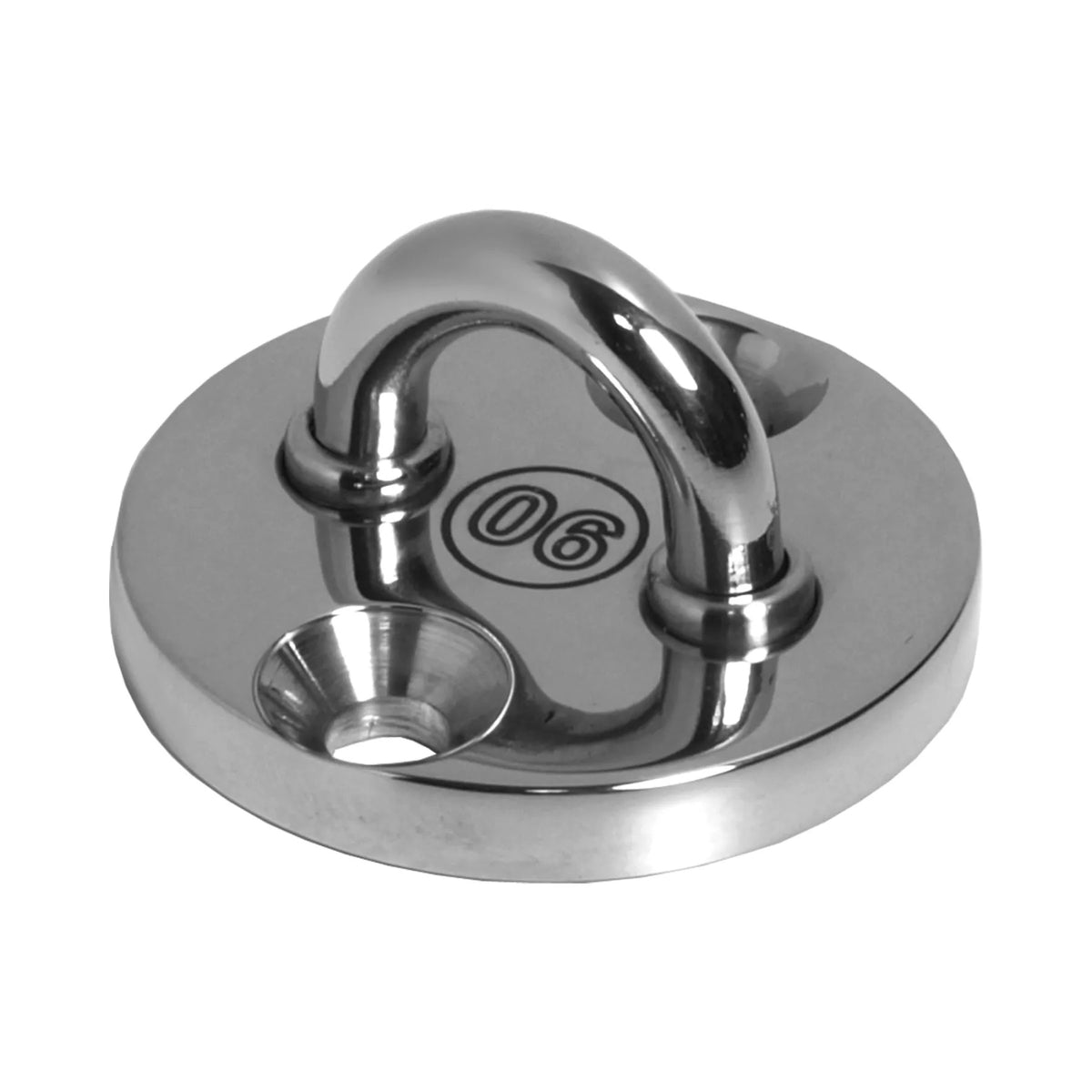

Antal Padeyes 6mm Diam.
2 screwes pad eye in AISI 316 S.Steel, Ø6, SWL 800 kg.
The pad-eye should be positioned so that the direction of the main load is in the plane of the arc. For different load directions appropriate reduction of the SWL must be considered (see drawing).
Loads in the transverse plane can cause deformations of the arc therefore appropriate reductions of the SWL must be considered (see drawing).
However, with side loads small deformations will always be possible.
Technical Description
| Ø Base (D) | 44 mm |
| Weight | 0,10 kg |
| SWL | 800 kg |
| Material | S.Steel AISI 316 |
| Fixing Screws | 2 x Ø6 mm |
| d | 6 mm |
| D | 44 mm |
