Antal | SKU:
ANT509.111H
Antal Cam 814 Clutch 8/10 Horizontal Left
Sale
Sale price
$165.75
Regular price
$195.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Antal Cam 814 Clutch 8/10 Horizontal Left
Sale price
$165.75
Regular price
$195.00
Unit price
Antal Cam 814 Clutch 8/10 Horizontal Left
V-Cam 814, lateral mount clutch, for lines Ø8-10.
V-Cam 814 has a box-structure in UV-resistant resin with S.Steel reinforcements, aluminium base, V-Cam and aligning bushing in AISI316.
It can be completely dismantled for simple maintenance and repairing.
Retrieval can be performed with the stopper closed; the operation automatically secures itself in the new position.

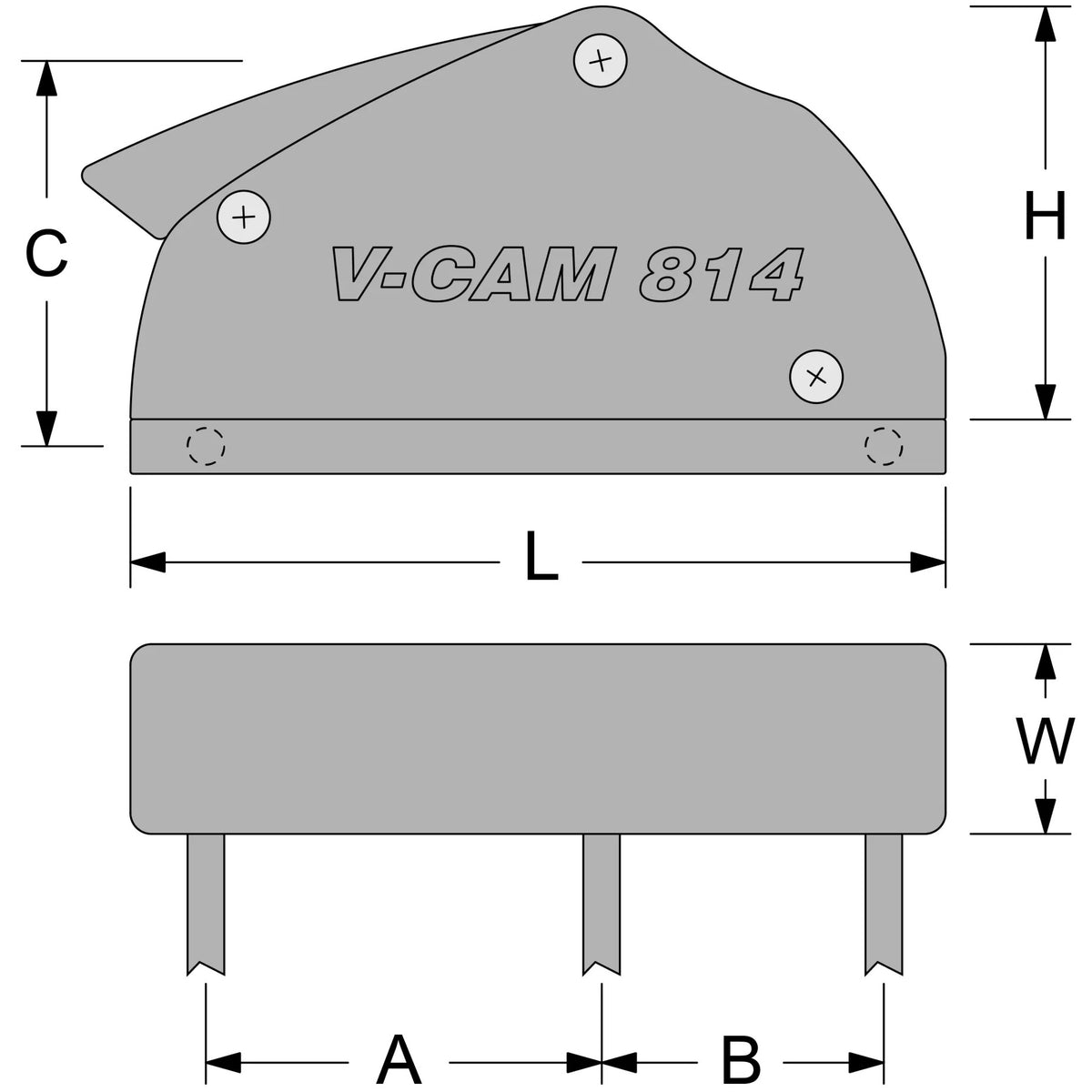

Technical Description
| Length (L) | 154.5 mm |
| Width (W) | 36 mm |
| Height (H) | 78 mm |
| Weight | 0.72 kg |
| Ø Min Line | 8 mm |
| Ø Max Line | 10 mm |
| A | 66.9 mm |
| B | 43 mm |
| C | 74.2 mm |
| Type | Horizontal |
| Fixing Screws | 2 x Ø8 mm + 1 x Ø5 mm |
| MWL | 850 kg |
