Harken | SKU:
HR478
Harken 6mm Underdeck Furling System - Luff Wire
Sale price
$2,954.95
Regular price
$3,767.65
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 6mm Underdeck Furling System - Luff Wire
Sale price
$2,954.95
Regular price
$3,767.65
Unit price
Harken 6mm Underdeck Furling System - Luff Wire

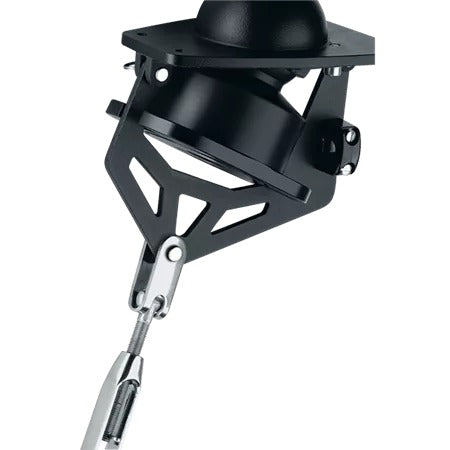

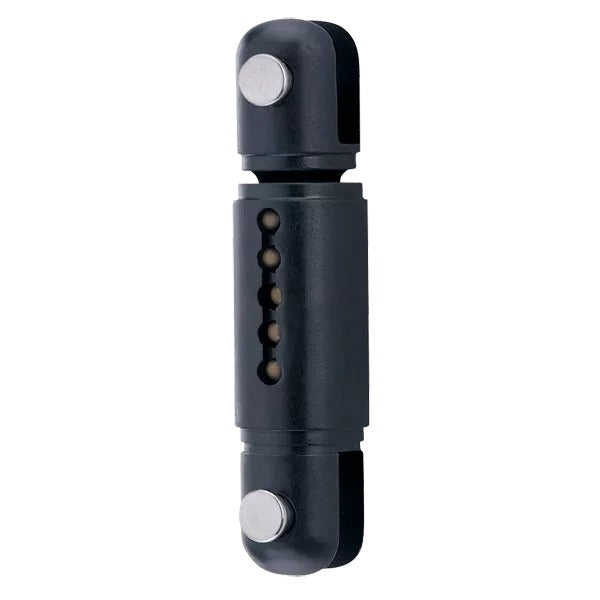

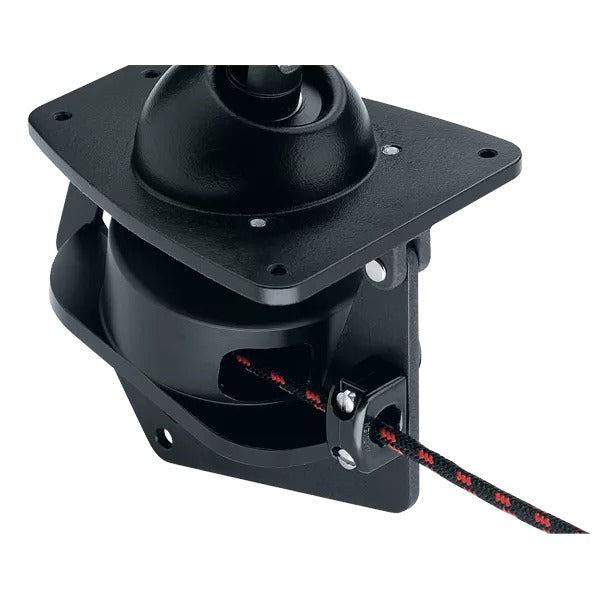

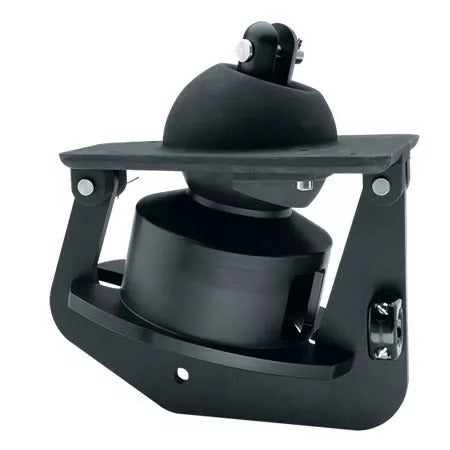

Small Boat underdeck furling units are ideal for sportboats and daysailers from 4.8 m to 9 m (16 to 30 ft). The drum is located beneath the deck, lowering the tack height for maximized sail area. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
Technical Description
| Weight (g) | 2721 g |
| Weight (oz) | 96 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Maximum working load (kg) | 1361 kg |
| Maximum working load (lb) | 3000 lb |
| Minimum line Ø (mm) | 5 mm |
| Minimum line Ø (in) | 3/16 in |
| Drum Ø (mm) | 127 mm |
| Drum Ø (in) | 5 in |
| Clevis pin Ø (mm) | 11.1 mm |
| Clevis pin Ø (in) | 7/16 in |
| Pin-to-pin length (mm) | 260 mm |
| Pin-to-pin length (in) | 10 7/32 in |
| Jaw width (mm) | 12 mm |
| Jaw width (in) | 1/2 in |
| Maximum luff wire Ø (mm) | 6 mm |
| Maximum luff wire Ø (in) | 1/4 in |
