Harken 5mm Underdeck Furling System - Luff Wire
Sale price
$1,856.95
Regular price
$2,367.05
Unit price

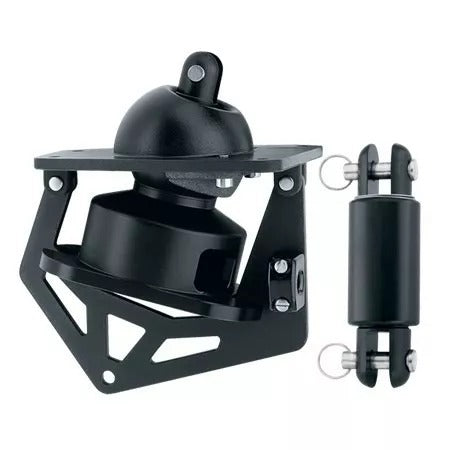

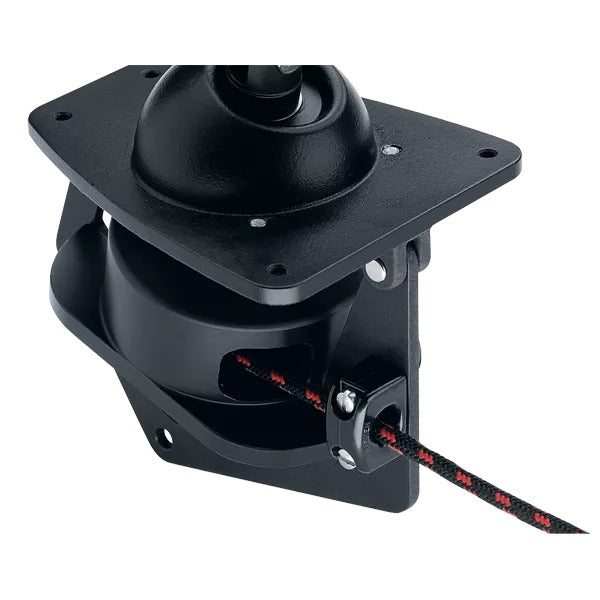

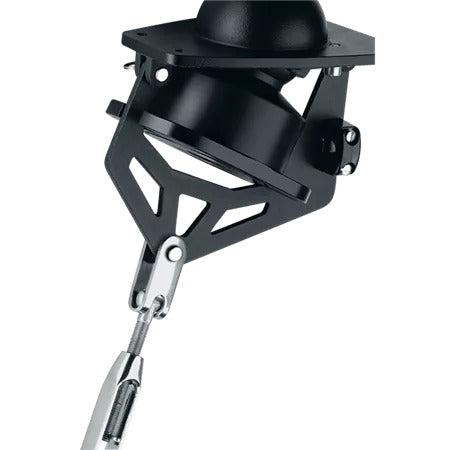

Harken 5mm Underdeck Furling System - Luff Wire
Small Boat underdeck furling units are ideal for sportboats and daysailers from 4.8 m to 9 m (16 to 30 ft). The drum is located beneath the deck, lowering the tack height for maximized sail area. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
Technical Description
| Weight (g) | 1433 g |
| Weight (oz) | 50.5 oz |
| Maximum line Ø (mm) | 5 mm |
| Maximum line Ø (in) | 3/16 in |
| Maximum working load (kg) | 907 kg |
| Maximum working load (lb) | 2000 lb |
| Minimum line Ø (mm) | 4 mm |
| Minimum line Ø (in) | 5/32 in |
| Drum Ø (mm) | 102 mm |
| Drum Ø (in) | 4 in |
| Clevis pin Ø (mm) | 7.9 mm |
| Clevis pin Ø (in) | 5/16 in |
| Pin-to-pin length (mm) | 188 mm |
| Pin-to-pin length (in) | 7 3/8 in |
| Jaw width (mm) | 10 mm |
| Jaw width (in) | 3/8 in |
| Maximum luff wire Ø (mm) | 5 mm |
| Maximum luff wire Ø (in) | 3/16 in |
