Harken | SKU:
HR7412.11 5/8
Harken Unit 2 Underdeck Furling System
Sale price
$7,688.95
Regular price
$9,804.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken Unit 2 Underdeck Furling System
Sale price
$7,688.95
Regular price
$9,804.00
Unit price
Harken Unit 2 Underdeck Furling System

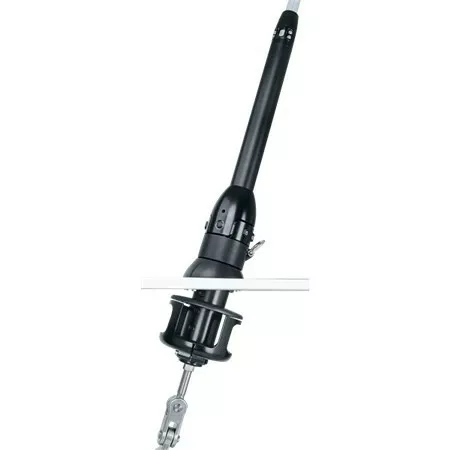

Harken’s MKIV Underdeck Furling is the perfect solution for performance racers and cruisers who want an aerodynamic system with a minimal amount of equipment above deck. The drum is located beneath the deck, lowering the tack height for maximized sail area.
Technical Description
| B (mm) | 167 mm |
| B (in) | 6 5/8 in |
| Wire Ø (1 x 19 SS) (mm) | 10 mm |
| Wire Ø (1 x 19 SS) (in) | 5/16 in |
| Rod Ø (mm) | 8.38 mm |
| Rod Ø (dash) | -17 |
| Clevis pin Ø (mm) | 15.9 mm |
| Clevis pin Ø (in) | 5/8 in |
| Standard headstay length (m) | 18.38 m |
| Standard headstay length (ft in) | 60.4 ft in |
| Maximum headstay length (m) | 20.51 m |
| Maximum headstay length (ft in) | 67' 4" ft in |
| A minimum (mm) | 322 mm |
| A minimum (in) | 12 11/16 in |
| A maximum (mm) | 471 mm |
| A maximum (in) | 18 9/16 in |
| C minimum (mm) | 137 mm |
| C minimum (in) | 5 3/8 in |
| C maximum (mm) | 287 m |
| C maximum (in) | 11 5/16 in |
| J (mm) | 32 mm |
| J (in) | 1 1/4 in |
| K (mm) | 36 mm |
| K (in) | 1 3/8 in |
| Extrusion length (m) | 2.13 m |
| Extrusion length (ft in) | 7' ft in |
| Luff tape size (mm) | 5 mm |
| Luff tape size (in) | #6 (6/32) in |
