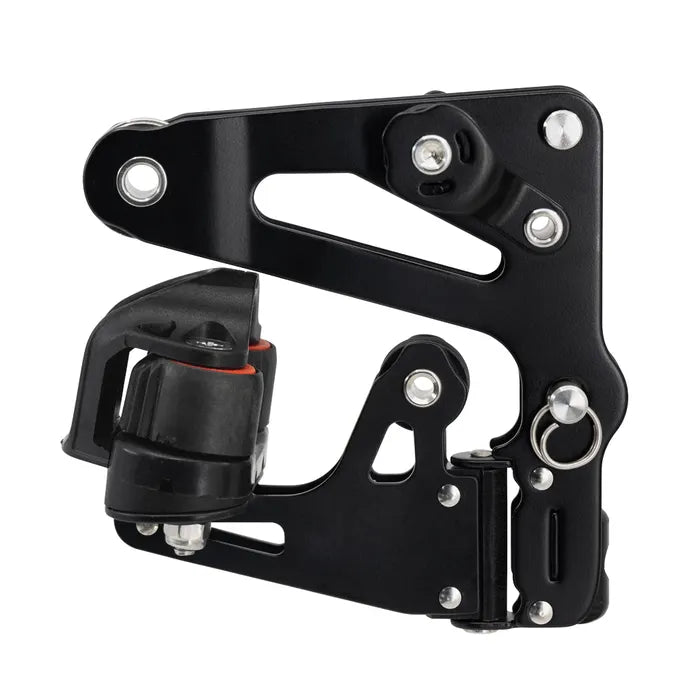

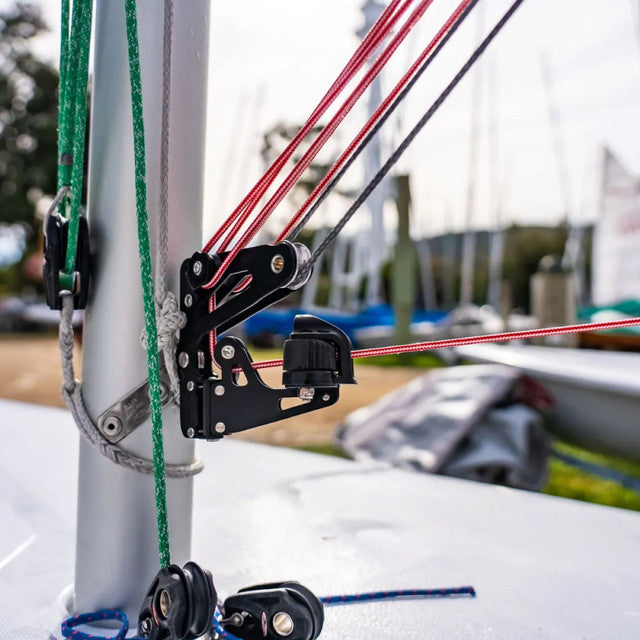

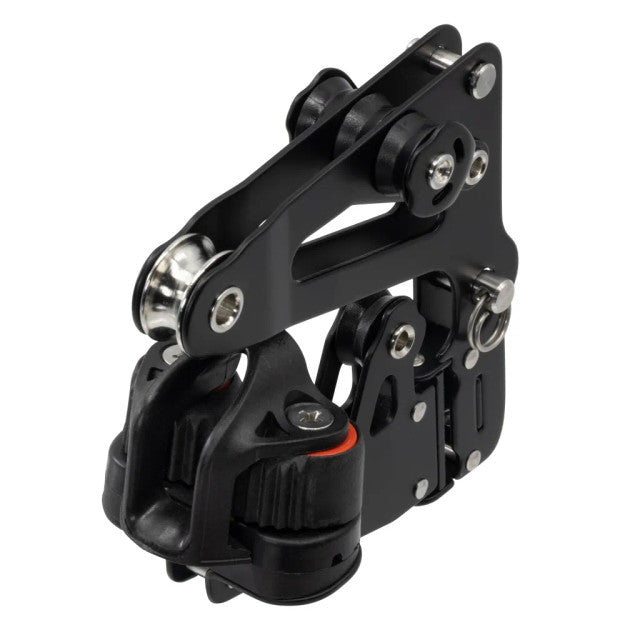

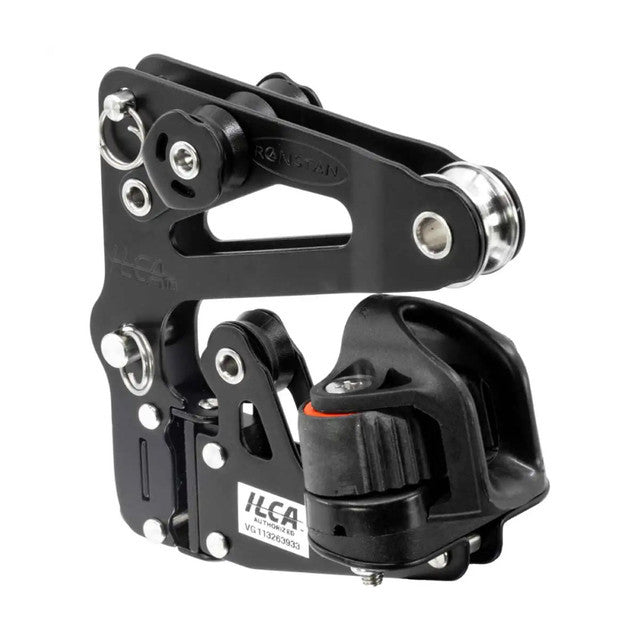

Ronstan ILCA Vang Unit, Lower
Ronstan ILCA Vang Unit, Lower
Ronstan’s ILCA lower vang unit is the new benchmark in design and performance. Thoroughly tested on the water by leading ILCA sailors, the vang unit features optimised geometry to minimise line chafe and friction which provides a purchase advantage, and easy cleating and releasing to stay in full control when playing the vang from any angle while inboard or hiking.
The primary purchase sheave features a high load, low friction, stainless steel HHL sheave. Geometry of the cleat arm pivot point is close to the clevis pin attachment to minimise stress on the mast attachment point.
ILCA licensed part available for purchase through ILCA approved builders and dealers.
Features:
- Lowest friction ILCA vang unit available.
- HHL sheave for the high load primary sheave.
- Easy cleating and releasing from any angle.
- Pivot point close to clevis pin attachment to minimise stresses on mast fitting.
- Optimised geometry to eliminate line chafe and friction.
- Composite C-Cleat and fairlead.
- ILCA licensed part available for purchase through ILCA approved builders and dealers.
Applications:
- ILCA lower vang unit.
- Lowest friction ILCA vang unit available.
Materials:
- Ball Bearing Sheaves: UV stabilised acetal.
- HHL sheave and bearing race: Grade 2205 stainless steel.
- Ball bearings: Grade 304 stainless steel.
- Cheeks/Frame: Grade 316 stainless steel, hard wearing black coating.
| Pin Ø (in) | 1/4 |
|---|---|
| Max. Rope diameter (in) | 3/16 |
| Weight (oz) |
6.2 |
