Allen Brothers 30MM Dynamic Single Tii-On
30mm Single Dynamic Tii-On Block
The 30mm Single Dynamic Tii-On Block is designed for secure soft attachment systems, featuring a stainless-steel head loop that delivers maximum strength, reliability, and minimal cheek separation under load. The integrated head loop also helps maintain correct block orientation during use.

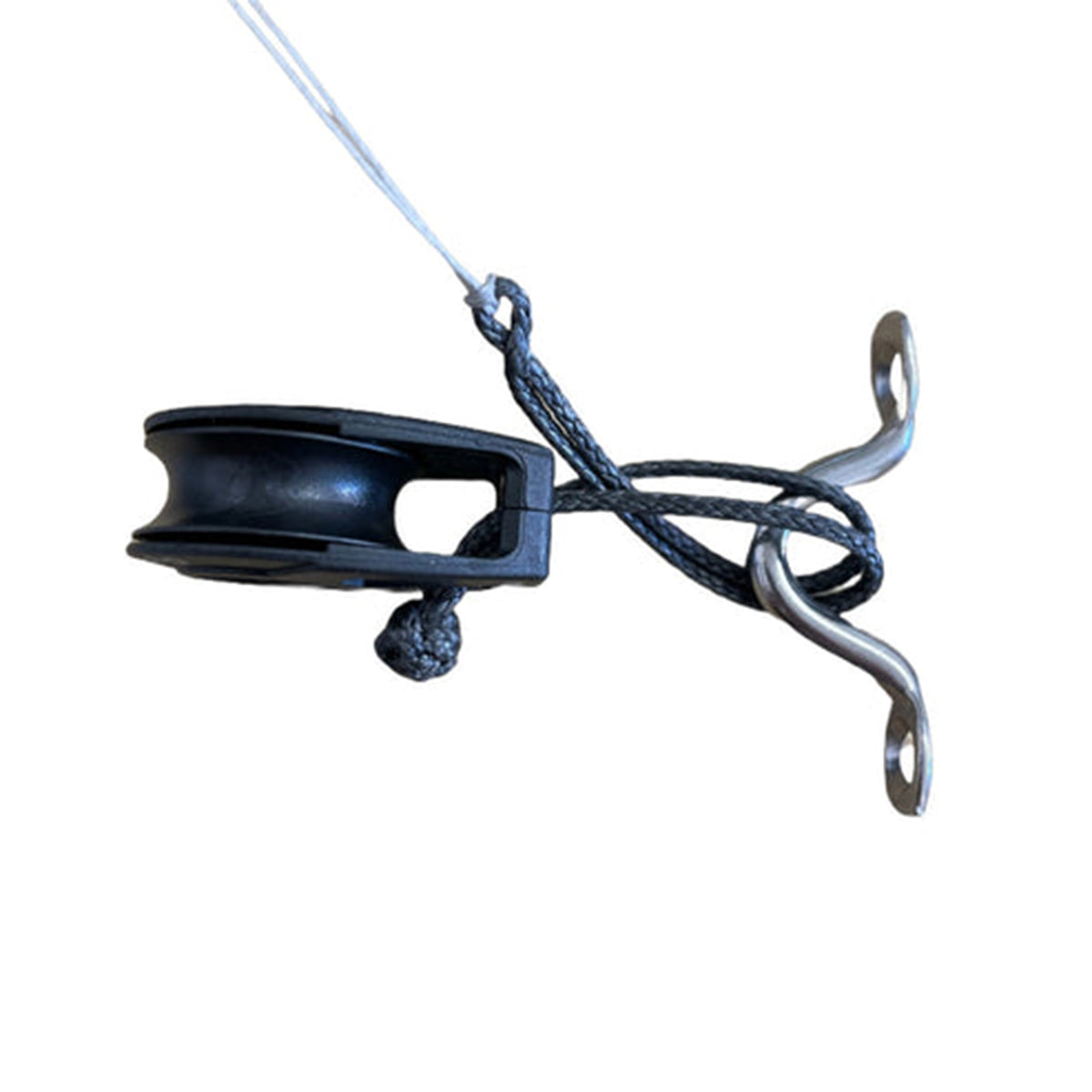

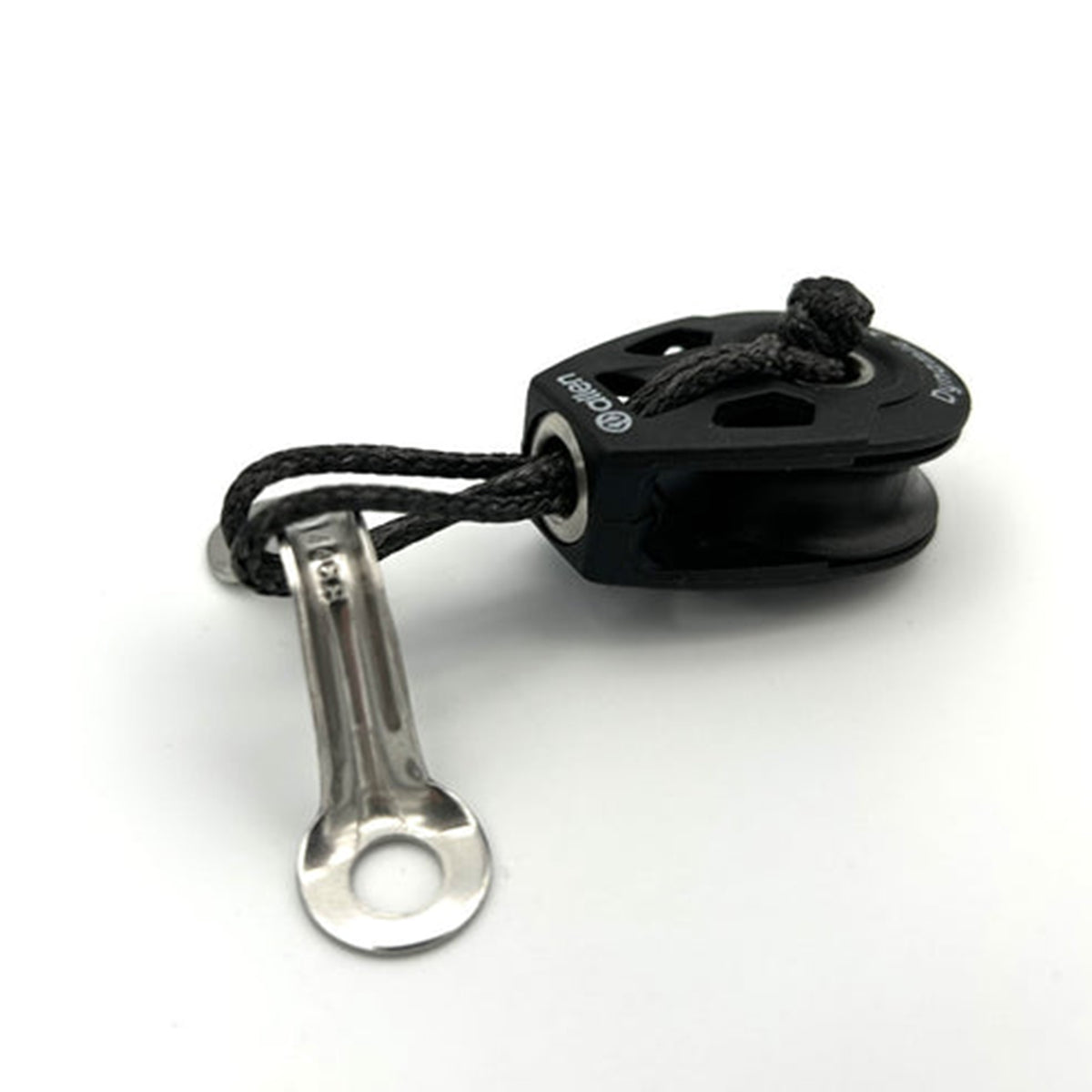

Available with or without a Tii-Shackle.
Key Features
- Single-sheave design for smooth and efficient line handling
- Stainless-steel head loop for secure soft shackle attachment
- Minimises cheek separation under load and maintains correct orientation
- Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for superior load capacity and long service life
- Integrated Becket via a large central rivet, providing a lightweight and rope-friendly attachment point for cascade systems
- Ideal for applications requiring a strong, reliable soft attachment solution

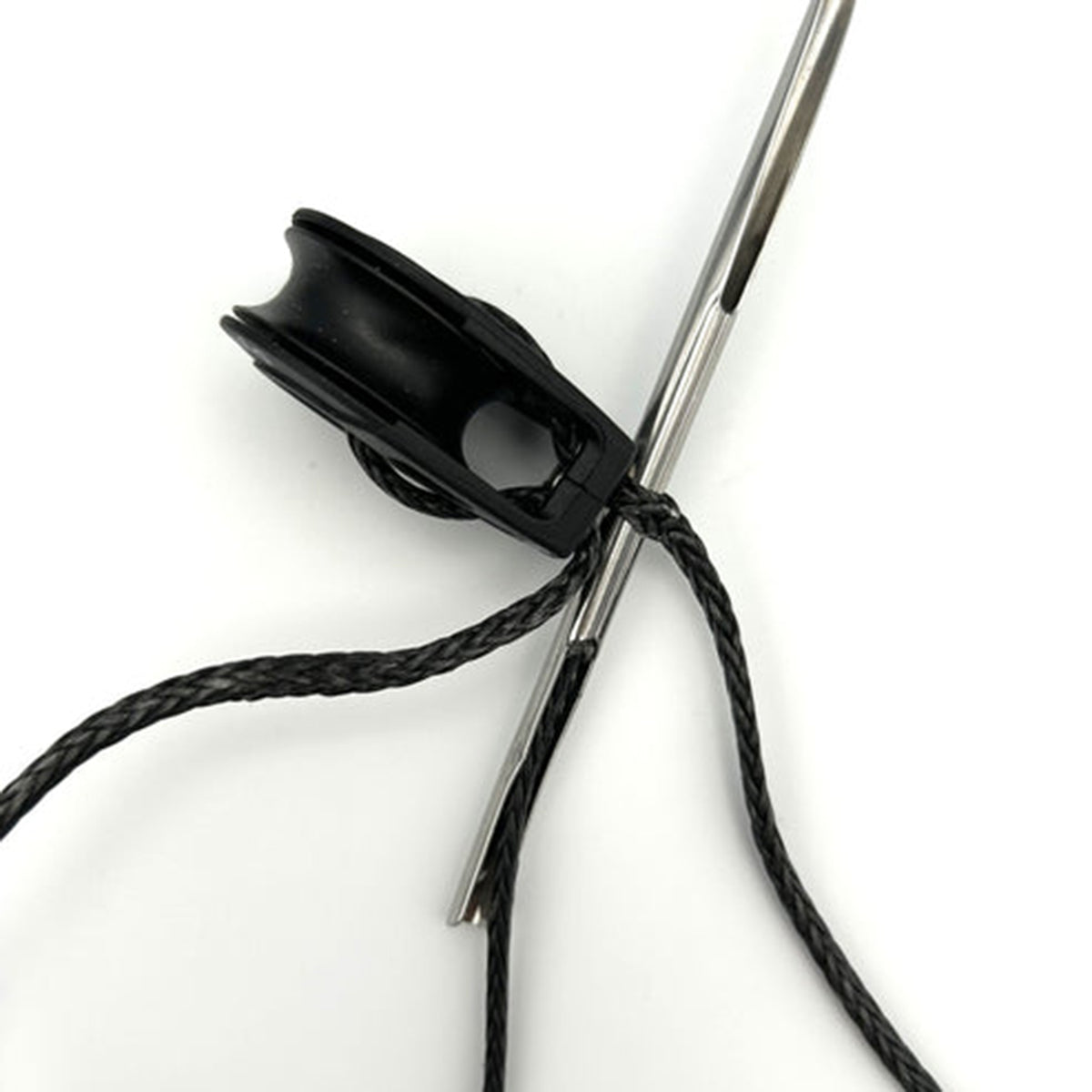

Fitting Guidance: For maximum strength, the attachment line must be fed around the central axle and through the head of the block. Where possible, use a crossed or through-threaded attachment method to keep the load pulling the side cheeks together. When using a Tii-Shackle, crossed attachments are recommended. Non-crossed attachments should only be used in low-load applications.
Technical Description
| Breaking Load | 750 kg |
| Maximum Working Load | 140 kg |
| Length | 42 mm |
| Weight | 23 g |
| Accessories | Tii-On |
| Bearing Type | Dynamic |
| Configuration | Single |
| Maximum Line Diameter | 8 mm |
| Width | 30 mm |
| Height | 15 mm |
