Harken | SKU:
HR35.2STP

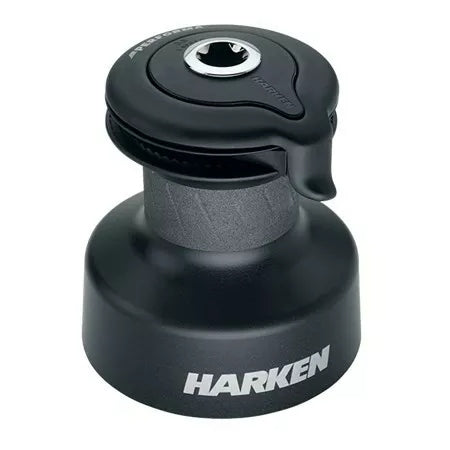

Harken 35 Self-Tailing Performa Winch - AL/2 Speed
Sale price
$1,204.95
Regular price
$1,843.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 35 Self-Tailing Performa Winch - AL/2 Speed
Sale price
$1,204.95
Regular price
$1,843.00
Unit price
Harken 35 Self-Tailing Performa Winch - AL/2 Speed
All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Technical Description
| Minimum line Ø (mm) | 6 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 1/2 in |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 73 mm |
| Drum Ø (in) | 2 7/8 in |
| Base Ø (mm) | 120 mm |
| Base Ø (in) | 4 3/4 in |
| Height (mm) | 170 mm |
| Height (in) | 6 11/16 in |
| Weight (kg) | 3.6 kg |
| Weight (lb) | 7.9 lb |
| Line entry height (mm) | 59 mm |
| Line entry height (in) | 2 3/10 in |
| Fastener circle (mm) | 100 mm |
| Fastener circle (in) | 4 in |
| Fasteners (mm) | M6 SH mm |
| Fasteners (in) | 1/4 SH in |
| Number of fasteners | 5 |
| Gear ratio - 1 | 1.1 |
| Gear ratio - 2 | 4.25 |
| Power ratio - 1 | 7.8 |
| Power ratio - 2 | 29.8 |
