Harken | SKU:
HR46.2STHA
Harken 46 Hydraulic Self-Tailing Radial Aluminum Winch 2 Speed, Vertical
Sale price
$5,429.95
Regular price
$6,842.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 46 Hydraulic Self-Tailing Radial Aluminum Winch 2 Speed, Ver...
Sale price
$5,429.95
Regular price
$6,842.00
Unit price

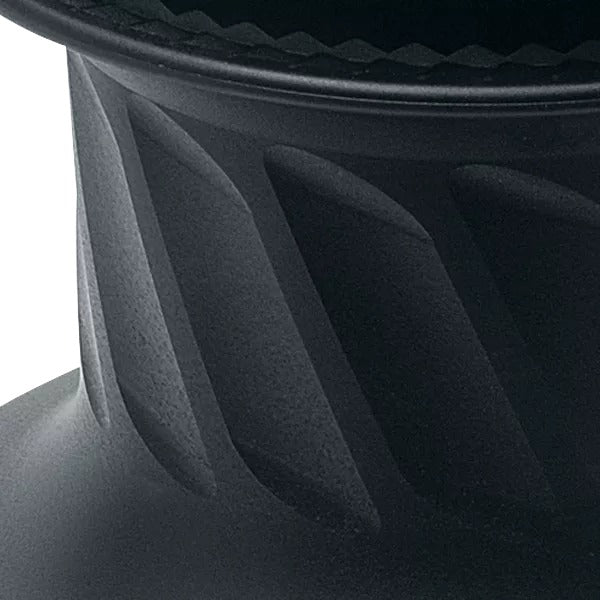

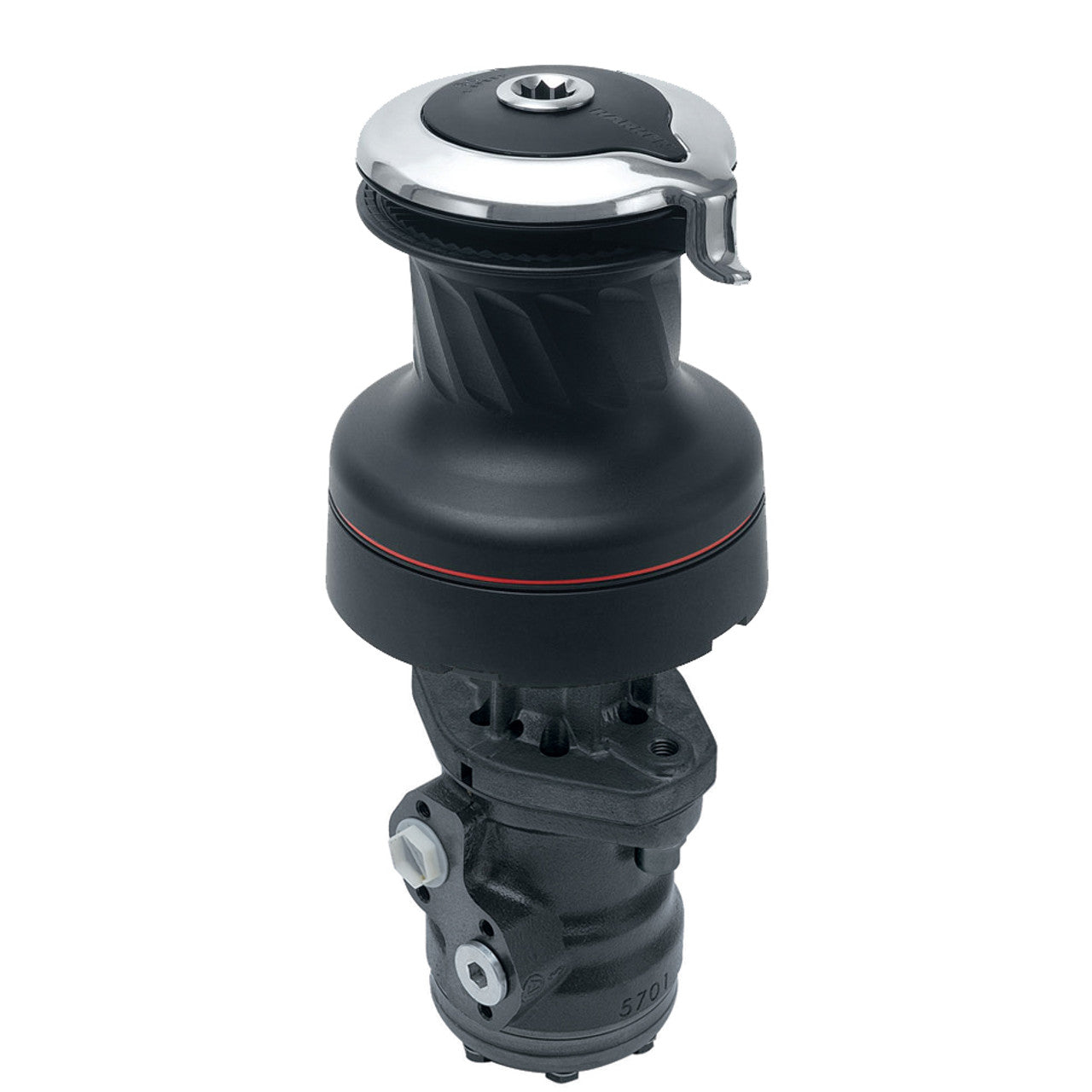

Harken 46 Hydraulic Self-Tailing Radial Aluminum Winch 2 Speed, Vertical
Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Technical Description
| Material | Aluminum |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 100 mm |
| Drum Ø (in) | 3 7/8 in |
| Base Ø (mm) | 184 mm |
| Base Ø (in) | 7 1/4 in |
| Height (mm) | 201 mm |
| Height (in) | 7 15/16 in |
| Weight (kg) | 5.2 kg |
| Weight (lb) | 11.5 lb |
| Weight of Winch and Motor (kg) | 12.7 |
| Weight of Winch and Motor (lb) | 28 |
| Motor weight (kg) | 7.5 kg |
| Motor weight (lb) | 16.5 lb |
| Line entry height (mm) | 90 mm |
| Line entry height (in) | 3 9/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Number of fasteners | 5 |
| Gear ratio - 1 | 2.30 |
| Gear ratio - 2 | 9.17 |
| Power ratio - 1 | 11.70 |
| Power ratio - 2 | 46.50 |
| Available power | Hydraulic |

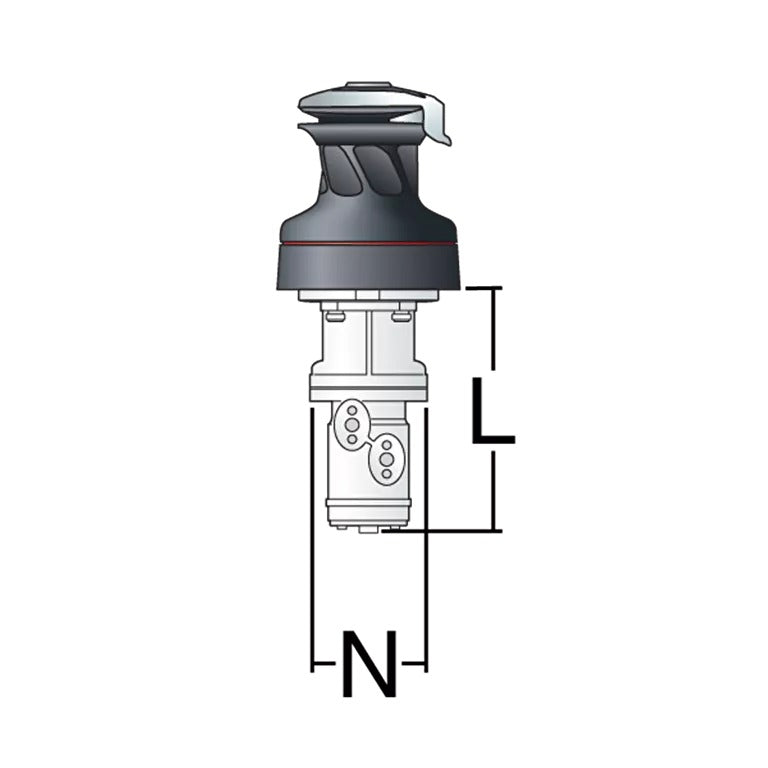

| Hydraulic L (mm) | 234 mm |
| Hydraulic L (in) | 9.25 in |
| Hydraulic N (mm) | 130 mm |
| Hydraulic N (in) | 5 1/8 in |
