Harken | SKU:
HR60.3STHP

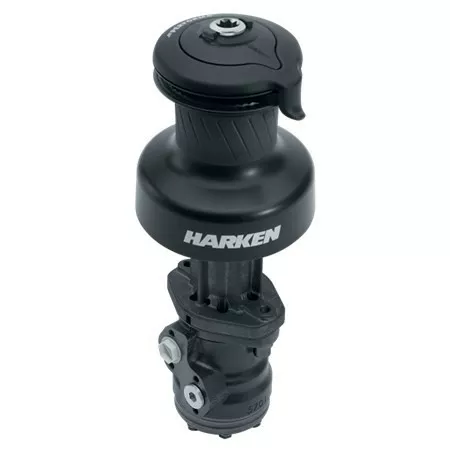

Harken 60 Hydraulic Self-Tailing Performa Winch - 3 Speed Vertical
Sale price
$11,532.95
Regular price
$14,531.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 60 Hydraulic Self-Tailing Performa Winch - 3 Speed Vertical
Sale price
$11,532.95
Regular price
$14,531.00
Unit price
Harken 60 Hydraulic Self-Tailing Performa Winch - 3 Speed Vertical

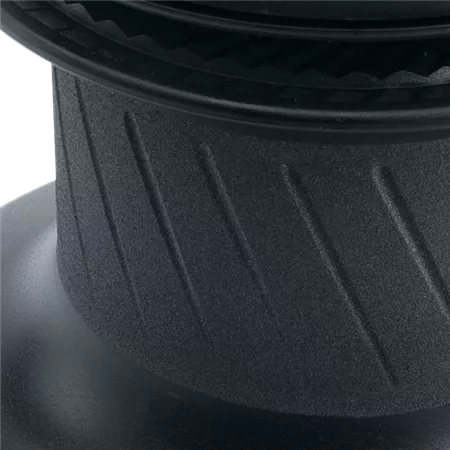

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button.
Technical Description
| Weight (kg) | 11.7 kg |
| Weight (lb) | 25.8 lb |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Height (mm) | 253 mm |
| Height (in) | 10 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Weight of Winch and Motor (kg) | 19.2 kg |
| Weight of Winch and Motor (lb) | 42.4 lb |
| Motor weight (kg) | 7.5 kg |
| Motor weight (lb) | 16.6 lb |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Gear ratio - 1 | 2.2 |
| Gear ratio - 2 | 4.8 |
| Gear ratio - 3 | 14.4 |
| Power ratio - 1 | 9.2 |
| Power ratio - 2 | 20.3 |
| Power ratio - 3 | 61 |
| Racing disconnect rod | B60.3PDR |
| Hydraulic L (mm) | 234 mm |
| Hydraulic L (in) | 9 1/4 in |
| Hydraulic N (mm) | 130 mm |
| Hydraulic N (in) | 5 1/8 in |
