Antal 26X20 Track BB Size 100, Car Stand-Up Toggle, 2 Control Sheaves
Antal 26X20 Track BB Size 100, Car Stand-Up Toggle, 2 Control Sheaves

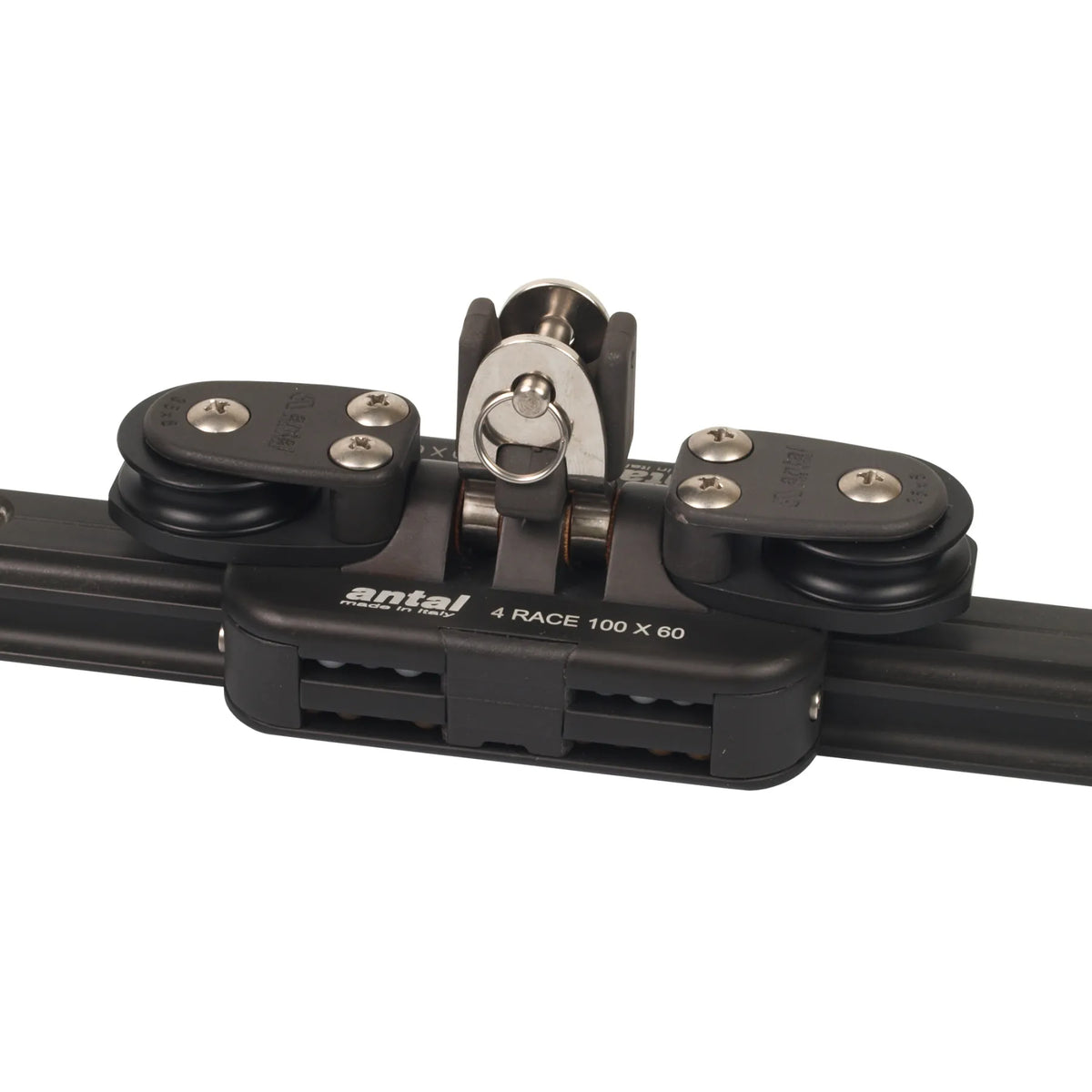

Car with 1 sheave. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316).
Technical Description
| Length (L) | 100 mm |
| Width (W) | 62 mm |
| Track dimensions | 26 x 20 mm |
| Weight | 0,23 kg |
| SWL | 820 kg |
| Ø control pulley | 35 mm |
| Ø suggested block | 60 mm |
| No. balls | 50 x Torlon + 50 x Delrin |
| M | 140 mm |
Antal 26X20 Track BB Size 100, Car Stand-Up Toggle, 2 Control Sheaves
Car with 1 sheave. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316).
Technical Description
| Length (L) | 100 mm |
| Width (W) | 62 mm |
| Track dimensions | 26 x 20 mm |
| Weight | 0,23 kg |
| SWL | 820 kg |
| Ø control pulley | 35 mm |
| Ø suggested block | 60 mm |
| No. balls | 50 x Torlon + 50 x Delrin |
| M | 140 mm |
