Harken | SKU:
HR50.2STEP12V
Harken 50 Electric Self-Tailing Performa Winch 2 Speed 12V, Vertical
Sale price
$7,007.95
Regular price
$8,829.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 50 Electric Self-Tailing Performa Winch 2 Speed 12V, Vertical
Sale price
$7,007.95
Regular price
$8,829.00
Unit price
Harken 50 Electric Self-Tailing Performa Winch 2 Speed 12V, Vertical

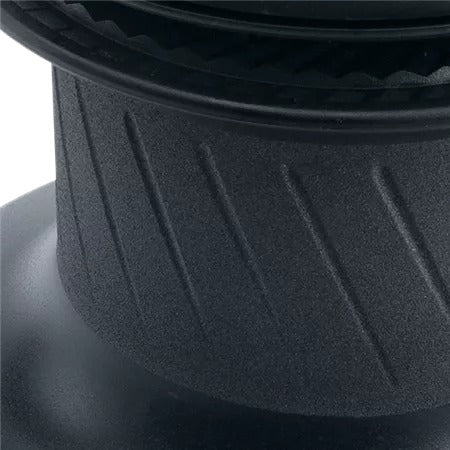

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.
Technical Description
| Weight (kg) | 13.2 kg |
| Weight (lb) | 29.1 lb |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Height (mm) | 212 mm |
| Height (in) | 8 5/16 in |
| Number of fasteners | 5 |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 110 mm |
| Drum Ø (in) | 4 5/16 in |
| Base Ø (mm) | 195 mm |
| Base Ø (in) | 7 11/16 in |
| Line entry height (mm) | 97 mm |
| Line entry height (in) | 3 13/16 in |
| Gear ratio - 1 | 2.40 |
| Gear ratio - 2 | 10.90 |
| Power ratio - 1 | 11.10 |
| Power ratio - 2 | 50.40 |
