Allen Brothers U Bolt With Top & Bottom Backing Plate
Allen Brothers U Bolt With Top & Bottom Backing Plate

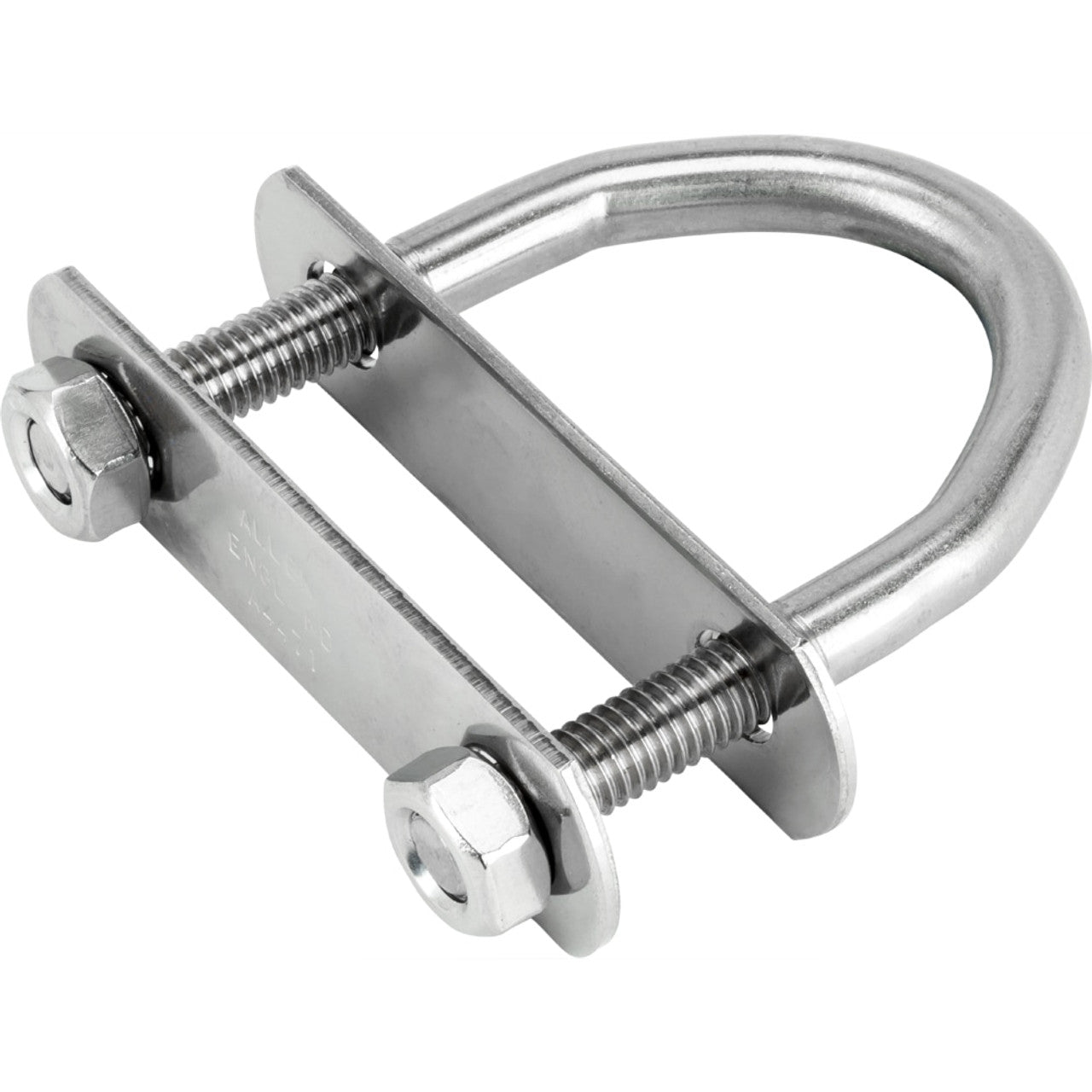

U Bolt With Top & Bottom Backing Plate
5mm rod – 23mm internal width.
Shaped like the letter “U” with threaded ends and two backing plates.
Typically bolted through the deck of a boat and used as an attachment point for lines, hardware or rigging.
This comes as one singular U-Bolt, with two nuts, and two backing plates (one for either side of the deck).
Made from marine-grade stainless steel.

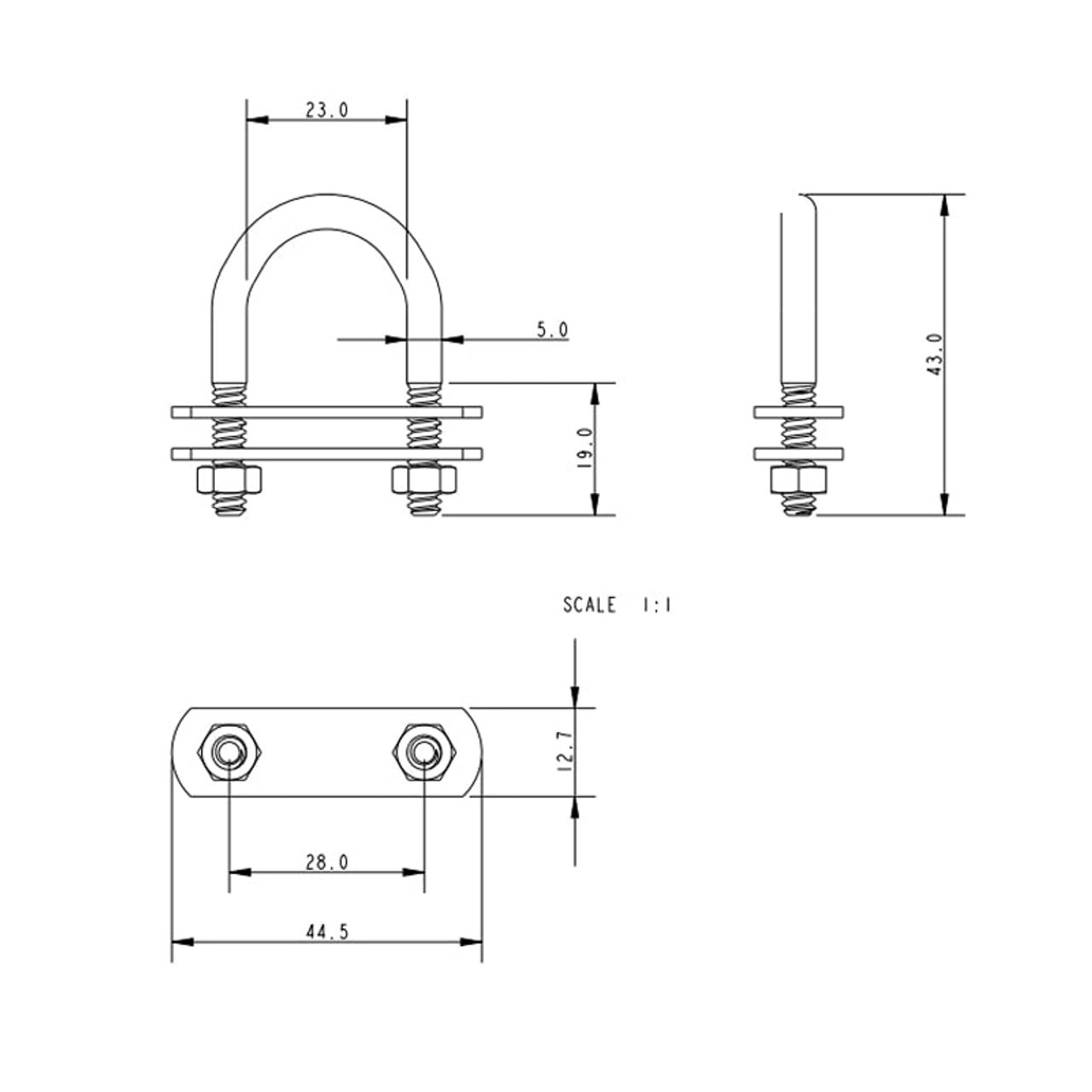

Technical Description
| Rod Size | 5mm |
| Fixing Hole Centres | 28mm |
| Height | 43mm |
| Thread Length | 20mm |
| Inside Width | 23mm |
| Length | 200mm |
| Weight | 24g |
