Nautos USA  |  SKU: NAU91334

91334 Telescoping Vang #2 Internal Relation 4:1

Regular price $1,095.65
Shipping calculated at checkout.

Pickup available at 1830 East Interstate 30

Usually ready in 24 hours

DELIVERY AND RETURN INFO

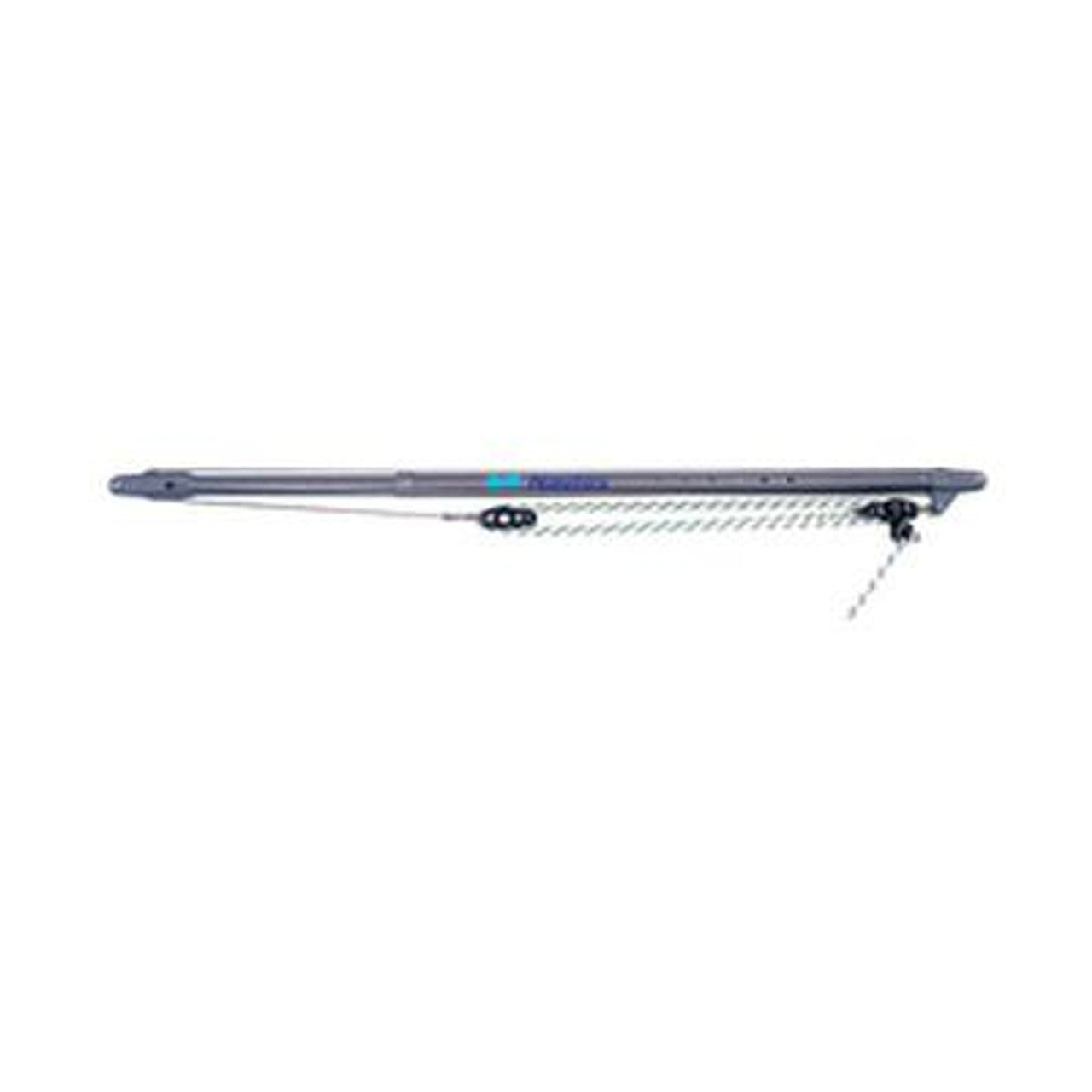

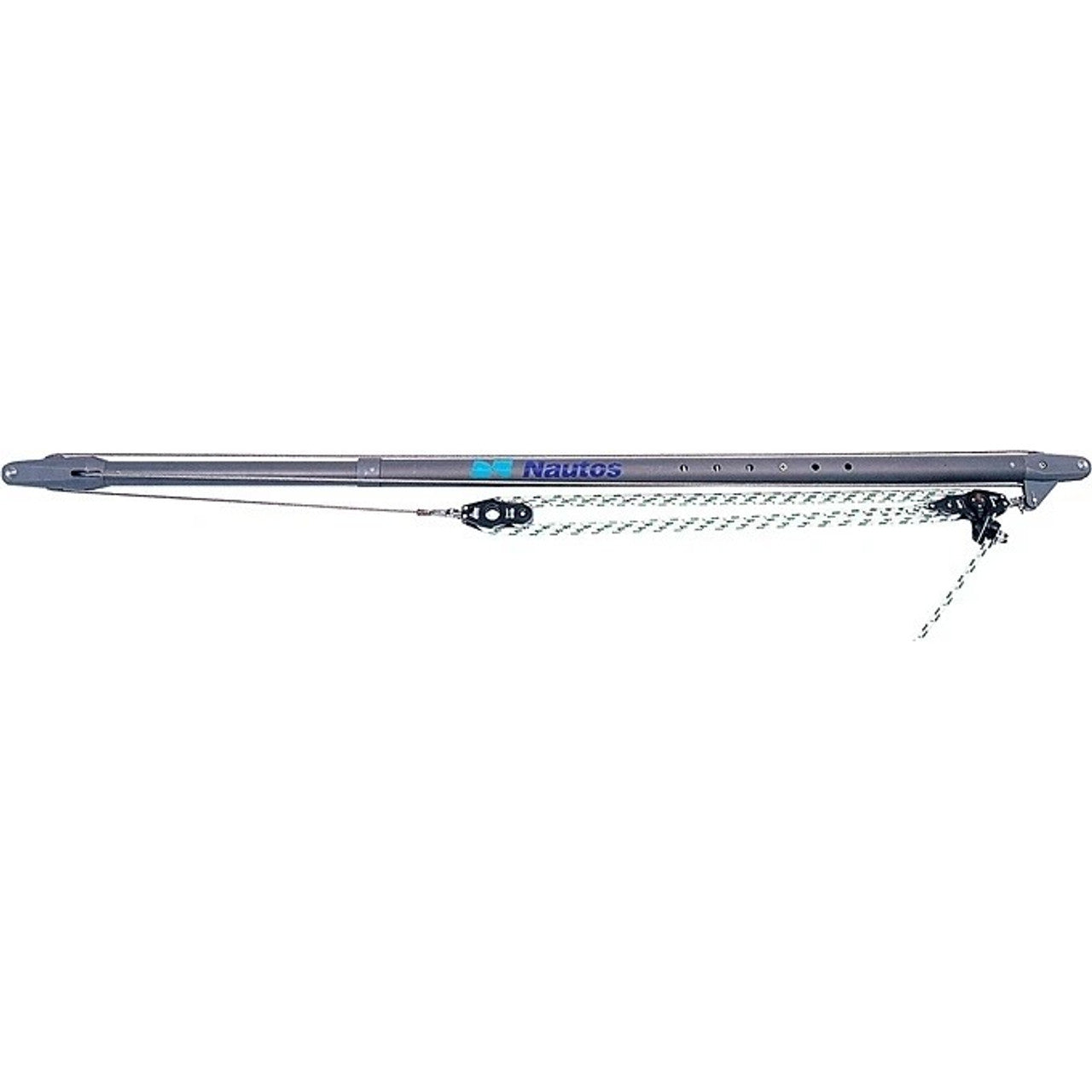

Telescoping vang #2 internal relation 4:1

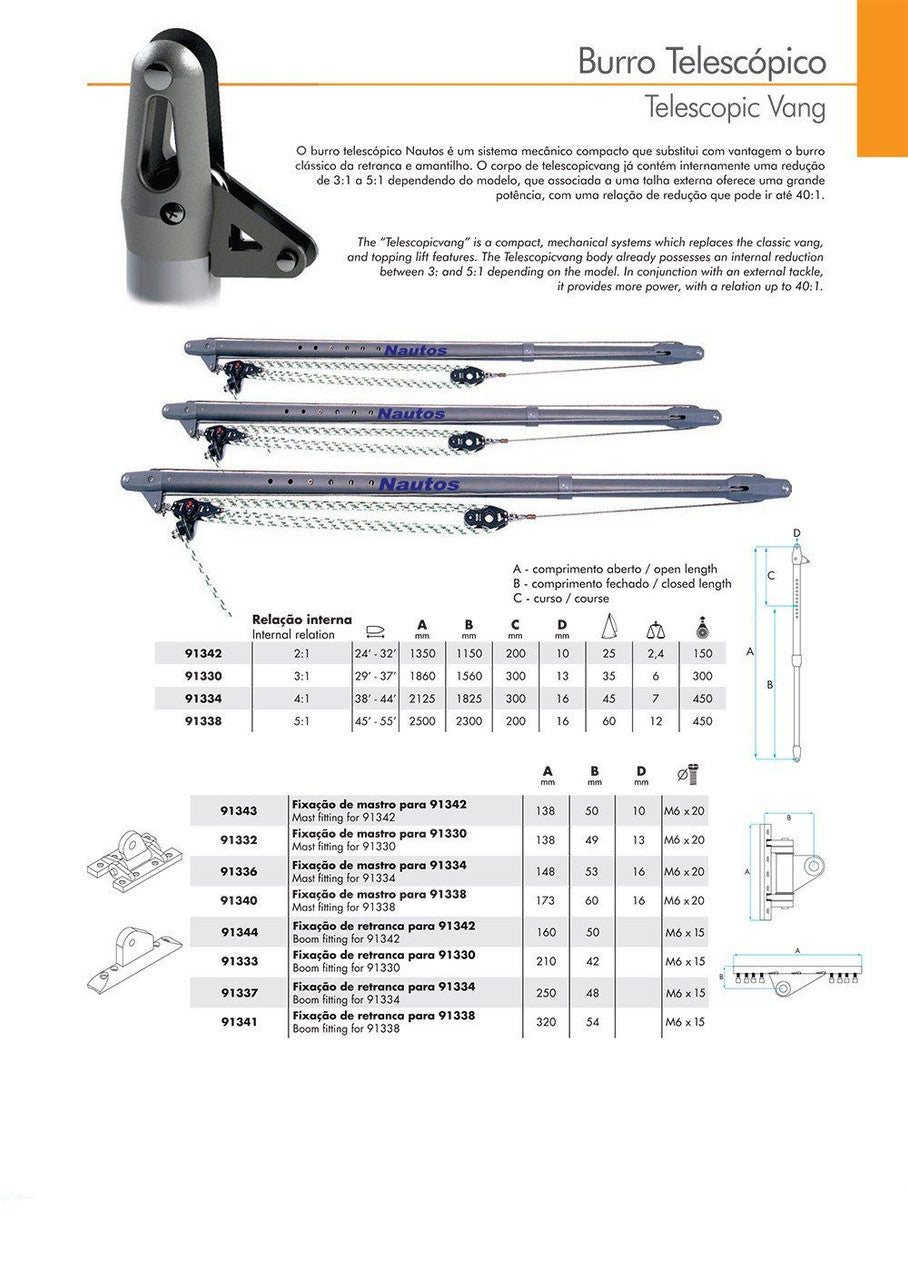

The "telescopicvang" is a compact, mechanical system which replaces the classic vang, and topping lift features. The telescopicvang body already possesses an internal reduction (between 3: and 5:1 depending on the model). In conjunction with an external tackle, it provides more power, with a relation up to 4:1, making it an economical and viable alternative to hydraulic systems. The stainless steel spring allows for the boom to be positioned at the ideal height substituting the topping lift. This facilitates the reefing maneuvers, eliminating the need for an additonal operation.

Recommended for boats in between 38 to 44 feet lenght

Technical Description
83.66 in
2125 mm
71.85 in
1825 mm
0.63 in
16 mm
11.81 in
300 mm
15.43 lb
7000 g
