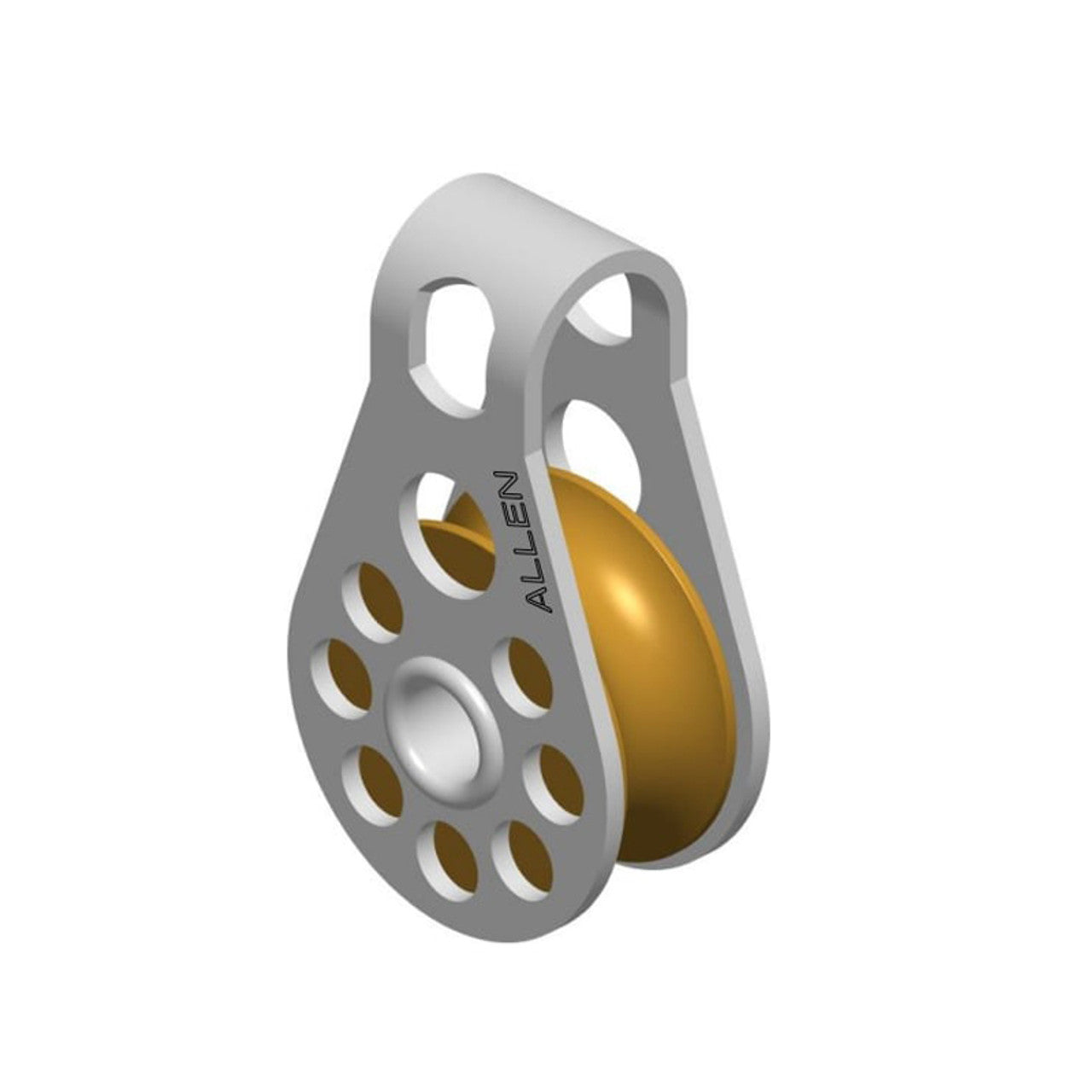

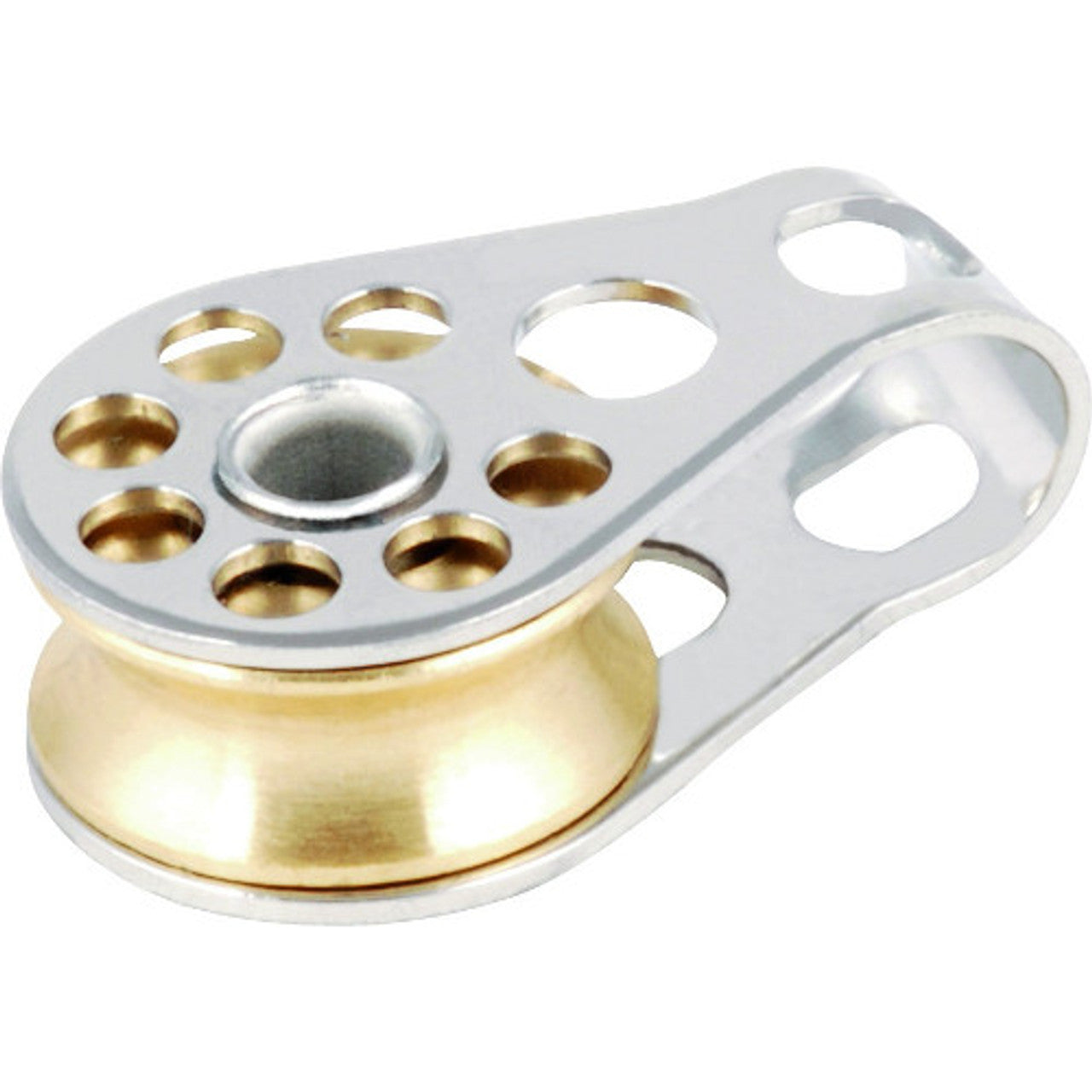

Allen Brothers 16MM Plain Block Single Brass
Allen Brothers 16 mm Plain Block Single Brass
16 mm Single Plain Bearing Block With Brass Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
The brass sheave allows this block to be paired with wire as well as offering more durability over the acetal sheave.
Plain Bearing The brass sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Lightweight Strap The body of this block is formed in stainless steel for a lightweight yet robust frame.

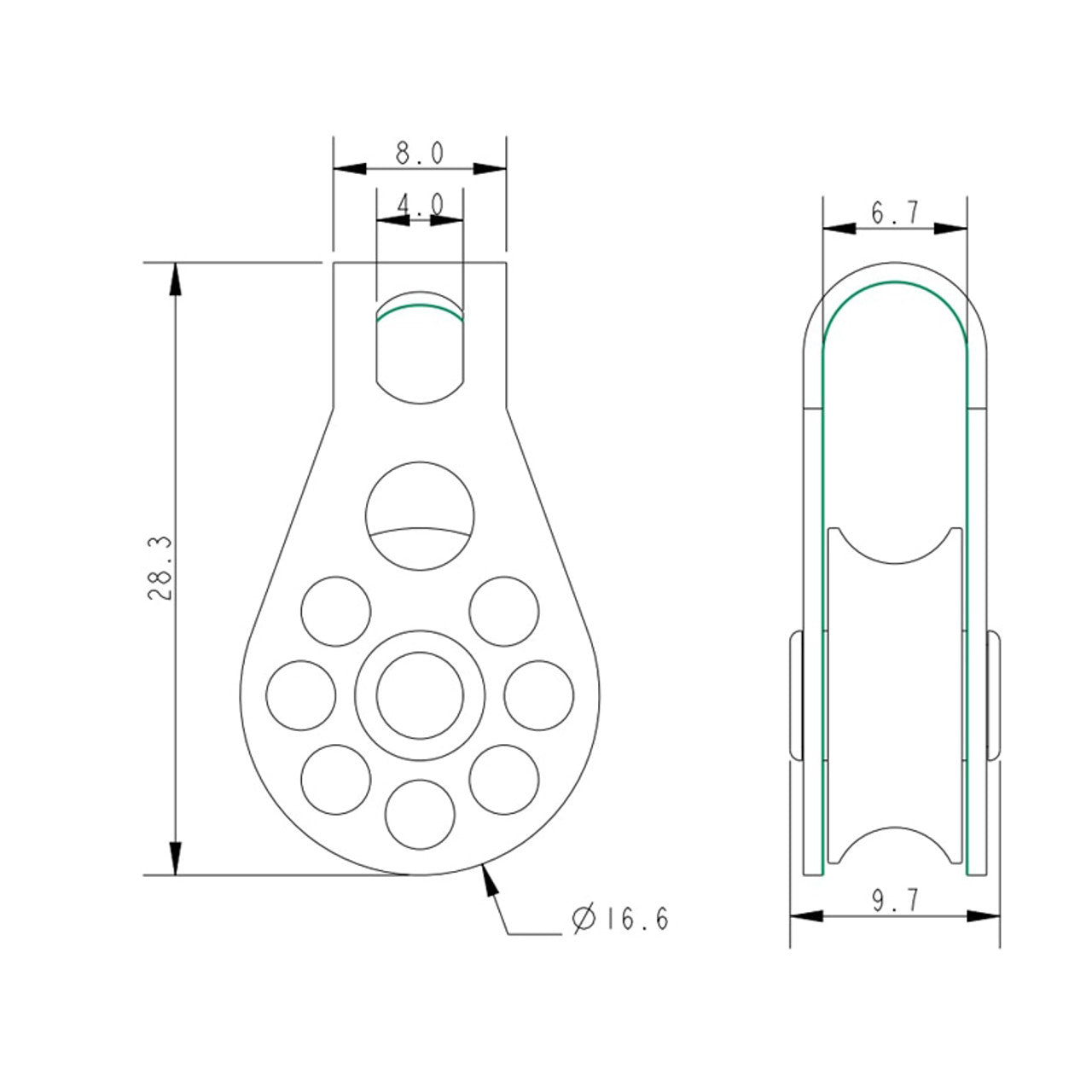

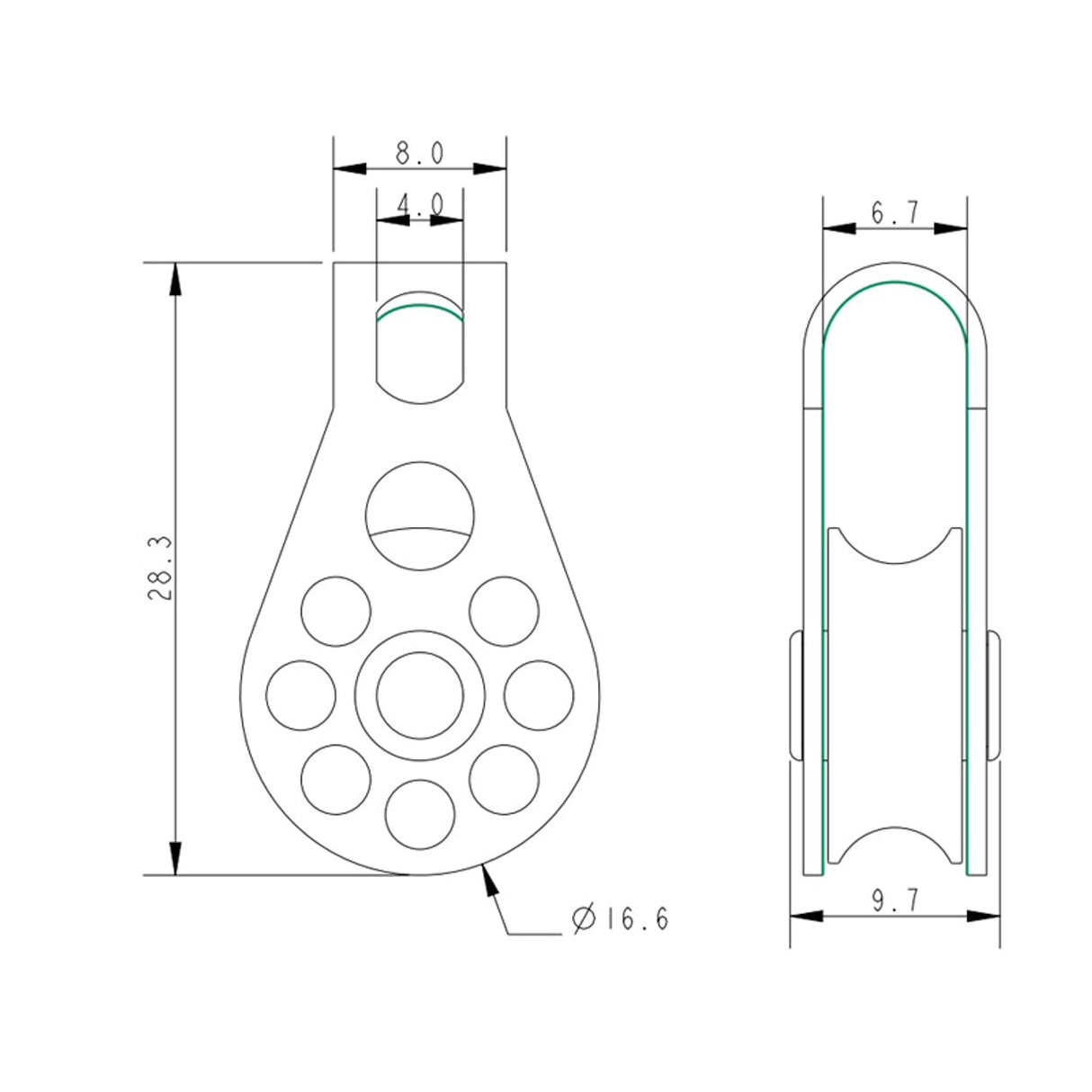

Technical Description
| Sheave Diameter | 16 mm |
| Maximum Line Diameter | 5 mm |
| To Suit Shackle Pin | 4 mm |
| Breaking Load | 275 kg |
| Length | 26 mm |
| Weight | 9 g |
| Bearing type | Plain |
| Configuration | Single |
Allen Brothers 16 mm Plain Block Single Brass
16 mm Single Plain Bearing Block With Brass Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
The brass sheave allows this block to be paired with wire as well as offering more durability over the acetal sheave.
Plain Bearing The brass sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Lightweight Strap The body of this block is formed in stainless steel for a lightweight yet robust frame.
Technical Description
| Sheave Diameter | 16 mm |
| Maximum Line Diameter | 5 mm |
| To Suit Shackle Pin | 4 mm |
| Breaking Load | 275 kg |
| Length | 26 mm |
| Weight | 9 g |
| Bearing type | Plain |
| Configuration | Single |
