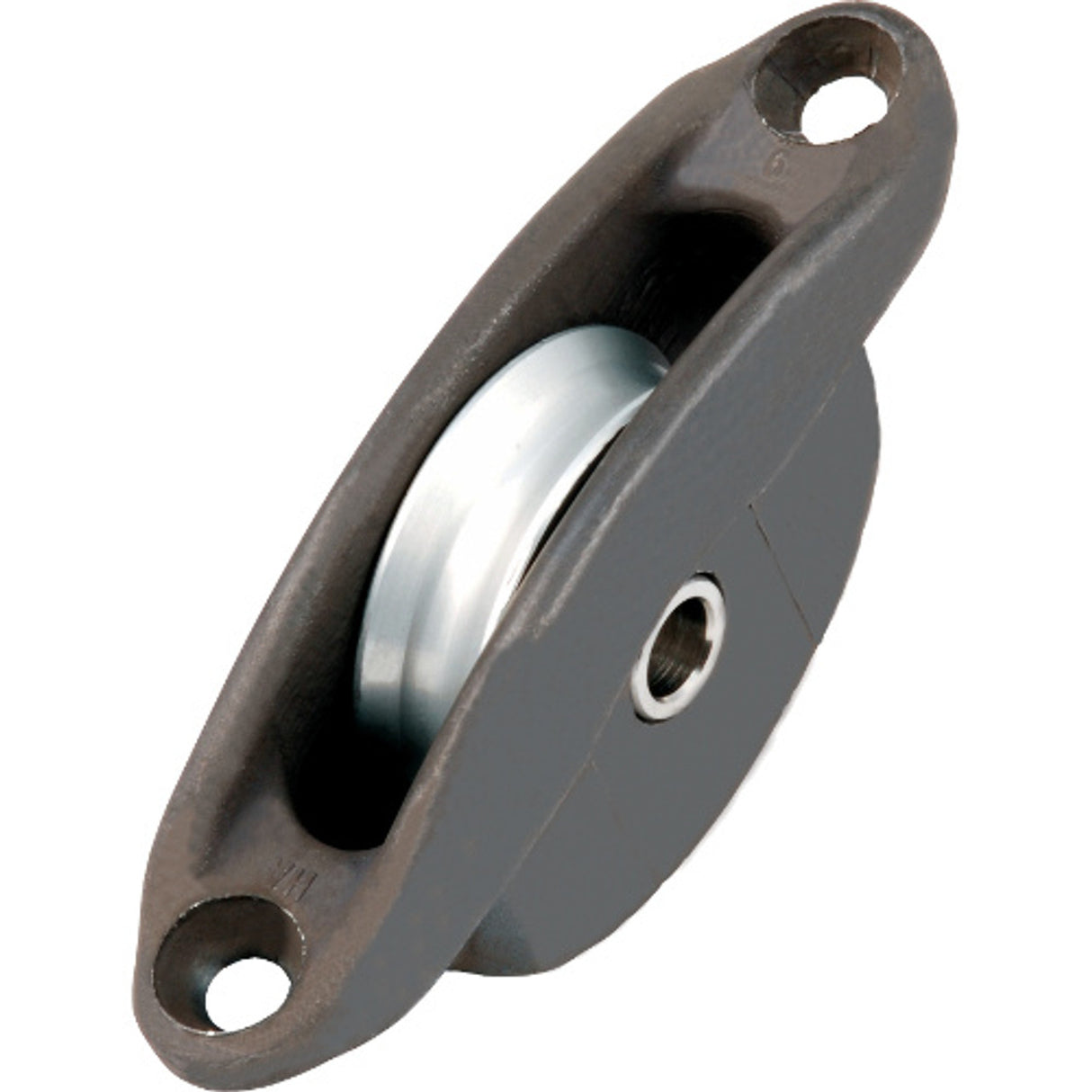

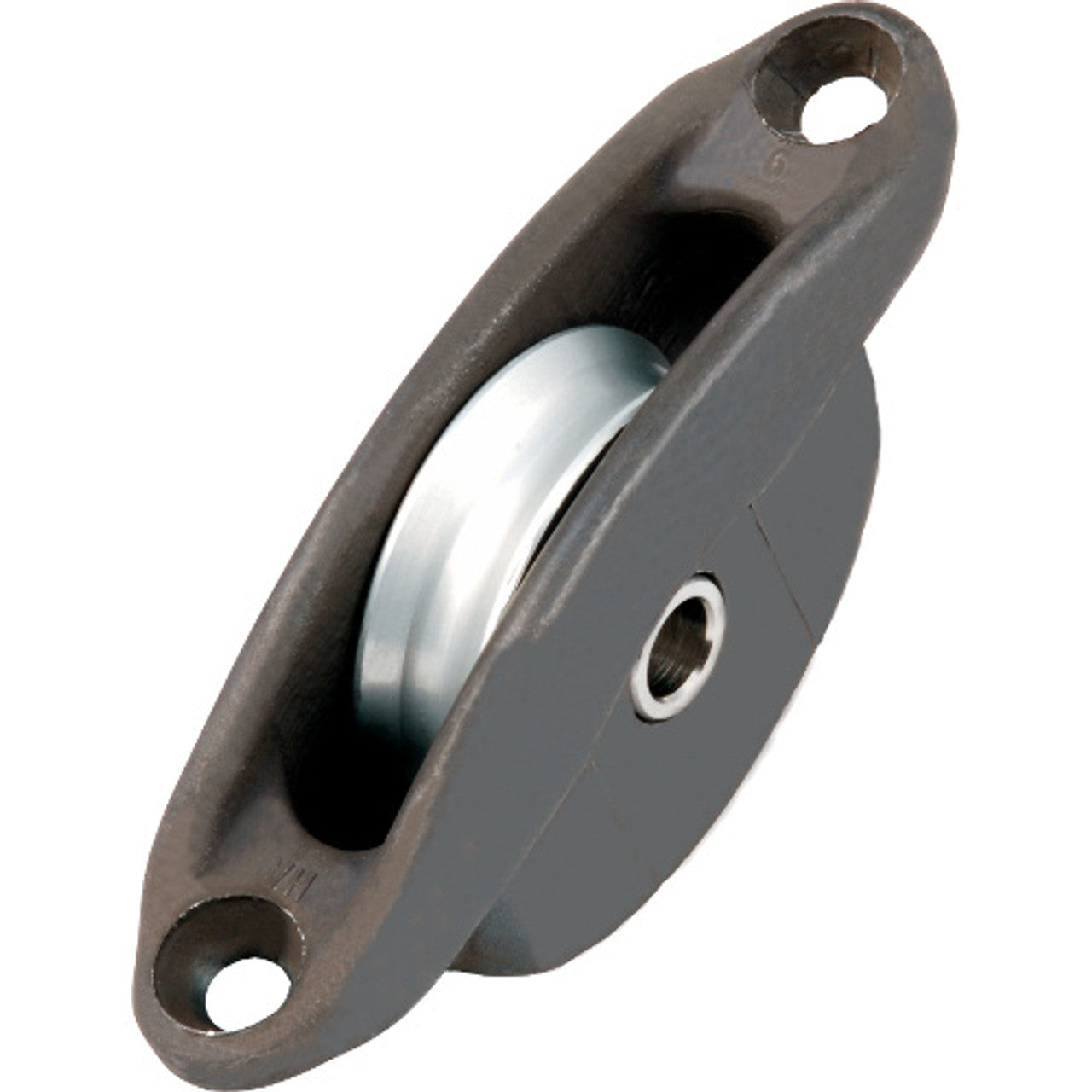

Allen Brothers 25mm X 8mm Alloy Sheave Box
Aluminium Sheave Box - Medium
Designed for routing rope or wire through masts, decks, and other structures, this Medium Aluminium Sheave Box features a durable forged aluminium body and a removable axle pin, allowing for quick maintenance or easy sheave replacement. The axle pin is securely retained by the mounting surface for a simple and reliable installation.
Ideal for sailboat masts and a wide range of marine and industrial applications, the sheave box is available with multiple sheave options to suit different performance requirements.
Key Features:
- Forged aluminium body for strength and durability
- Removable axle pin for easy maintenance and sheave changes
- Suitable for rope and wire applications
- Ideal for sailboat masts, decks, and other installations
- Choice of sheave materials and bearing types
- Maximum working load up to 300kg (depending on sheave option)
Sheave Options:
- Acetal Plain Bearing: Lightweight, low-maintenance option suitable for rope and wire applications.
- Stainless Steel Dynamic: Features patented Dynamic Bearing Technology for exceptionally low friction and smooth operation, ideal for fast-running systems.
- Aluminium Plain Bearing: Robust option suited to highly statically loaded applications while maintaining compatibility with rope and wire.

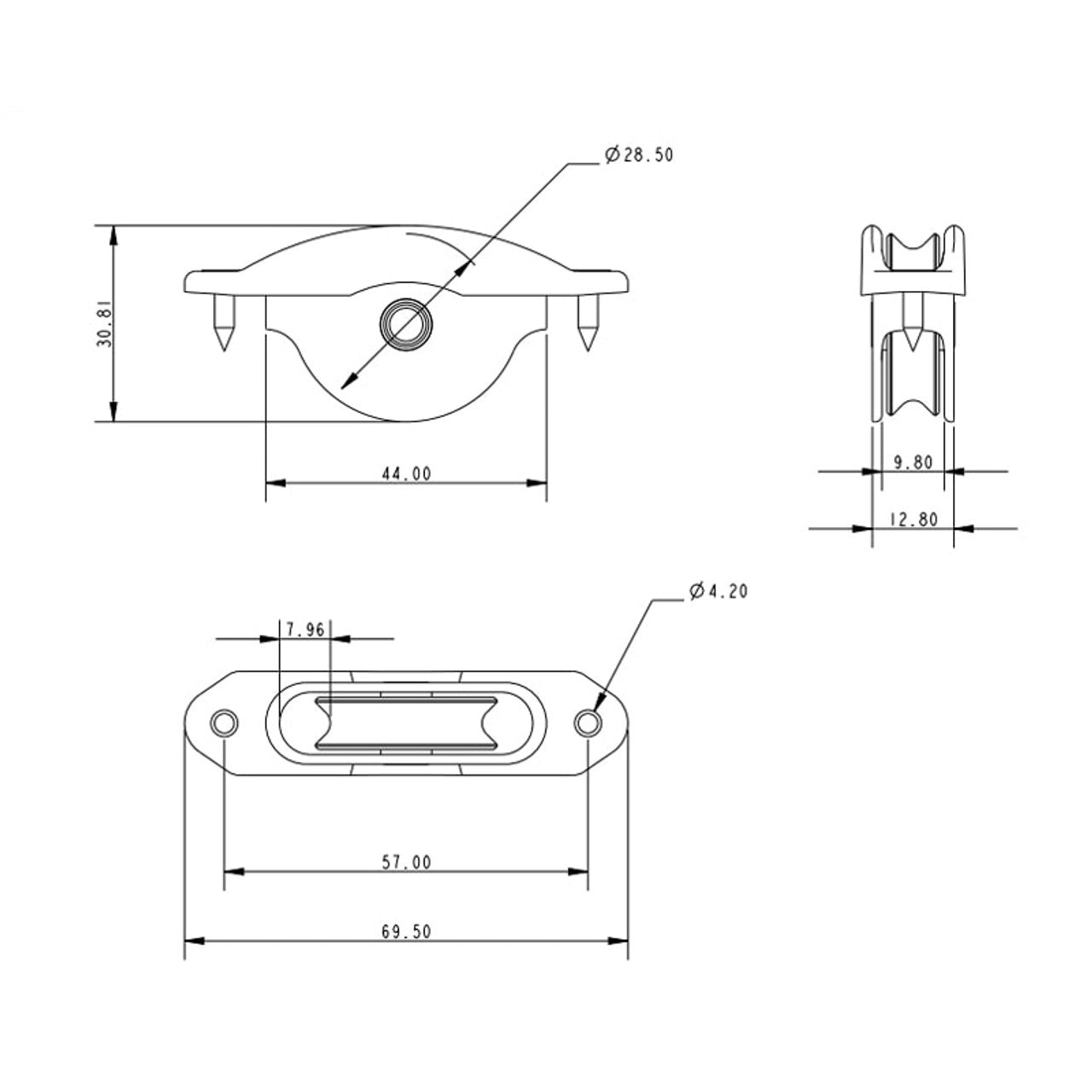

Technical Description
| Breaking Load | 670 kg |
| Fixing Hole Diameter | 4 mm |
| Height | 30 mm |
| Hole Pitch | 57 mm |
| Length | 66 mm |
| Maximum Line Diameter | 7 mm |
| Maximum Working Load | 300 kg |
| Sheave Diameter | 25 mm |
| Sheave Material | Acetal |
| Sheave width | 8 mm |
| Slot Size | 44 x 13 |
| Width | 12 mm |
| Weight | 32 g |
