Allen Brothers 30MM Dynamic Triple Fixed Eye

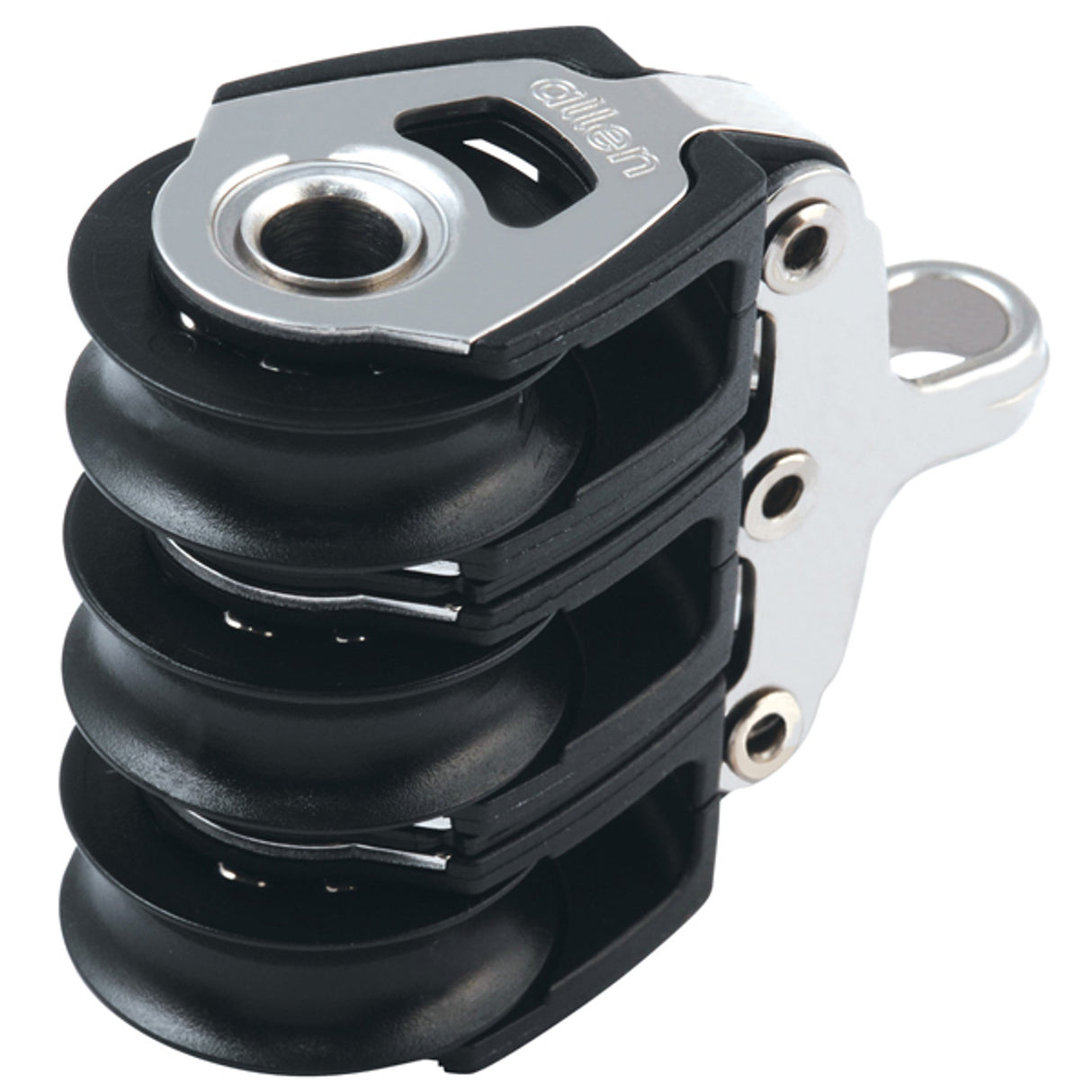

30mm Triple Dynamic Block
The 30mm Triple Dynamic Block is a compact, triple-sheave pulley designed for smooth, low-friction performance. Lightweight yet strong, it is ideal for applications using smaller diameter lines. Triple blocks are commonly used in cunningham, vang, and other high-purchase systems where increased mechanical advantage is required.
Key Features
- Triple-sheave design for high-purchase systems
- Low-friction, fast-rolling performance
- Lightweight and durable construction
- Ideal for cunningham, vang, and other control line applications
- Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for superior load capacity and longevity
- Ultra-Strap Technology provides enhanced strength, durability, and rope-friendly performance
- Integrated Becket with a large central rivet, providing a lightweight and rope-friendly attachment point for cascade systems
- Designed for smooth, efficient line handling and continuous sheave movement
- Suitable for demanding marine applications requiring reliable performance and increased purchase capability
Technical Description
| Breaking Load | 1750 kg |
| Maximum Working Load | 490 kg |
| Sheave Diameter | 30 mm |
| Length | 63 mm |
| Weight | 104 g |
| Accessories | None |
| Bearing Type | Dynamic |
| Configuration | Triple |
| Maximum Line Diameter | 8 mm |
