Allen Brothers 30mm Single With Swivel Fork

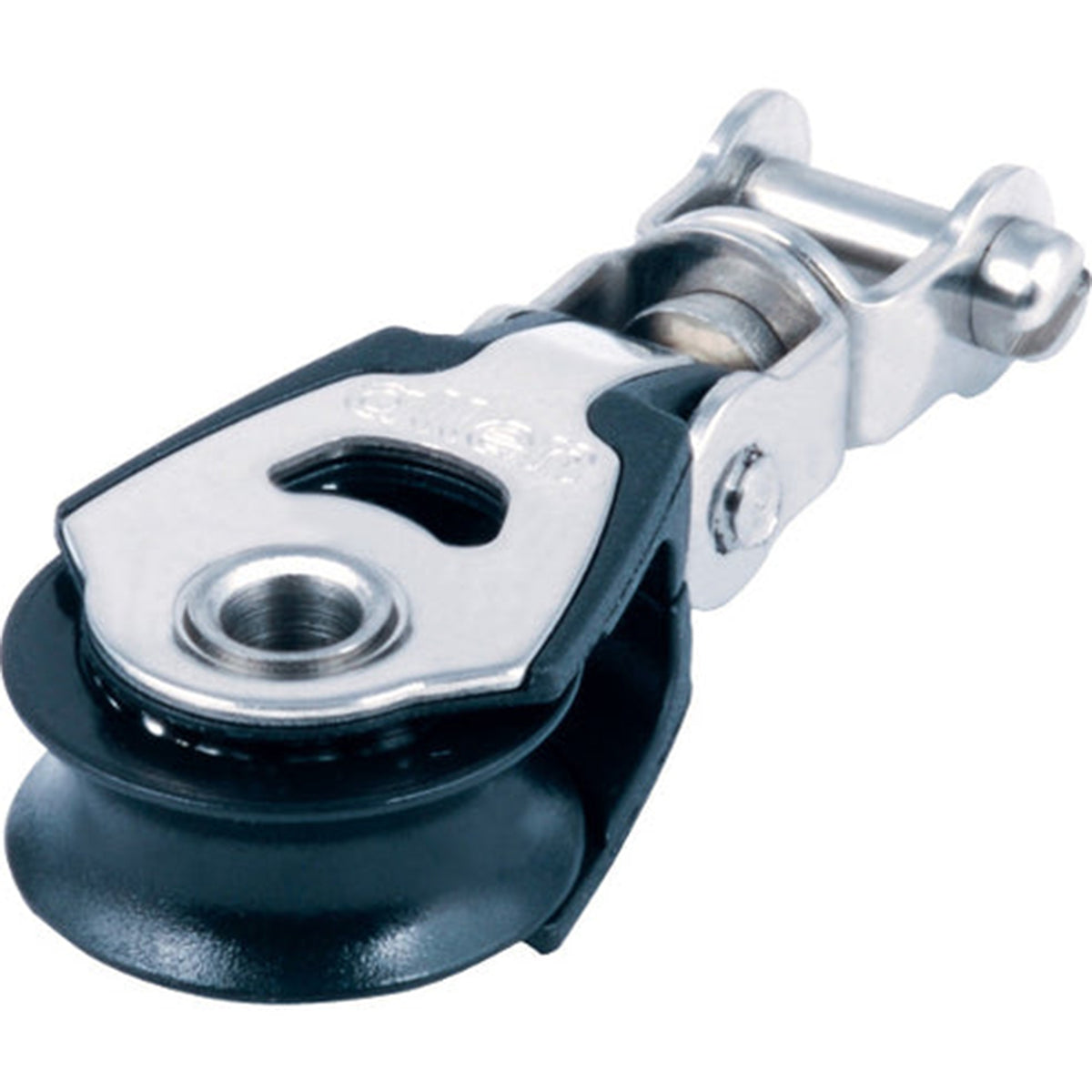

30mm Single Dynamic Block With Swivel Fork Head
The 30mm Single Dynamic Block With Swivel Fork Head is a versatile, low-friction pulley designed for smooth and efficient line handling. Part of our Dynamic range, it is ideal for applications requiring constant sheave movement and changing load angles.
The integrated swivel fork head allows the block to rotate and articulate, ensuring optimal alignment with the line and reducing side loading.
Key Features
- Single-sheave design for smooth and efficient line handling
- Swivel Fork Head with threaded pin for secure attachment
- Swivels and articulates to align with changing load directions
- Low-friction, fast-rolling performance
- Lightweight and durable construction
- Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for superior load capacity and longevity
- Integrated Becket with a large central rivet, providing a lightweight and rope-friendly attachment point for cascade systems
- Ideal for control line applications requiring flexibility, smooth operation, and reliable load alignment
- Suitable for use in demanding marine environments with smaller diameter rope lines
Technical Description
| Breaking Load | 400 kg |
| Maximum Working Load | 140 kg |
| Sheave Diameter | 30 mm |
| Length | 63 mm |
| Weight | 36 g |
| Accessories | Swivel, Fork |
| Bearing Type | Dynamic |
| Configuration | Single |
| Maximum Line Diameter | 8 mm |
| Width | 30 mm |
| Height | 15 mm |
