Allen Brothers 38mm x 12mm Nylon Sheave Box – Large
Allen Brothers 38mm x 12mm Nylon Sheave Box – Large

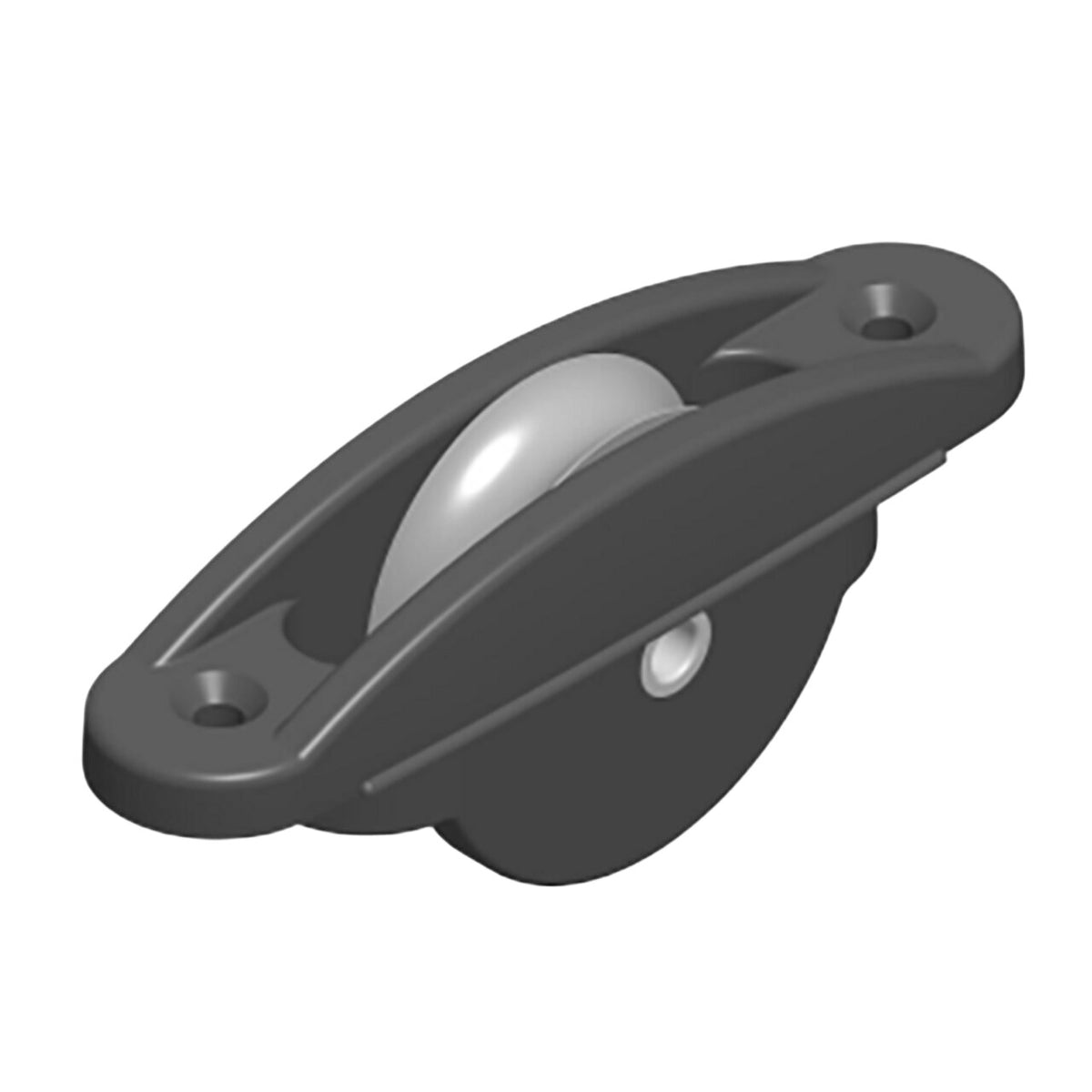

Nylon Sheave Box – Large
lightweight nylon body sheave box with a choice of two sheaves.
With an easy to remove axle pin, sheaves can be maintained or swapped very simply. The axle pin is held in place by the surface the box is mounted to.
Ideal for installation into sailboat masts, but also suitable for use in the deck of a boat or any other surface which requires rope or wire to be passed through.
This sheave box is designed for to be lightweight and used with lower-loading applications.
Key Features:
Various Sheave Options: A choice of two sheave materials to suit your rigging.
Versatile Compatibility: Suitable for a wide range of mast sizes and applications.
Sheave Options:
Acetal Plain Bearing: The lightweight, low-maintenance option. Suitable for maximum working loads up to 300Kg. Can be used with rope and wire.
Aluminium Plain Bearing: The heavy-duty option. Suitable for maximum working loads up to 350kg. Can be used with rope and wire.

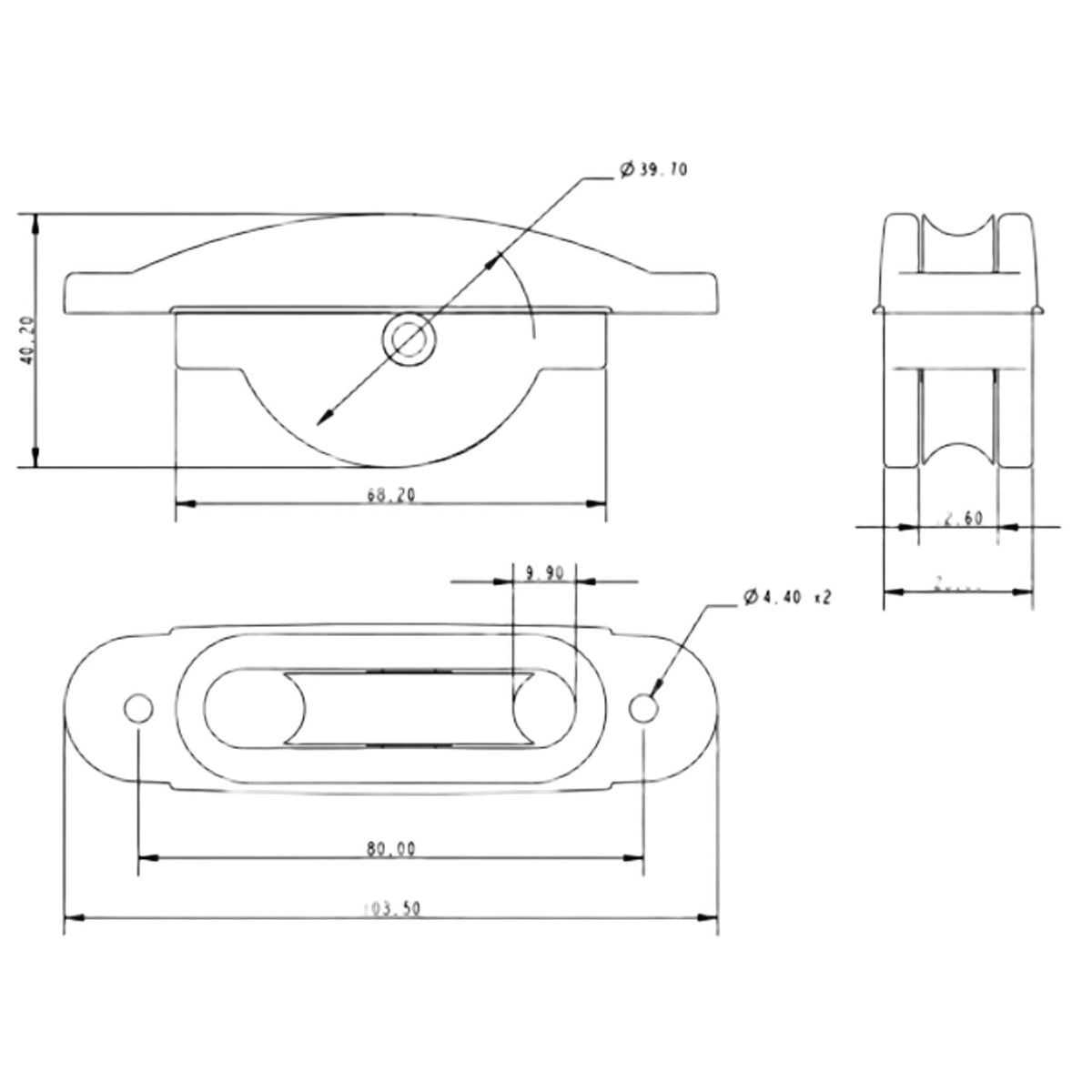

Technical Description
| Sheave Width mm | 12 |
| Sheave Diameter mm | 38 |
| Sheave Material | Acetal / Aluminium |
| Slot Size mm | 70 x 22 |
| Fixing Hole Centres mm | 80 |
| Fixing Hole Diameter mm | 4 |
| Maximum Working Load Kg | 350 |
| Breaking Load Kg | 700 |
| Length mm | 103 |
| Line Diameter mm | 3 - 11 |
| Overall Length mm | 100 |
| Weight g | 41 |
