Allen Brothers 38mm X 6mm Low Profile Ball Bearing Alloy Sheave Box
Sale price
$77.74
Regular price
$97.18
Unit price
Unavailable
Availability: Please contact us to confirm availability or discuss item replacements. Please note that certain products may have an estimated arrival time of 30 days and are not available for expedited shipping.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Allen Brothers 38mm X 6mm Low Profile Ball Bearing Alloy Sheave Box
Sale price
$77.74
Regular price
$97.18
Unit price
Unavailable

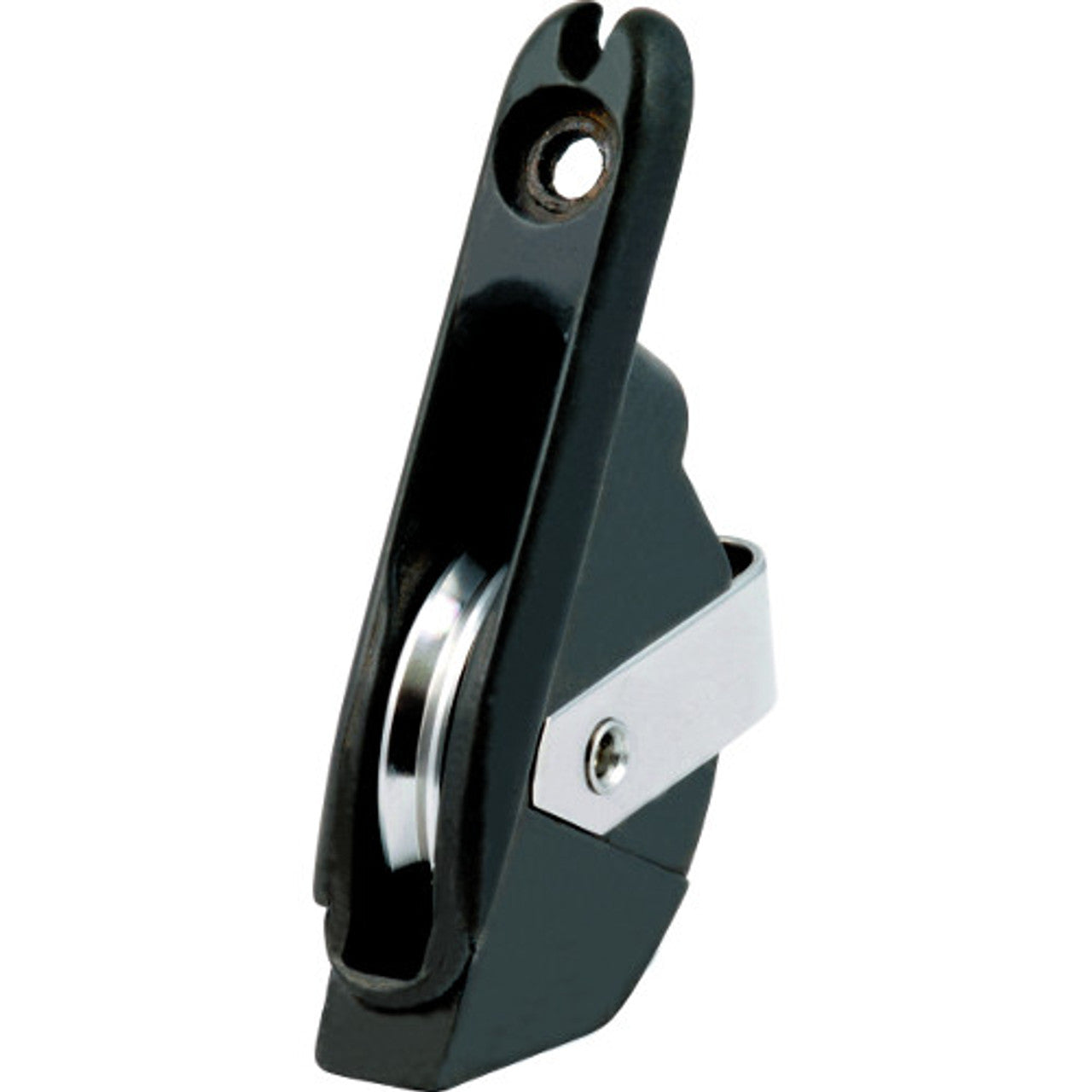

Low Profile Sheave Box ? Medium
- Low profile hook in aluminium body sheave box with a choice of two sheaves.
- This sheave box is designed to ?hook? into the mast. The lower lip sits inside the mast whilst the top is fixed via a rivet of screw.
- Suited for installation into masts or booms. The sheave is not removable.
Key Features:
- Durable Construction: The body is made from cast aluminium for long-lasting performance.
- Various Sheave Options: A choice of two sheave materials to suit your specific application.
- Versatile Compatibility: Suitable for a wide range of mast or boom sizes and applications.
Sheave Options:
- Acetal Plain Bearing: The lightweight, low maintenance option. Suitable for maximum working loads up to 400Kg. Can be used with rope and wire.
- Stainless Steel Dynamic: The lowest friction for maximum performance option. Suitable for maximum working loads up to 450Kg. Ideal for fast running systems. Can be used with rope and wire.

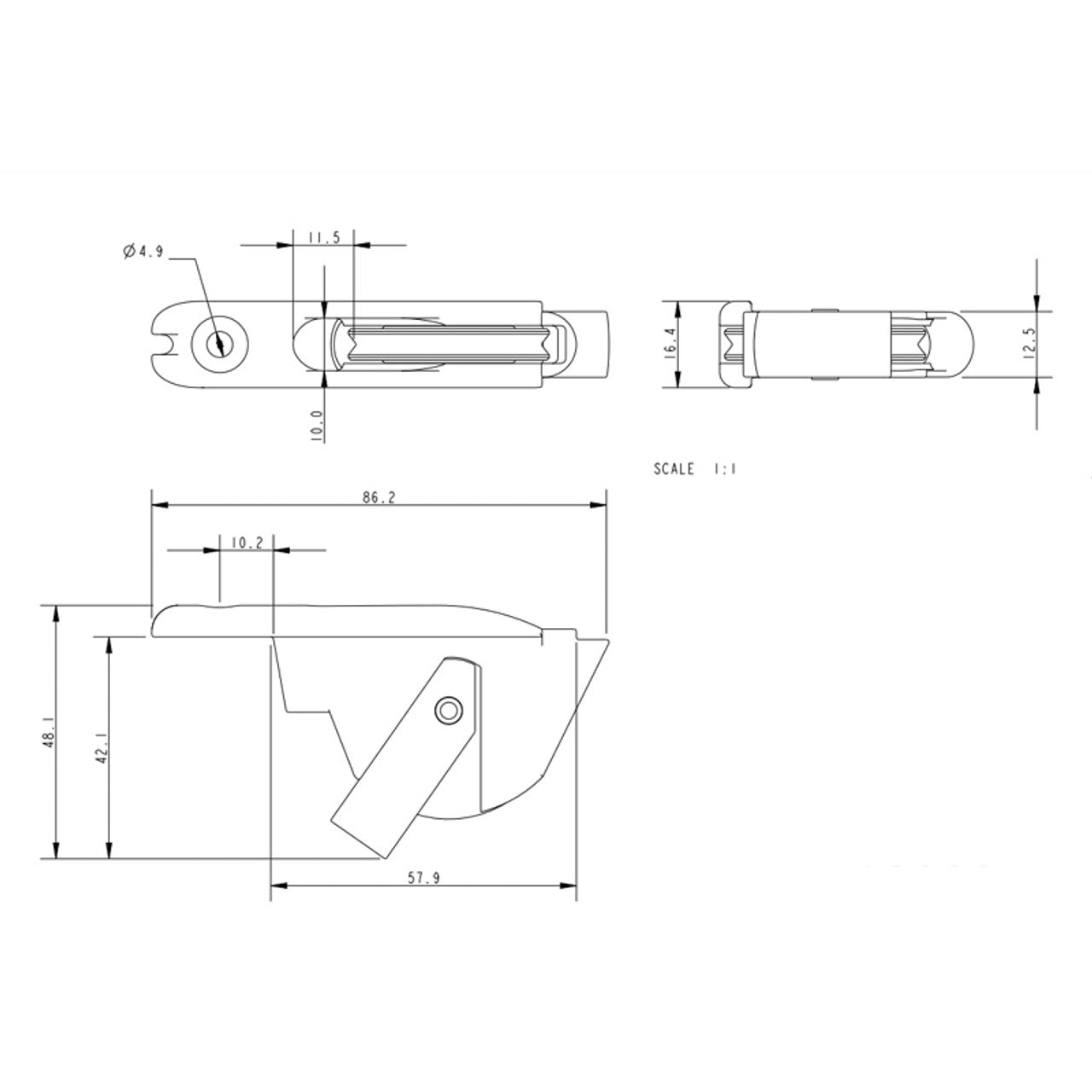

Technical Description
0.24 in
6 mm
1.50 in
38 mm
-
Stainless Steel
2.28 x 0.51 in
58 X 13 mm
0.15 lb
68 g
0.20 in
5 mm
992.08 lb
450 kg
1984.16 lb
900 kg
