Allen Brothers 4-6MM Thru Deck Swivel Cleat
Allen Brothers 4-6MM Thru Deck Swivel Cleat

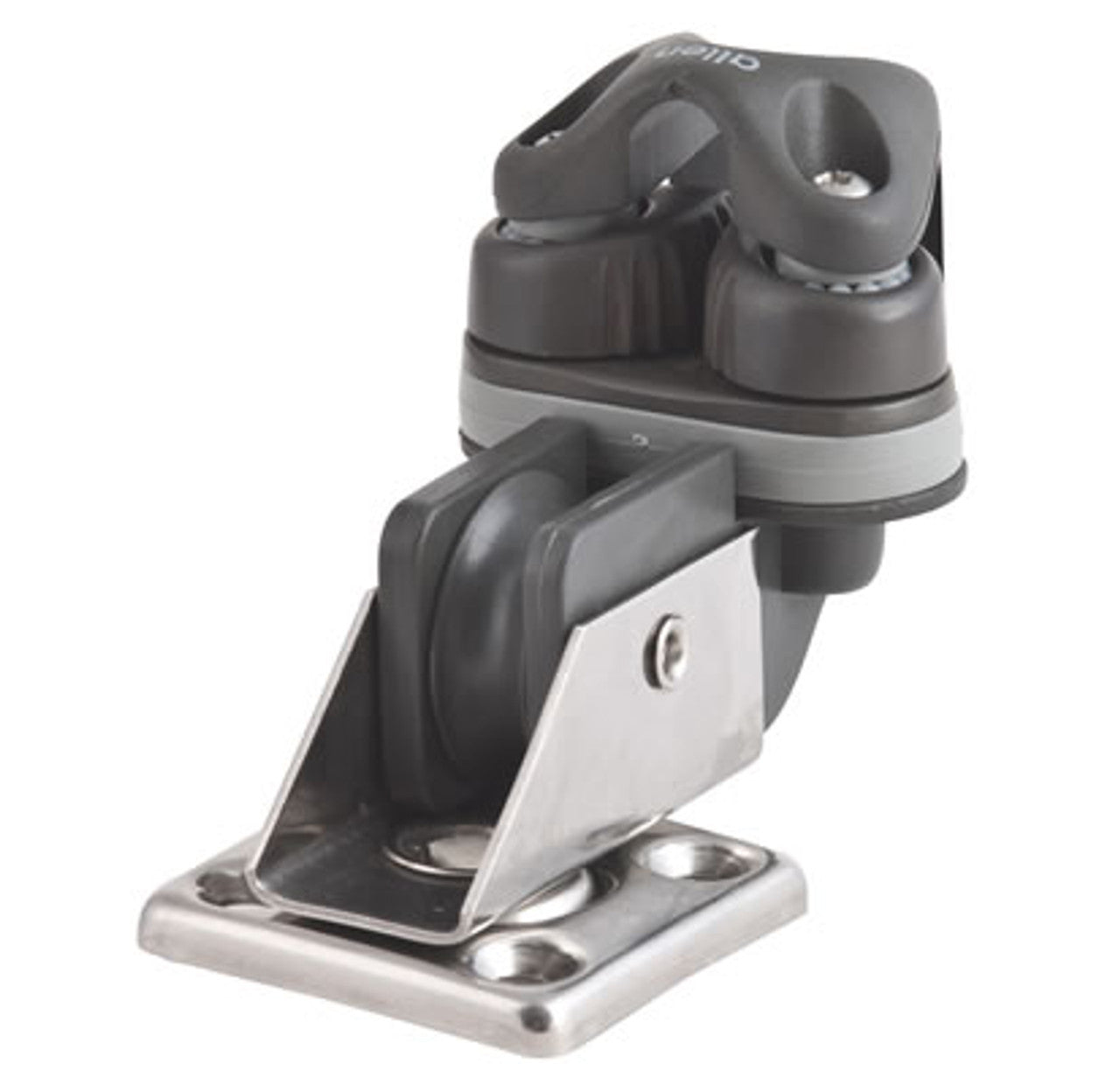

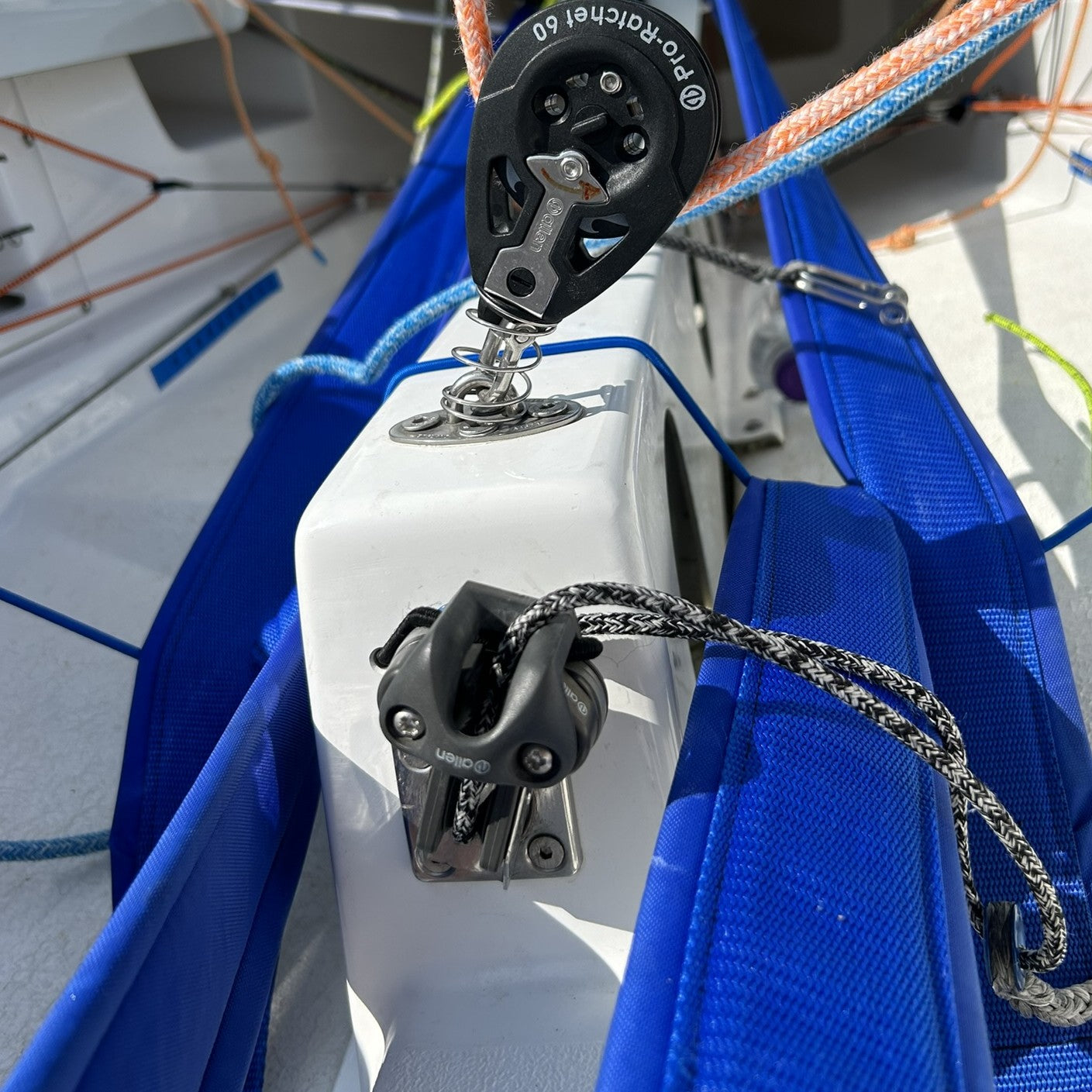

The Through Deck Swivel Cleat is designed for systems in which the line feeds up through the deck and into the sheave from below. With a full 360° rotation, it delivers smooth, tangle-free operation and precise control from any angle—perfect for coarse rig tension on a Snipe, as well as through-deck mainsheet or jib sheet systems.
This model features a 30mm ball bearing sheave for low-friction line handling and an A..77 Small Aluminium Ball Bearing Cam Cleat for secure, reliable cleating.
Suitable for lines up to 6mm.
Features:
- Full 360° rotation for smooth, unrestricted movement
- 30mm ball bearing sheave for reduced friction
- A..77 Small Aluminium Ball Bearing Cam Cleat
- Designed for lines fed from underneath the deck
- Ideal for coarse rig tension, through-deck mainsheet, and jib systems
- Max line size: 6mm

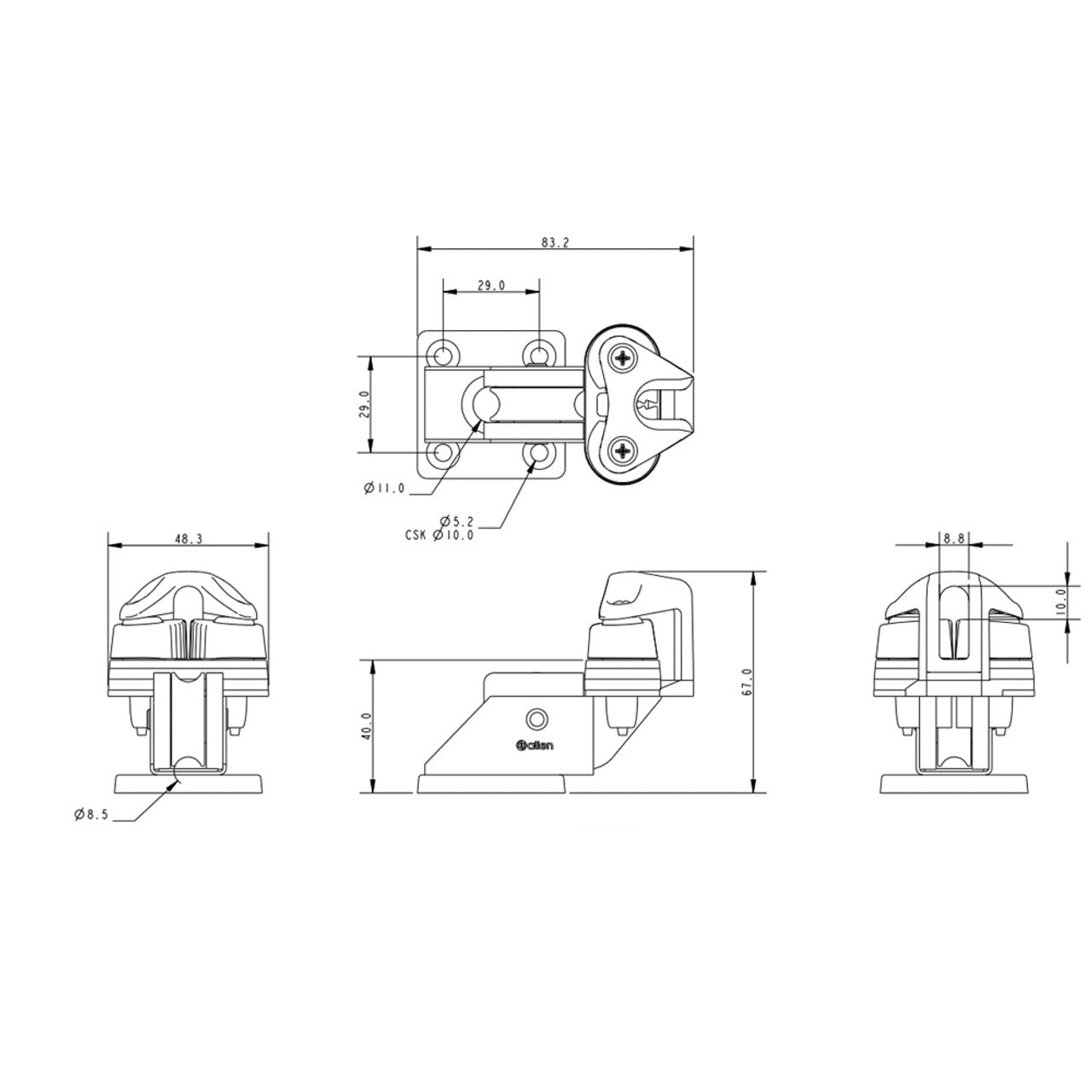

Technical Description
| Maximum Line Diameter | 4 - 6mm |
| Height | 63mm |
| Fixing Hole Centres | 4 x 29mm |
| Fixing Hole Diameter | 5mm |
| Cam Cleat | A..77 |
| Length | 200mm |
| Weight | 120g |
