Allen Brothers 40MM Dynamic Ezi-Ti
Allen Brothers 40MM Dynamic Ezi-Ti

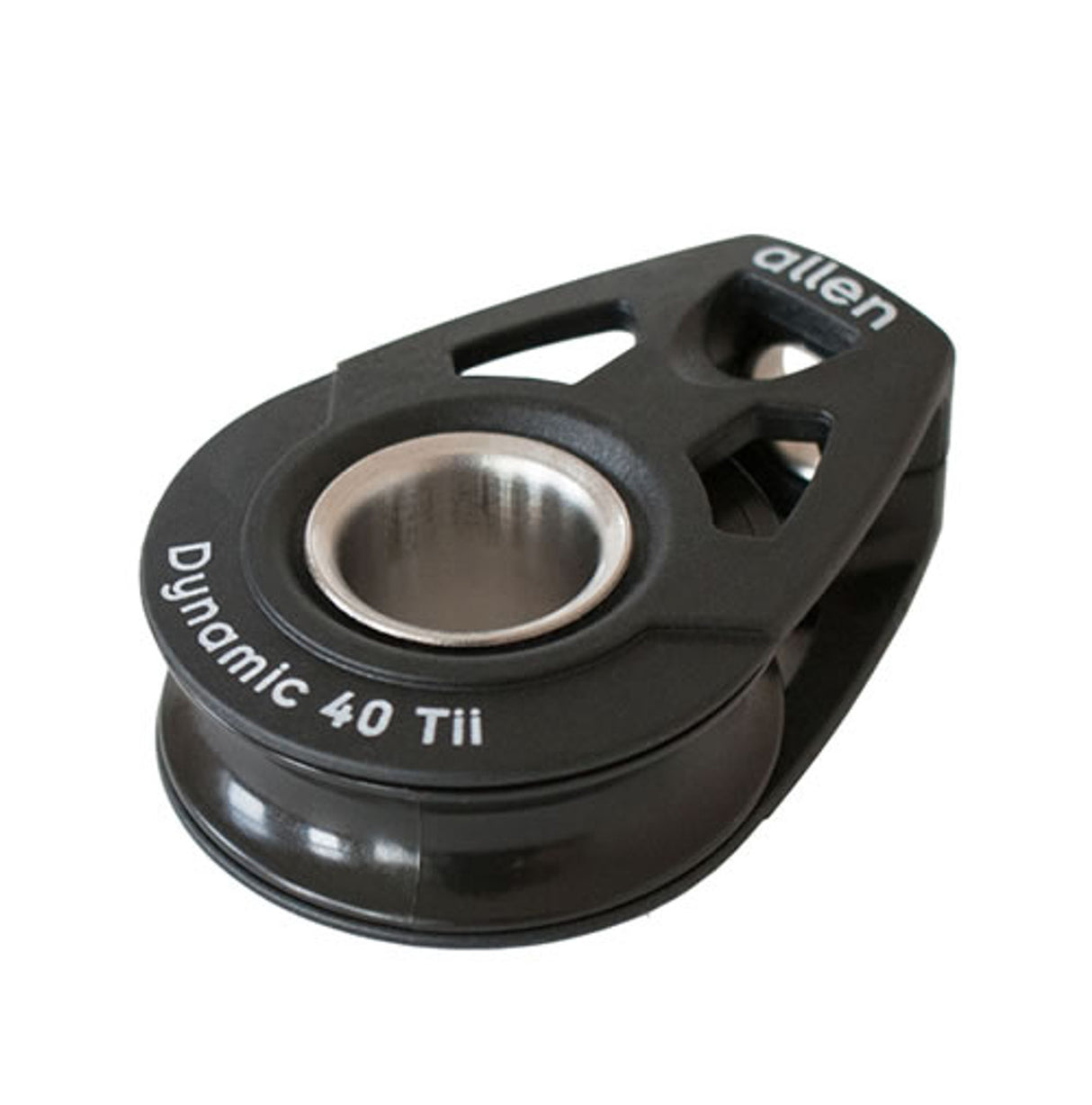

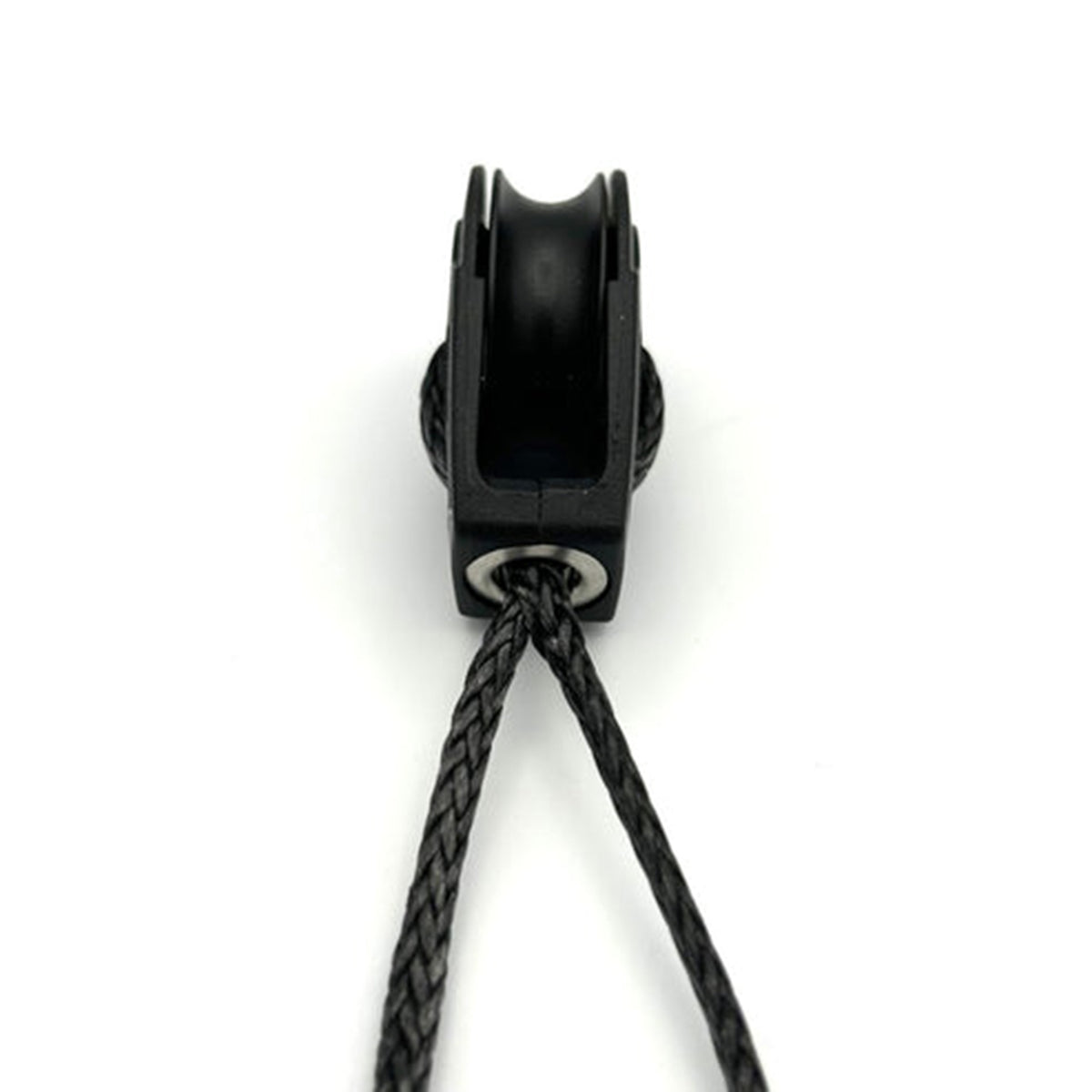

40mm Single Dynamic Tii-On Block

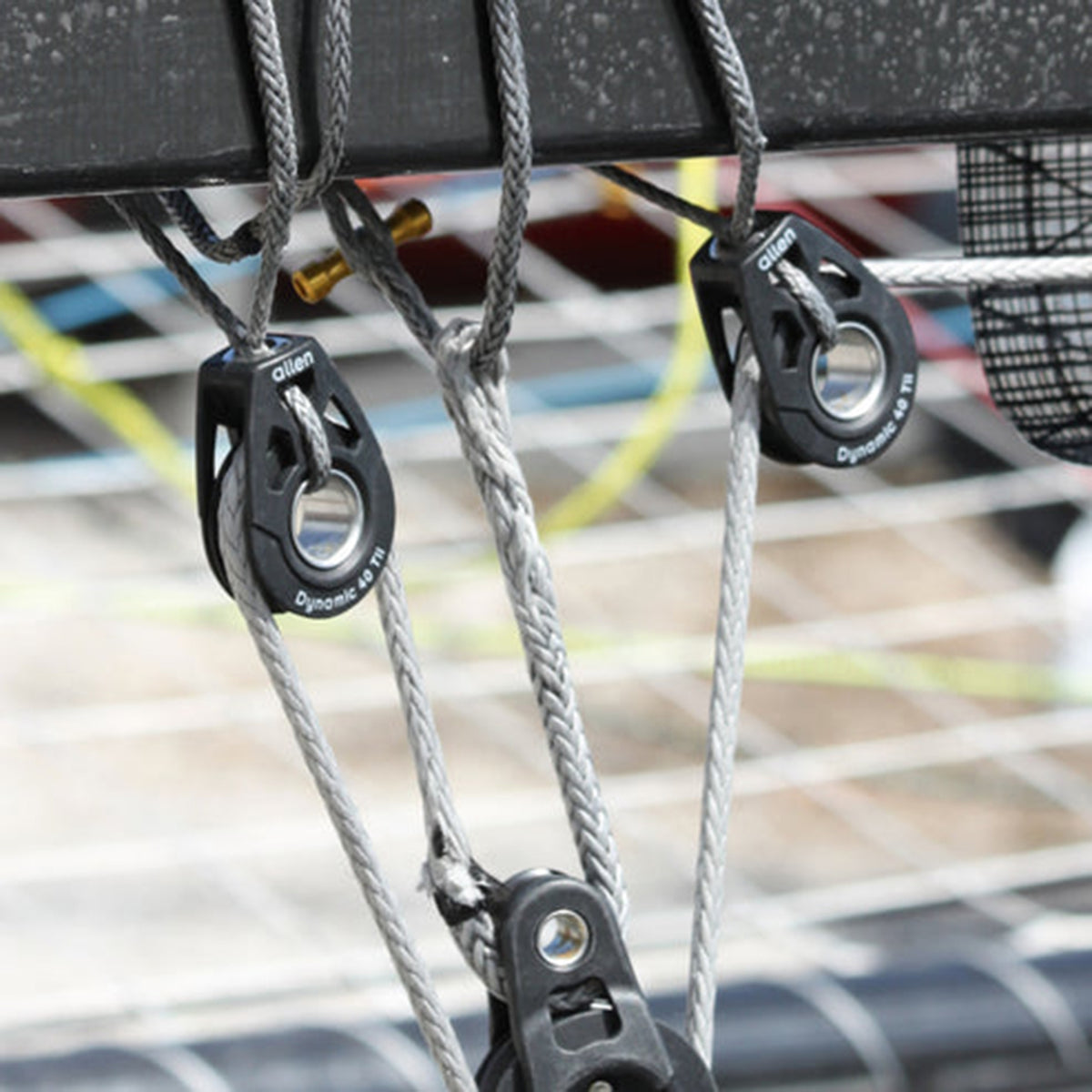

The 40mm Single Dynamic Tii-On Block is a versatile, high-performance pulley and a popular choice for dinghy mainsheet systems, as well as jib sheets, spinnaker sheets, and keelboat control lines. Designed for soft attachment systems, the stainless-steel head loop provides maximum strength, reliability, and minimal cheek separation under load while maintaining correct block orientation.

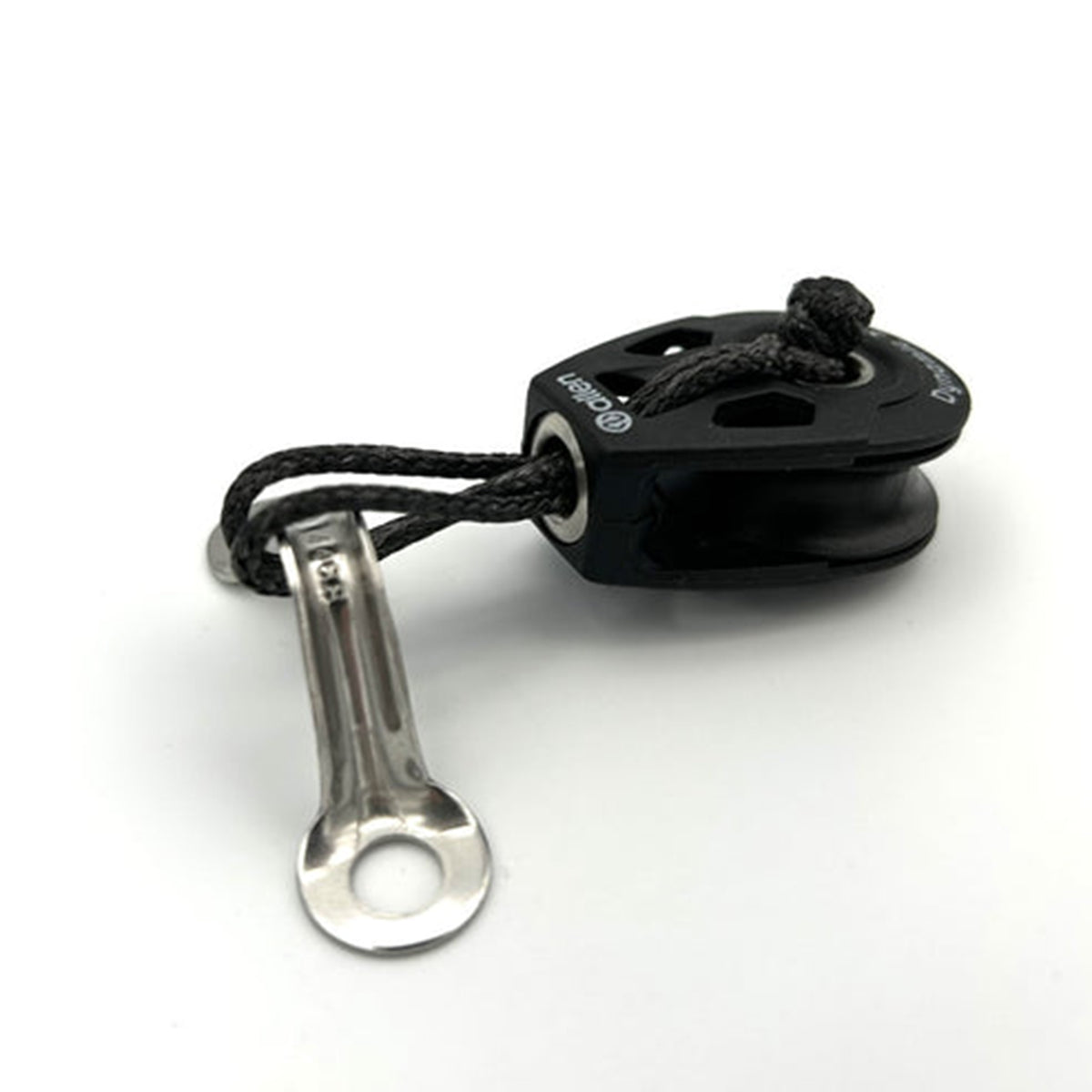

Available with or without a Tii-Shackle.
Key Features

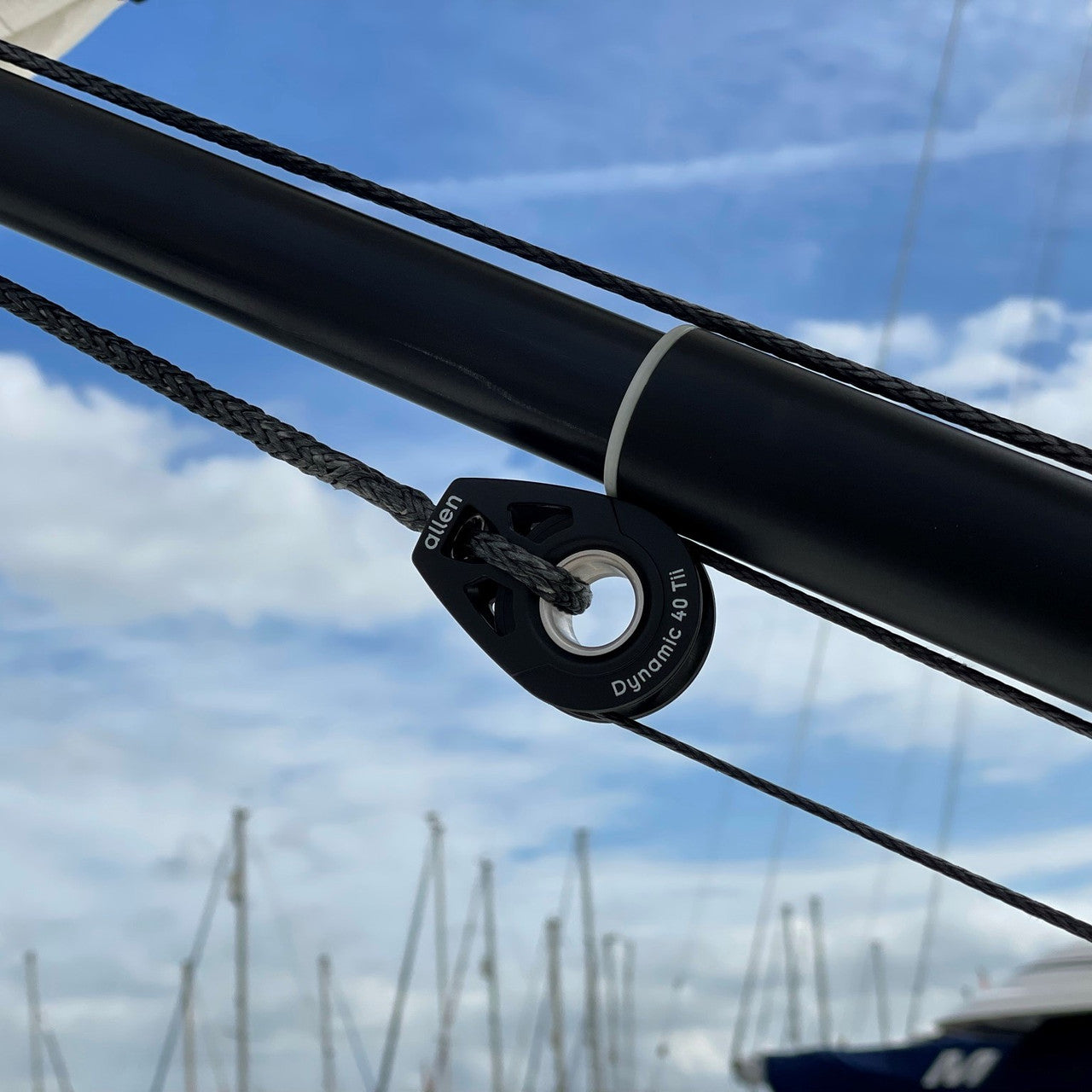

- Ideal for mainsheet, jib sheet, spinnaker sheet, and keelboat control line applications

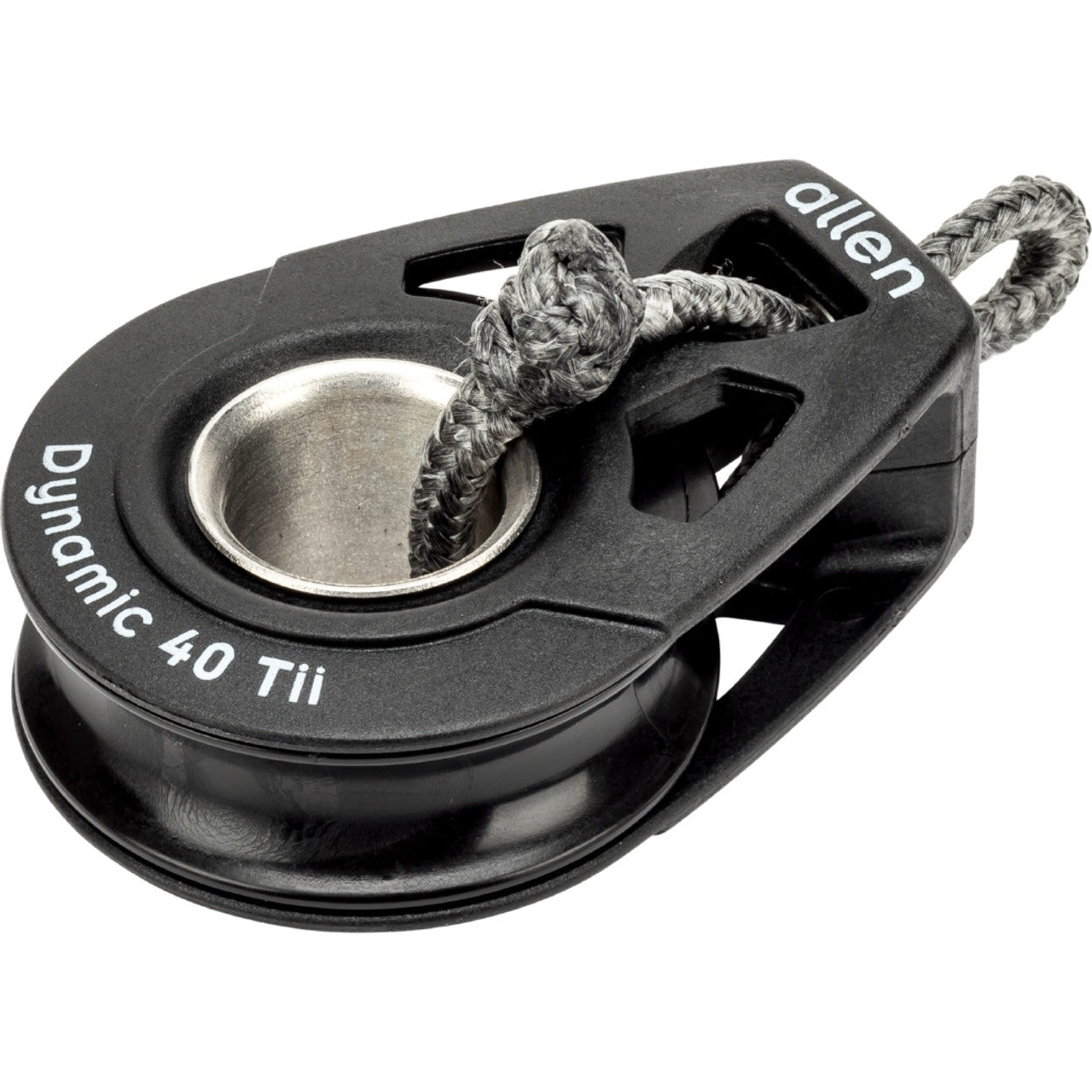

- Stainless-steel head loop for secure soft shackle attachment
- Minimises cheek separation under load and maintains correct orientation
- Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for smooth operation, superior load capacity, and long service life
- Low-friction, fast-rolling performance

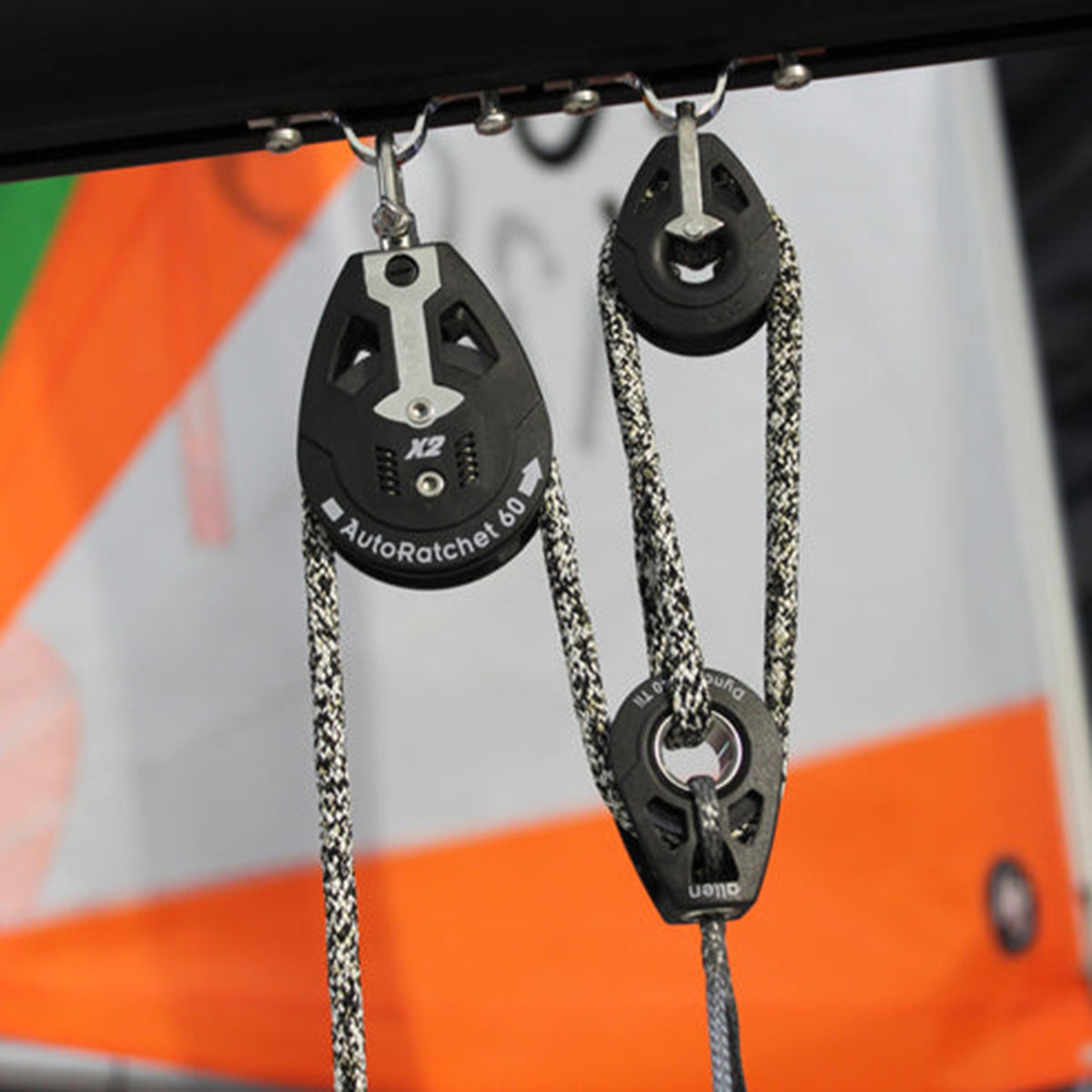

- Integrated Becket via a large central rivet, providing a lightweight and rope-friendly attachment point for cascade systems
- Lightweight, durable construction designed for demanding marine environments

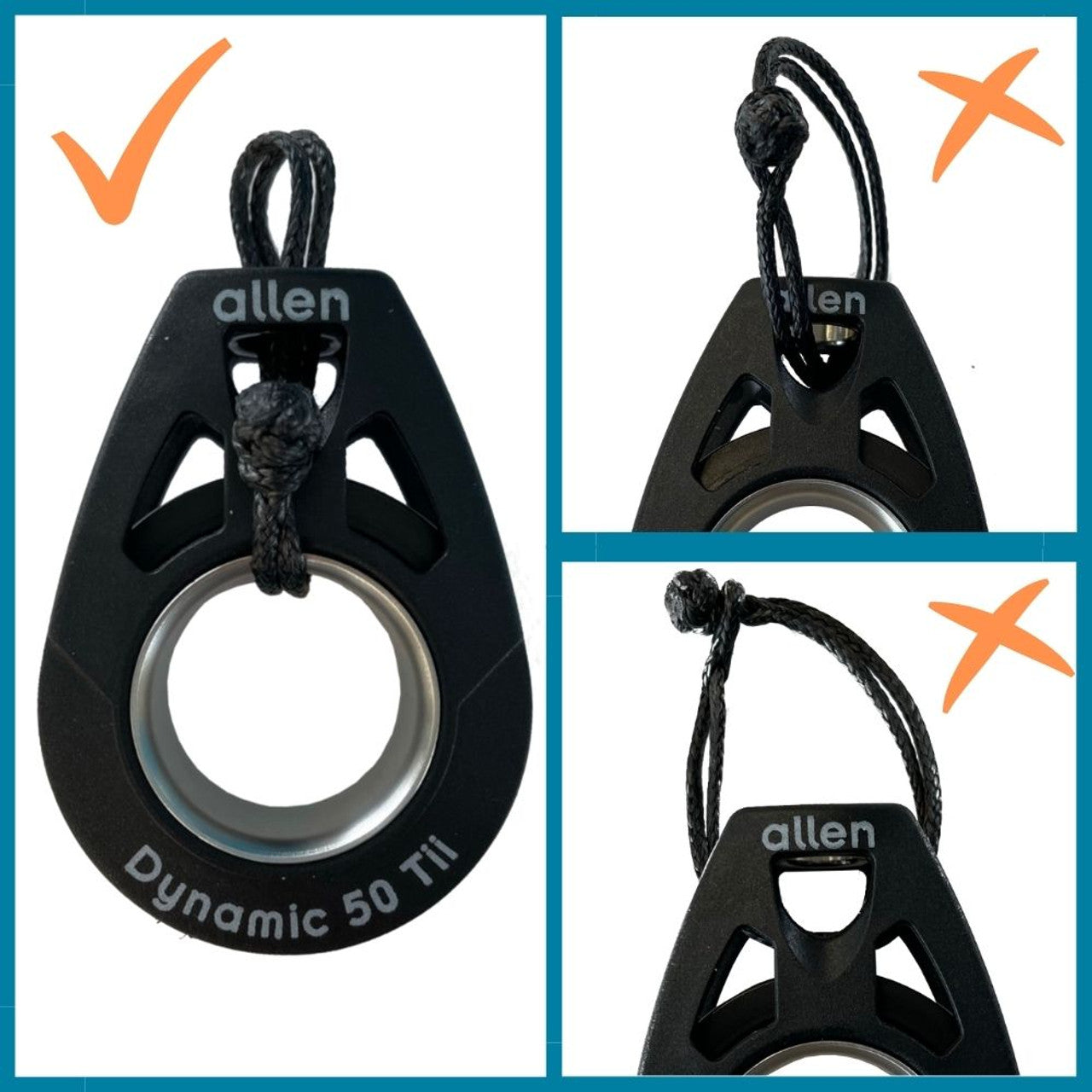

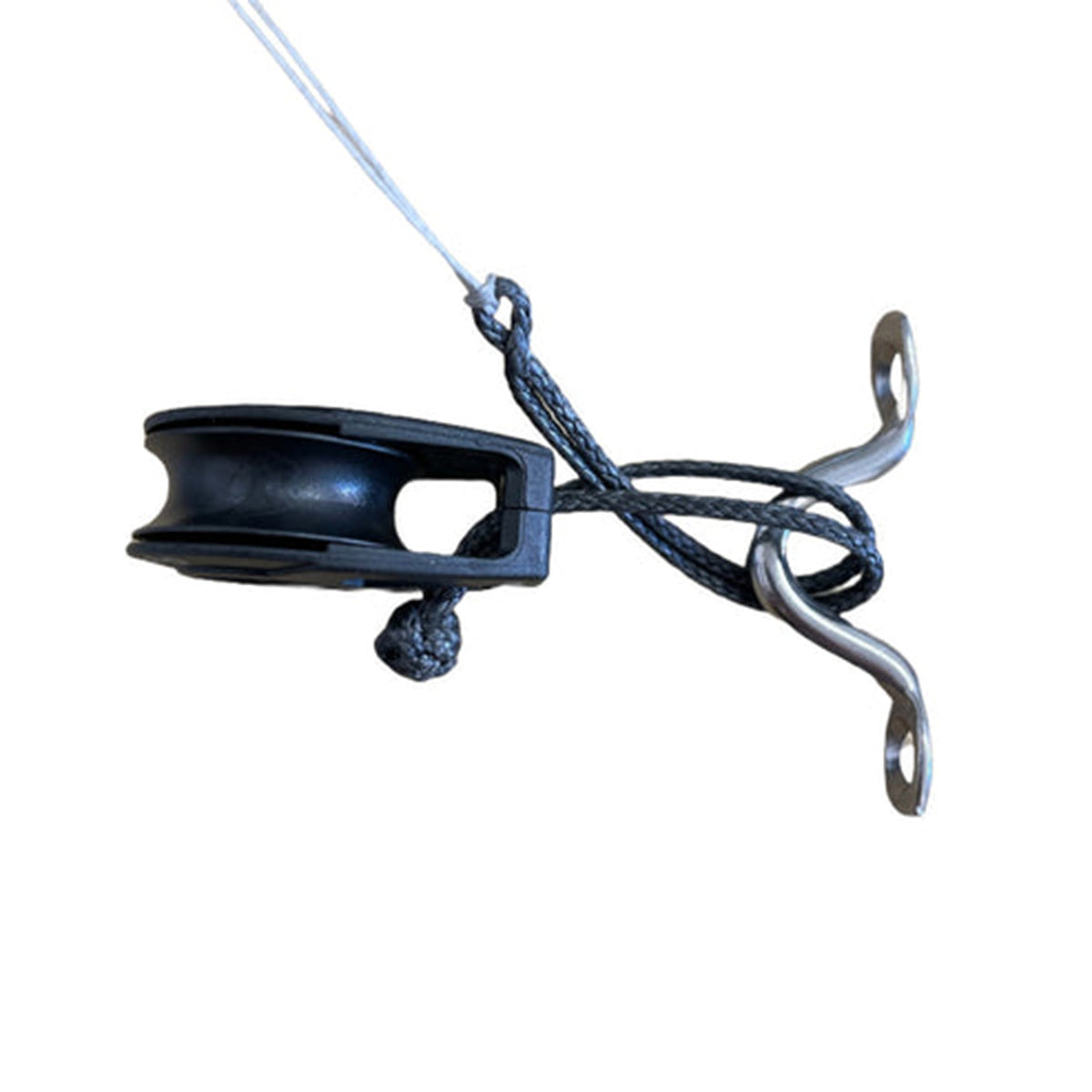

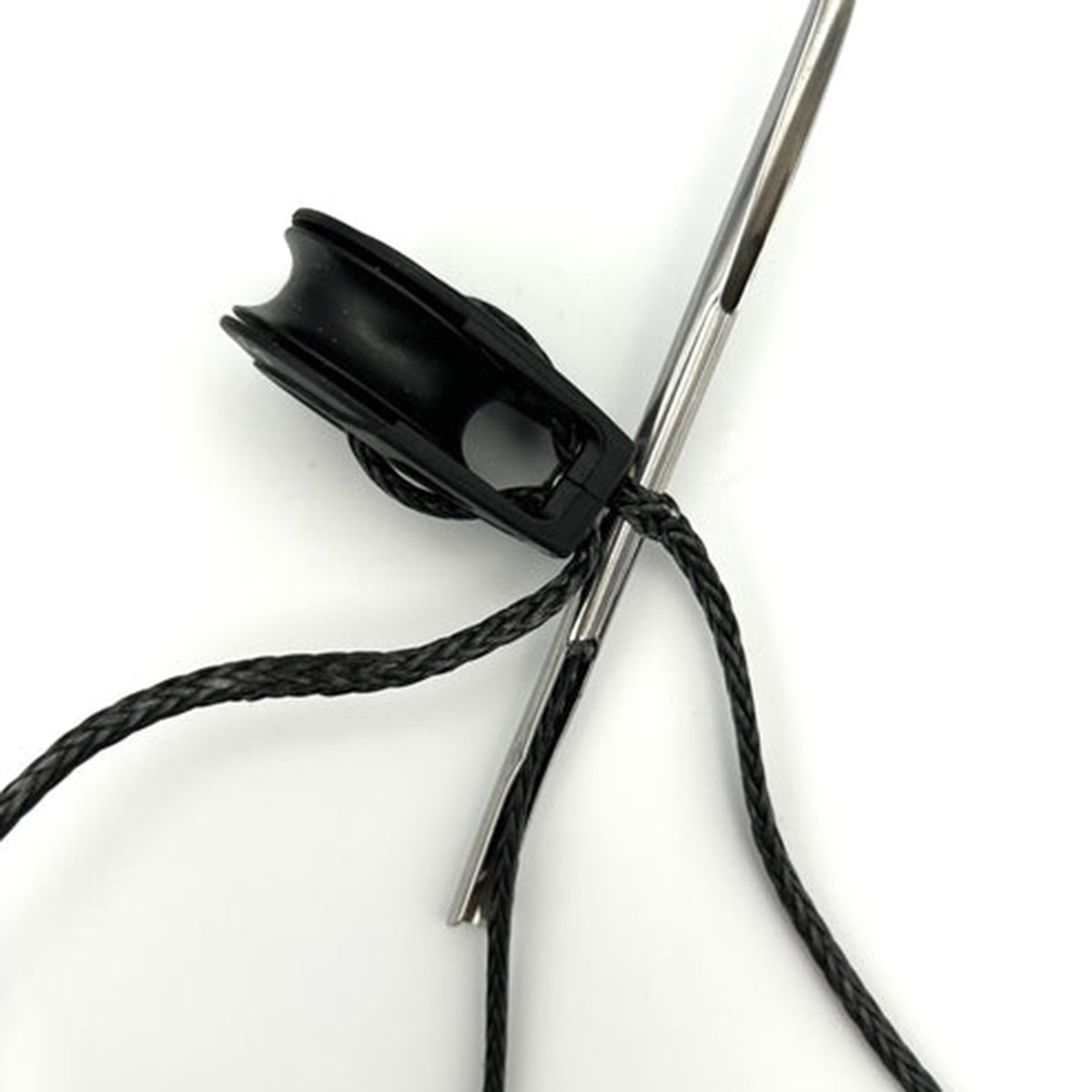

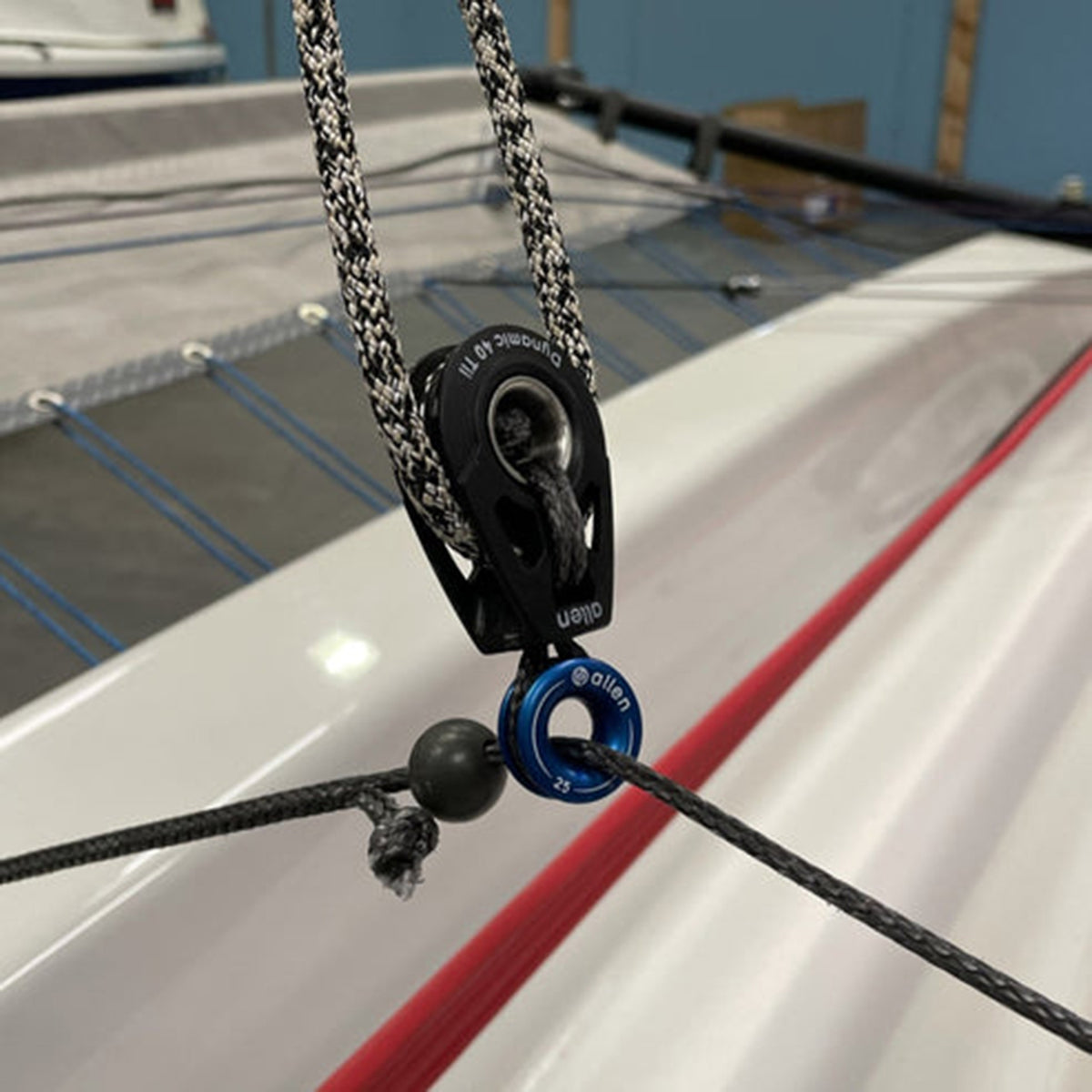

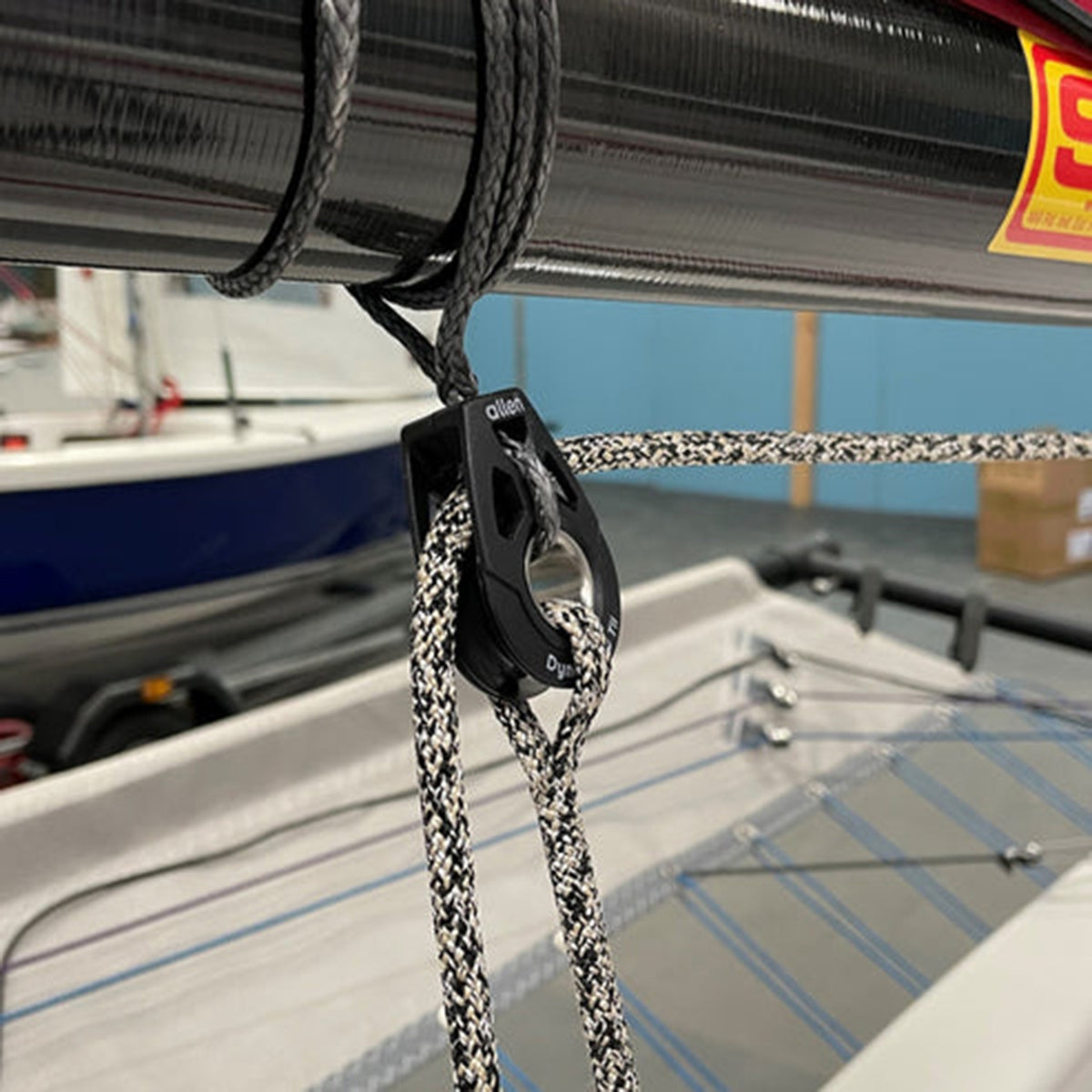

Fitting Guidance: For maximum strength, the attachment line must be fed around the central axle and through the head of the block. Where possible, use a crossed or through-threaded attachment method to keep the load pulling the side cheeks together. When using a Tii-Shackle, crossed attachments are recommended. Non-crossed attachments should only be used in low-load applications.

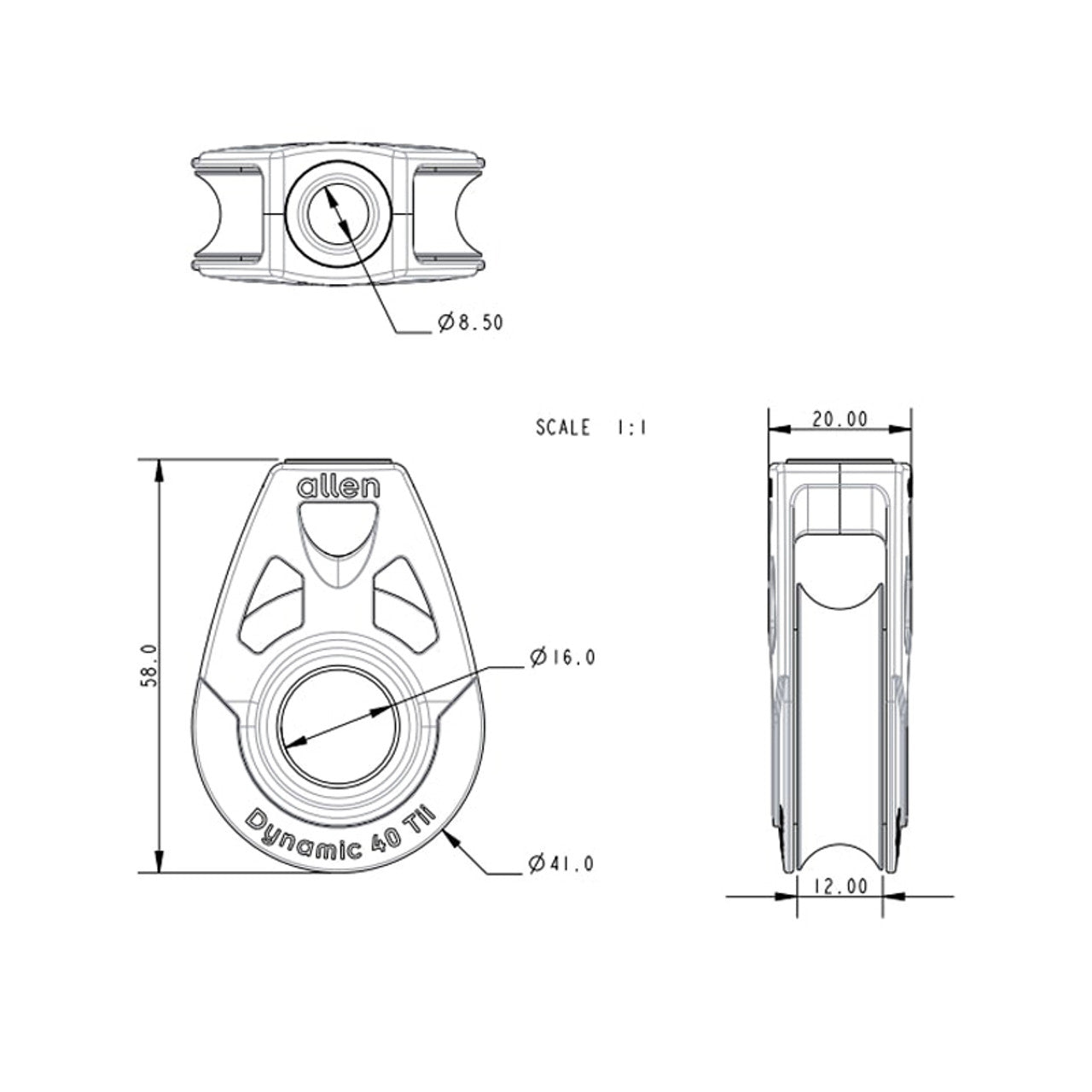

Technical Description
| Maximum Line Diameter | 10 mm |
| Breaking Load | 800 kg |
| Maximum Working Load | 180 kg |
| Length | 58 mm |
| Weight | 36 g |
| Accessories | Tii-On |
| Bearing Type | Dynamic |
| Configuration | Single |
| Sheave Diameter | 40 mm |
| Width | 40 mm |
