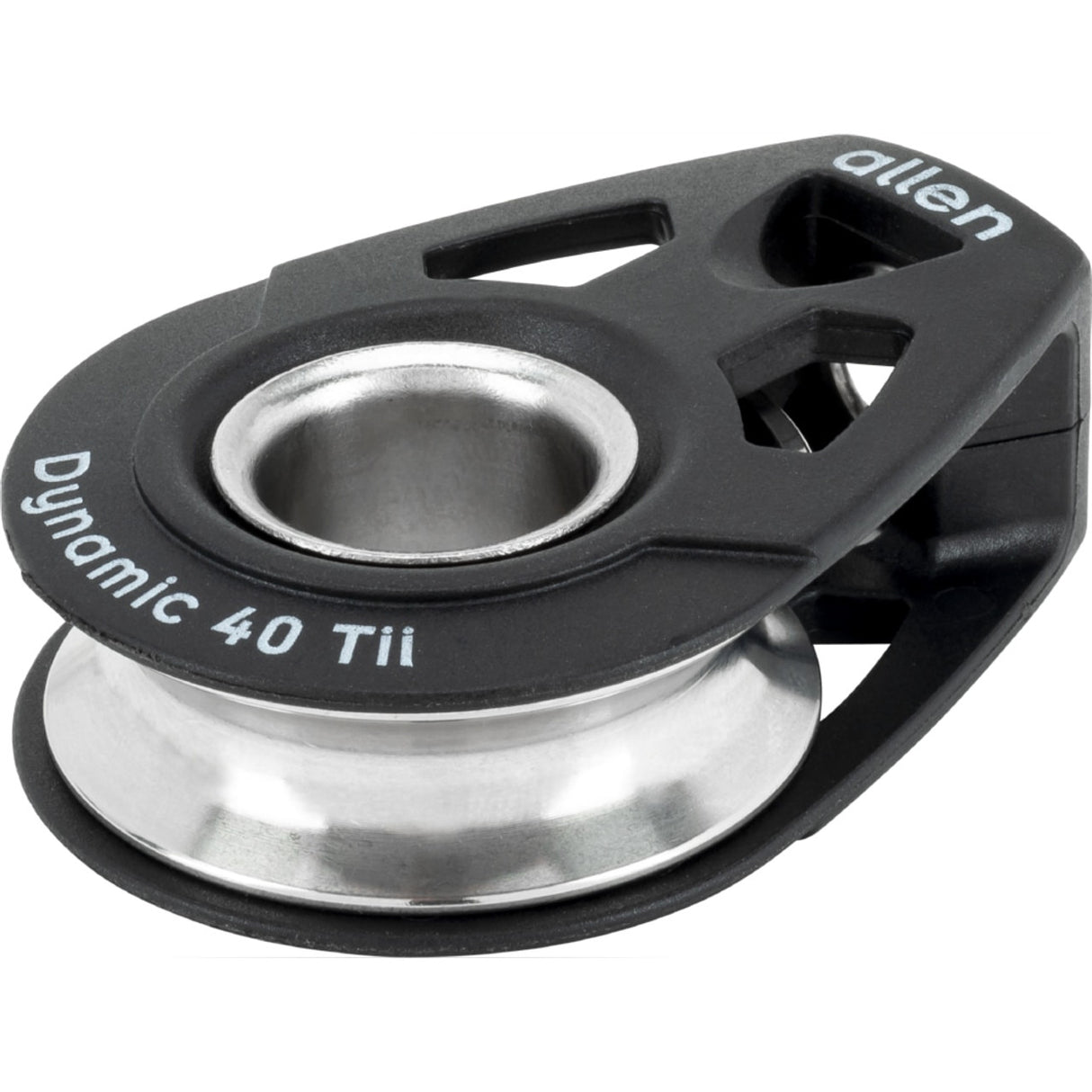

Allen Brothers 40mm Tie On Dynamic Block High Load

Allen Brothers 40mm Tie On Dynamic Block High Load

40mm Single Tii-On Block With High Load Sheave

The 40mm Single Tii-On Block With High Load Sheave is a versatile, high-performance pulley and a popular choice for dinghy mainsheet systems, as well as jib sheets, spinnaker sheets, and keelboat control lines. Designed for soft attachment systems, the stainless-steel head loop provides maximum strength, reliability, and minimal cheek separation under load while maintaining correct block orientation.

Fitted with a stainless-steel high load sheave, this version delivers faster rolling speeds, lower friction, and compatibility with both rope and wire.

Features:

• Ideal for mainsheet, jib sheet, spinnaker sheet, and keelboat control line applications
• Stainless-steel head loop for secure soft shackle attachment
• Minimises cheek separation under load and maintains correct orientation
• High Load Stainless-Steel Sheave for lower friction, faster rolling speeds, and improved durability
• Suitable for use with both rope and wire
• Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for smooth operation, superior load capacity, and long service life
• Low-friction, high-efficiency performance
• Integrated Becket via a large central rivet, providing a lightweight and rope-friendly attachment point for cascade systems
• Lightweight, durable construction designed for demanding marine environments

For maximum strength, the attachment line must be fed around the central axle and through the head of the block. Where possible, use a crossed or through-threaded attachment method to keep the load pulling the side cheeks together. When using a soft shackle, crossed attachments are recommended. Non-crossed attachments should only be used in low-load applications.

Technical Description
