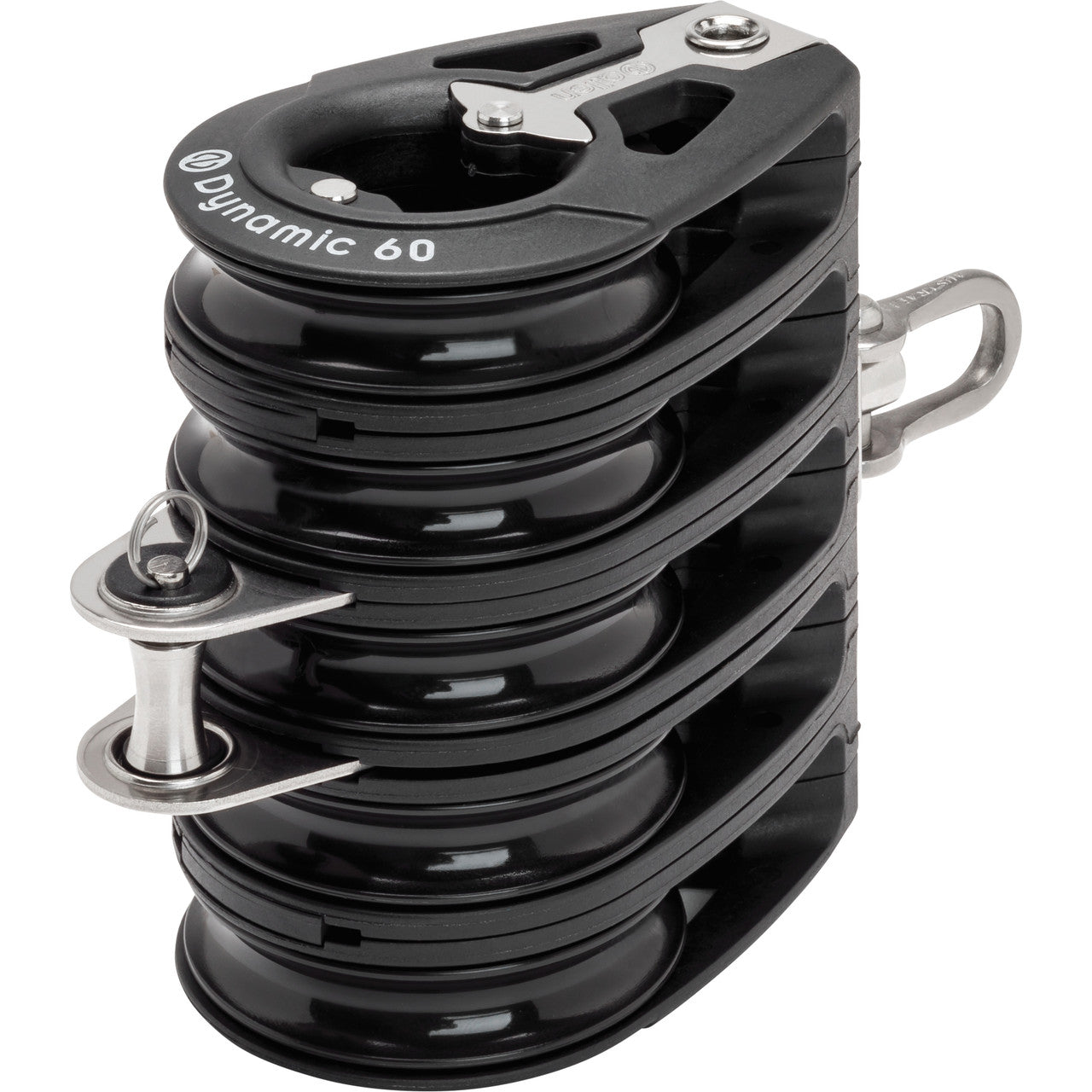

Allen Brothers 60mm Quint Block with Becket
Allen Brothers 60mm Quint Block with Becket
60mm Quint Dynamic Block with Becket.
Designed for use as a low-friction mainsheet system on sports catamarans, but suitable for many other applications, including backstay tensioning on keelboats.
For a complete 11:1 or 12:1 mainsheet system, you will need:
- A2169 - Pro-Ratchet 60mm Quint Block.
- A20401S - 40mm Dynamic Single Block With Strap.
Bearings:
Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Swivel Lock:
The A2069B comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
Becket:
This pulley features a central becket between the sheaves. The becket can be removed by undoing the split ring. This allows for easy termination of a spliced rope or the addition of another block to increase the purchase system.
Technical Description
| Bearing Type | Dynamic |
| Configuration | Quint |
| Length | 150 mm |
| Maximum Line Diameter | 12 mm |
| Breaking Load | 1250 kg |
| Maximum Working Load | 600 kg |
| Sheave Diameter | 60 mm |
| Pin Size | 6 mm |
| Weight | 553 g |
