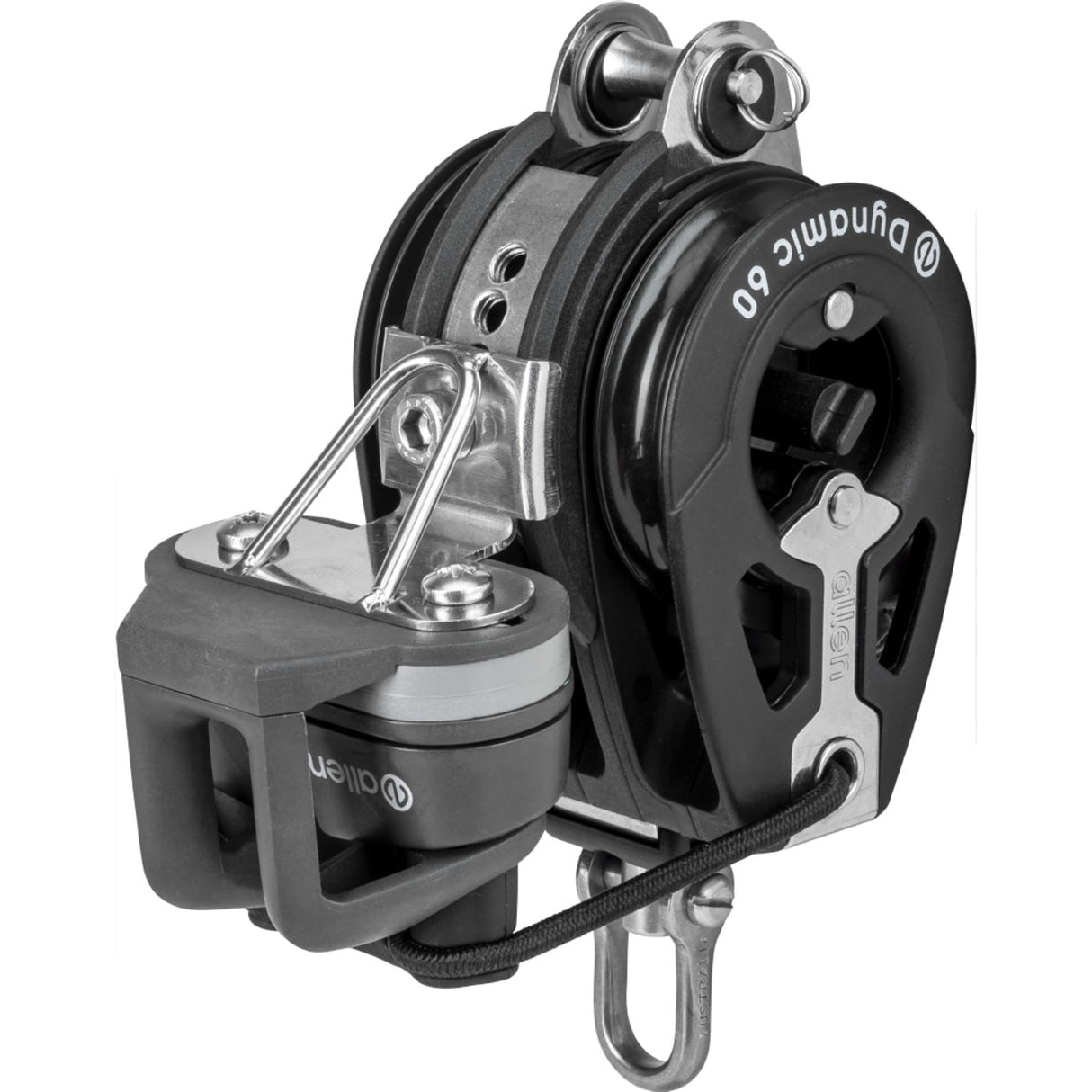

Allen Brothers D60 Triple Switchable Ratchet/Beck/Cleat
Allen Brothers D60 Triple Switchable Ratchet/Beck/Cleat
60mm Triple With Switchable Ratchet & Adjustable Cleat.
Pro-Ratchet 60 Triple Block with Becket and Cleat
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 60mm triple is a great choice for systems which require a larger purchase system with minimal friction.
Switchable Ratchet In the middle of the block is a switch that can be used, even under load, to turn the ratchet mechanism on or off, giving you more control and feel of your control system.Anti-Snag The block also features an anti-snag elastic to stop shets from getting wrapped around the cleat arm.
Adjustable Cam Cleat Arm The cam cleat angle can be adjusted by undoing the bolt and sliding the cam cleat on the track up or down. Re-tighten the bolt into one of the new location holes to keep the cleat arm in position.
Bearings Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Swivel Lock The A2068 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
Becket The becket is removable for customisation of purchase systems.
Technical Description
| Sheave Diameter | 60 mm |
| Maximum Line Diameter | 12 mm |
| Pin Size | 5 mm |
| Breaking Load | 1250 kg |
| Maximum Working Load | 600 kg |
| Length | 145 mm |
| Weight | 535 g |
| Accessories | Becket, Cleat, Swivel |
| Configuration | Triple |
| Mechanism | Switchable |
